- Page 1 Lavalier Microphone Product Manual English...
- Page 2 Foreword Thank you for purchasing the Aputure A.lav. Aputure A.lav is a professional omnidirectional lavalier microphone, it can be used with mobile, recorder and other equipment for recording. For having at frequency response, good signal to noise ratio, A.lav gives you a better sound.
- Page 3 Item check list Before starting, please check that all the following items have been included with Aputure A.Lav. If anything is missing, contact your dealer immediately. Lavalier Charge adapter cable Cable winder...

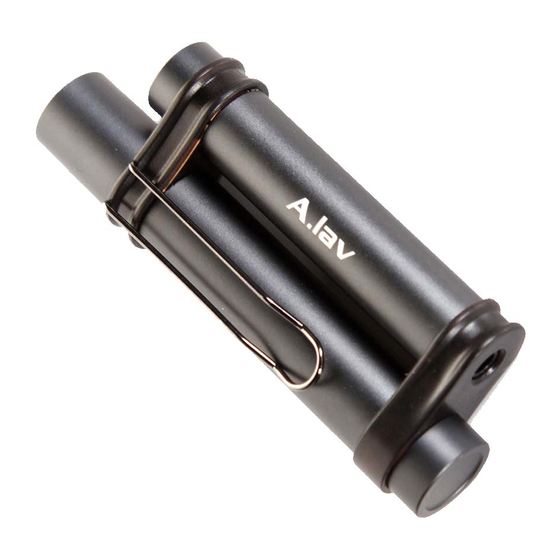

- Page 4 Nomenclature 1. Microphone control module Audio output Audio input Fixed middle cover Indicator light Steel wire clip Fixed bottom cover Charge & monitor port 2. Lavalier Lav-clip Windscreen 1. Charging Charge the product by connecting the 5V/1A( including higher current ) DC adapter (with 5PIN Micro USB, sold separately) through the charge adapter cable(red light indicates charging , the red light goes o when fully charged).
- Page 5 2. Lavalier connection Insert the lavalier plug into the audio input port of microphone control module, and the green light indicates ON. 3. Connect recording equipment for recording You can use di erent recording adapter cable to connect di erent recording equipment for recording.
- Page 6 5. The use of windscreen and windshield The A.lav comes with a windscreen and a windshield to eliminate the noise caused by wind or plosives while still capturing audio. 6. The use of steel wire clip When in use, the steel wire clip can be xed on the belt, clothes and so on.
-
Page 7: Frequency Response
Specifications 1. Frequency response 1000 10000 20000 2. Polar pattern dB rel.1V/Pa... - Page 8 Huawei and Sony are trademarks or registered trademarks of Huawei and Sony in China or other countries. All other corporate and product names and trademarks mentioned in this manual are the property of their respective owners. Detailed product manual for A.Lav can be found on the movie solution page on www.aputure.com .
