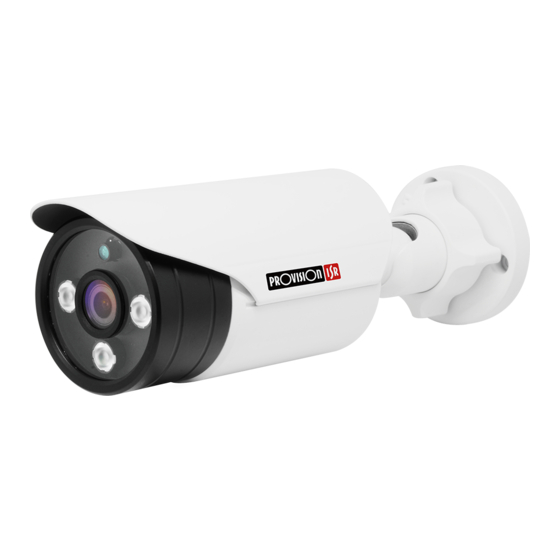

Summary of Contents for Provision ISR DI-380AHD36
-
Page 1: User Manual
USER MANUAL Eco-AHD Series Pro-AHD Series... -
Page 2: Table Of Contents
Contents CAUTIONS Product Introduction Production Instruction Product Feature Menu Instruction Product Installation Note Installation Tools and Information Installation Method Connection Specification... -
Page 3: Cautions
6. In order to make the camera work smoothly and 1 CAUTIONS obtain asatisfactory image, the power cord and video connection can not be too long, otherwise the 1. To reduce the risk of electric shock, do not open increase of line loss will lead to the inadequate the machine and maintain by yourself, please consult magnitude of the operating voltage of the camera or a professional service person. -
Page 4: Product Introduction
2 Product Introduction 3 Menu Instruction 2.1 Production Instruction Press "MENU" button to enter the main MENU, press "UP" and "DOWN" selection menu, press "LEFT" and PROVISION-ISR’s new series of cameras are "RIGHT" choice or set the corresponding function, to adopted CMOS image sensor with high performance, enter submenu please press "MENU"... -
Page 5: Note
4. The installation and maintenance of this product 3. Mounting the camera should be professional, please do not in any way to remove or modify the equipment; can only use the a. Dome Camera required accessories of manufacturers. Problems caused by unauthorized repair are at your own risk. Adjust the lens position and make it aim at the monitoring points and present a clear picture, 4.2 Installation Tools and Information... -
Page 6: Connection
4.4 Connection Connection as show in the figure below... -
Page 8: Specification
5 Specifications: PRO-AHD camera (720P) DI-380AHD36 / DI-380AHDVF / DAI-380AHDVF I3-380AHD36 / I4-380AHDVF / BX-382AHD Model DI-380AHD36 DI-380AHDVF DAI-380AHDVF I3-380AHD36 I4-380AHDVF BX-382AHD Image Sensor 1/3" 1.3MP Sony Sensor Effective Pixels 1280(H)×960(V) Scanning System Progressive Resolution Digital:1280×960P, Analog:960H Min. Illumination 0.01Lux / (0Lux IR On) 0.01Lux... - Page 9 PRO-AHD camera (1080P) DI-390AHD36 / DI-390AHDVF I3-390AHD36 / I4-390AHDVF Model DI-390AHD36 DI-390AHDVF I3-390AHD36 I4-390AHDVF Image Sensor 1/3" 2MP Sony Sensor Effective Pixels 1984(H)×1225(V) Scanning System Progressive Resolution Digital:1920×1080P, Analog:960H Min. Illumination 0.01Lux / (0Lux IR On) Day & Night EXT, Color, B&W, AUTO 4 Array LED (40m) IR LED 2 Array LED (20m)
- Page 10 ECO-AHD camera (720P) DI-380AHDE36 / DI-380AHDEVF I1-380AHDE36 / I3-380AHDE36 / I4-380AHDEVF Model DI-380AHDE36 DI-380AHDEVF I1-380AHDE36 I3-380AHDE36 I4-380AHDEVF Image Sensor 1/3" 1MP Sensor Effective Pixels 1280(H)×720(V) Scanning System Progressive Resolution Digital:1280×720P, Analog:960H Min. Illumination 0.1Lux / (0Lux IR On) Day & Night EXT, COLOR, B&W, AUTO IR LED 36 LED (25m)
