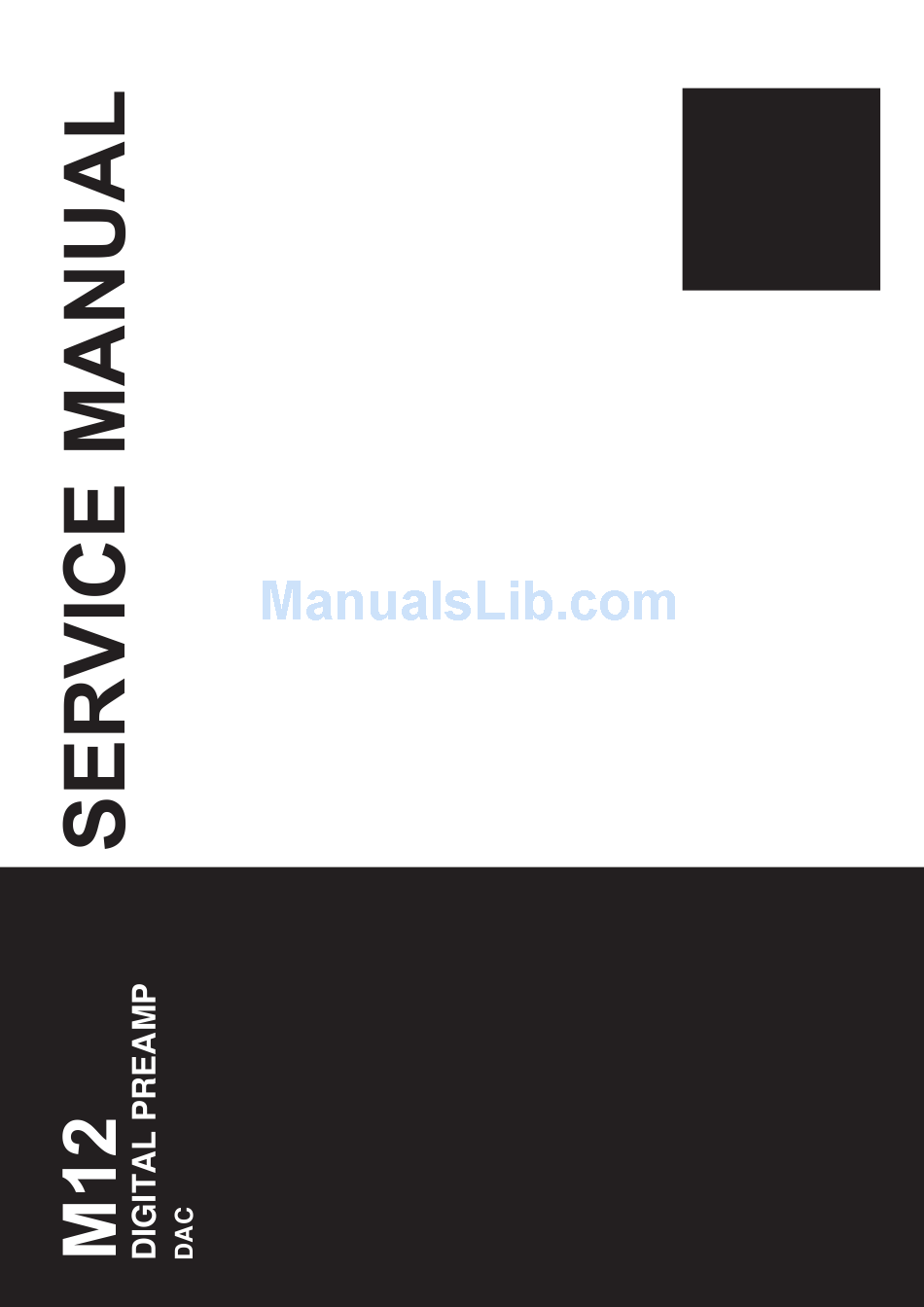

  • Page 1 DIGITAL PREAMP...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS DESCRIPTION P A G E SERVICE CAUTION…………………………………………………………..3-4 SPECIFICATIONS…………………………………………………………..5 WIRING DIAGRAM……………………………………………………………..6 BLOCK DIAGRAM…………………………………………………….. …..7-9 TROUBLE SHOOTING A GUIDE…………………........10 TROUBLE SHOOTING B GUIDE…………………........11 ………………………………………………..…..12-28 8 CIRCUIT DIAGRAMS PCB LAYOUT………………………………………………………………..29-40 ELECTRICAL PARTS LIST…………………………………………..41-67 EXPLODED VIEW…………………………………………………………..68 EXPLODED VIEW PARTS LIST……………………………………………..69 PACKING ACCESSORY SECTION………………………………………..70...

  • Page 3: Safety Checks

    PRODUCT SAFETY SERVICING GUIDELINES FOR AUDIO PRODUCTS CAUTION : DO NOT ATTEMPT TO MODIFY THIS 5. NO LEAD OR COMPONENT SHOULD TOUCH A PRODUCT IN ANY WAY, NEVER PERFORM CUSTOM- RECIVING TUBE OR A RESISTOR RATED AT 1 WATT IZED INSTALLATIONS WITHOUT MANUFACTURER’S OR MORE.
  • Page 4 SERVICING PRECAUTIONS CAUTION Before servicing the Stereo amplifier covered by Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged this service data and its supplements and addends, read and follow the SAFETY PRECAUTIONS. NOTE: if unforeseen easily by static electricity. Such components commonly are circumstances create conflict between the following servicing called Electrostatically Sensitive (ES) Devices.

  • Page 5: Specifications

    * Gross dimensions include feet, extended buttons and rear panel terminals. ** Non-metric measurements are approximate. NAD Electronics will not assume any liability for errors being made by retailers, custom installers, cabinet makers, or other end users based on information contained in this document.

  • Page 6: Wiring Diagram

    Wiring diagram...

  • Page 7: Block Diagram

    Block diagram ANTENNA BTM511 ATSAM3N00A Type B COAX 1 SPDIF HDMI IN 3 XMOS USB 2 .0 MINI USB COAX 2 TM4C1230H 6PM XS1-L1 ADC BUF AK4118A 74LV244 NE5532 HDMI IN 2 IIS switcher Applic atio ns OPTO1 BAL BU A DC PCM1804 Type A OP A2134...
  • Page 8 AL4118A MDC_DIO BOARD AVSS AVD D X'tal Clock Oscillator 8 to 3 Recovery Clo ck MCKO1 Generato r MCKO2 Input Selector LRCK DAIF Audio BICK Deco der SDTO DAUX PD N DVDD Error & CCLK Q-subco de DVSS AC-3/M PEG μP I/F STATUS CDTO...
  • Page 9 XS1-L01A-TQ128 USB XMOS BOARD X0D00 X0D01 X0D02 Thread 0 X0D03 X0D08 X0D09 X0D04 X0D05 X0D06 X0D07 X0D10 Thread 1 X0D11 X0D12 X0D13 X0D14 X0D15 X0D20 X0D21 Thread 2 X0D16 X0D17 X0D18 X0D19 X0D22 X0D23 X0D24 X0D25 Thread 3 X0D26 X0D27 X0D32 X0D33 X0D28...

  • Page 10: Trouble Shooting A Guide

    Check U9002 U9003 U9004 U9006 SPI signal to FPP Connect USB cable to computer Check U3058 correct? Change FPP board Check U400 U401 Check J7003 Computer found hardw are and M12 LCD Display sample rate Check U3071 U3060 Check driver on computer...

  • Page 11: Trouble Shooting B Guide

    TROUBLESHOOTING B GUIDE Check U1049 U1047 U1048 U1091 Mute relay open +/-15V 3V3Z C3V3 Check U1043 U1044 U1045 U1041 After 5-8S? C1V8 1V8 Correct? Check U1038 U1039 U1040 U1042 Check IIS signal to U1002 MCLK correct? SPI to MCU Correct? Check U1002 Check IIS buffer Check Q1018 mute circuit...
  • Page 12 1.AUDIO BOARD (2/4) L1000 C1000 BMB2A0300AN1 R1V8 R1V8 10nF X1000 C1001 C1002 C1003 C1004 C1005 C1006 C1007 C1008 C1388 C1389 C1390 C1391 C1392 C1393 C1394 C1395 C1009 DGND 12pF DGND C1010 12pF CH3_REF0a MB_MJ CH4_REF0a DGND DGND CH3_REF1a CH4_REF1a C1011 C1012 C1013 C1014...
  • Page 13 1.AUDIO BOARD (3/4) L1003 L1017 L1018 C1100 C1101 C1111 3V3Z 3V3Z 3V3Z U1031 U1032 U1037 742792662(WE) 742792662(WE) 742792662(WE) NC7WV17 NC7WV17 NC7WV17 R10 3 5 R10 3 7 R10 3 8 IIS CLKZ0 IIS CLK Z0a IIS CLK Z1 IIS CLK Z1a IIS CLK Z2 IIS CLK Z2a 4 7 R...
  • Page 14 1.AUDIO BOARD (4/4) R1153 3k32 1000P P SA C1270 R1156 R1157 K1005A 300R R1176 R1200 SE L C1271 R1198 K1001B +15VAL C1272 470R HFD31/5 6N8 PSA 10N NPO C1304 R1160 C1273 J1013 AGND 100P R1204 3K32 AGND AGND HFD31/5 R1162 AGND 100P C1275...
  • Page 15 2.MDC BOARD (1/3) C3000 DGND 220N U3001 MCLK M0a R3001 C3001 H3001 H3000 H3002 L3002 C3029 DGND 3V 3D DGND MCLK M1a R3002 742792662(W E) DGND C3028 DGND DGND NC7WV17 5C/W or bigger 5C/W or bigger 5C/W or bigger C3013 C3027 C3262 U3003...
  • Page 16 2.MDC BOARD (2/3) C3102 3V 3S U3052 V dd DGND 3V 3S R3095 100N 3V 3S 4.7K 3V 3S R3096 4.7K V ss 5V 3D 24LC64 C3103 C3104 J3001 S TBY a 10U/10V 10U/10V Q3007 DTC114EKA MnMOS I DGND DGND MnMOSI R3098 DGND...
  • Page 17 2.MDC BOARD (3/3) R3174 R3173 DGND DGND R3175 R3176 R3178 f=500KHz R3177 f=5 00K Hz 953R 953R DGND 9K53 DGND DGND DGND U3062 U3063 3V3S 5V S TPS 5450 TPS5430 D3008 C3146 C3147 3V3S 5V S 14VDET ss12 R3179 R3180 L3015 V BUS_ON 14V_EN...
  • Page 18 3.MDC DIGTAL IO BOARD OP4000 R4014 3V3A 4 R7 C4000 DATA 10 0 R 3V3C dgnd R4016 100N( NC) U4000 R4000 C4017 GP1FRX C4018 3V3C dgnd 3V3D CON4000 100n R4002 NC7WZ14(NC) L4002 DGND 742792662 742792662(WE) L4000 12V5a OP4001 3V3A 3V3D 3V3C DGND DGND...
  • Page 19 4.232_TRIG BOARD C9300 22u/6.3v R93 00 C9301 10RJ DGND 100n D9300 U9300 R9301 120R DGND 1SS352 R93 02 R9303 120R 2K2J NC7WZ17 DGND MGND C93 02 D930 3 R9306 3V 3T C93 03 C9304 R93 07 R93 08 47KJ TPG9300 100n input1 47KJ...
  • Page 20 5. BOOTLOAD BOARD & ENCODER BOARD V O LUM E ENCO DE R BOOTLOAD R9001 R9002 GNDB GNDB J9002 S9001 C9000 J9000 10u/ 10v D9000 VBUS 1SS 352 D9001 1SS 352 R9000 C9001 C9002 ENCODE 100n 100n C9004 Header 4 C9003 10u/ 10v GNDE...
  • Page 21 7.FPP BOARD (1/2) J9001 ENCVb ENCVa 3V3F Heade CON9002 U9001 TL1963A -33K TTR L9001 5V3F R9008 5VSF R9017 POWER_ON C9005 C9008 C9009 C9010 C9006 C9007 5V3F 330uF/6.3V 100uF/10V 10UF 100nF 100nF 10UF 5V3F J9004 C9011 10U/10V F_MOSI F_STB U9002 NC7WZ17 Q9000 R9003 F_CLK...
  • Page 22 7.FPP BOARD (2/2) D[0..15] A[0..17] CON-FPC 50P-40N-TOP TP-R ND-60 S D[0..15] S D0 LCD_EN TP_RES ET S D1 S D2 100nF TP_INT S D3 10uF 100nF S D4 S D5 PIC32MX695F512L S D6 IC-IS61WV25616BLL-10TL 4.7K 4.7K S D7 S DA S D8 LCD_DISP S CK...
  • Page 23 8.USB XMOS BOARD (1/2) TP7000 TESTPAD L7000 R7000 VCC3V3A1 BLM18HE152SN1 TP7001 SDRAM 256 Mbit s TESTPAD L7001 R7001 L7002 10uH VDD3V3ANA U7000 BLM18HE152SN1 VCC5V C7000 TP7002 220U/ 6.3 V H CN TP7003 TESTPAD 12V5a TESTPAD C7001 U7001 R7002 L7003 VCC5V LP38500-3V3 10K5 1 % 100nZ...
  • Page 24 8.USB XMOS BOARD (2/2) U400C RESERVED DGND MODE0 MODE1 MODE2 MODE3 DEBUG DEBUG S RS T_N RST_N U401 L400 ULPI_DATA0 3V3DU VBAT DATA0 ULPI_DATA1 C400 742792662(WE) VDD33 DATA1 ULPI_DATA2 TRST_N C401 100N VDDIO DATA2 TRST_N 22U/ 6V3 ULPI_DATA3 DATA3 DGNDDGND ULPI_DATA4 USB2.0 audio controler 1V8DU...
  • Page 25 9. PSU BOARD S TB R105 OP101 R102 C106 100P PC817 CY101 D103 1nF/AC250V TVS SMAJ200A T101 S S36 60V/3A C105 D117 L101 22uF/400V CD263 D102 5.6VD Comment: 3.3UH U101 MURS120 BYG2 J 600V/1 5A C108 C109 R104 KA78R15 D101 470uF/16V 1000uF/10V GND2...
  • Page 26 10. ANA BOARD D6000 D6029 D6023 D6008 D6011 S1GM4 5V A U6023 R6000 L6000 3V3D 7V R BZT52C2V4 BAV21W-V BZT52C2V4 BAV21W-V D6024 D6025 D6017 D6016 C6002 LP2985 U6000 10U/ 10V C6182 BZT52C2V4 BZT52C2V4 ASM1117- 5 BAV21W-V BAV21W-V C6004 100n 100n C6005 AGND 10u/ 25...
  • Page 27 11. PHONO BOARD +12VM Q9500 2SC2240 R9500 R9501 R9502 C9500 470U/10V R9503 C9501 100N X 7R Q9501 MGND 2SA970 C9504 L9500 C9503 Q9502 2SC2240 100P 100U/10V C9544 C9594 U9500A C9505 L9501 Q9503 100N C L23B 1N NPO R9505 R9506 2SC2240 C9506 3.7mH R9507...
  • Page 28 12. HTRM2 BOARD RESET RESET VCC_3V3 H101 JTAG1 VCC_3V3 6V_BATTERY R114 R115 100K 2.2M R113 R129 C107 C108 100N 100N VCC_3V3 R134 100K VCC_3V3 CUSTOM TUNER CAB/SAT C109 vibroswitch J100 D137 1N4148 MATRIX 00 +VBUS 100N R100 vibroswitch R101 MACRO D136 1N4148 SHIELD MATRIX 01...
  • Page 29 PCB LAYOUT 1..AUDIO BOARD Top Layer Bottom Layer...
  • Page 30 2. MDC BOARD Top Layer Bottom Layer...
  • Page 31 3. MDC DIGTAL IO BOARD Top Layer Bottom Layer...
  • Page 32 4. 232_TRIG BOARD Top Layer Bottom Layer...
  • Page 33 5. BOOTLOAD BOARD Top Layer Bottom Layer 6. ENCODER BOARD Top Layer Bottom Layer...
  • Page 34 7. TOUCH KEY BOARD Top Layer Bottom Layer 8. LED BOARD Top Layer Bottom Layer...
  • Page 35 9. FPP BOARD Top Layer Bottom Layer...
  • Page 36 10. USB XMOS BOARD Top Layer Bottom Layer...
  • Page 37 11. PSU BOARD Top Layer Bottom Layer...
  • Page 38 12. ANA BOARD Top Layer Bottom Layer...
  • Page 39 13. PHONO BOARD Top Layer Bottom Layer...
  • Page 40 14. HTRM2 BOARD Top Layer Bottom Layer...

  • Page 41: Electrical Parts List

    ELECTRICAL PARTS LIST PCB-1: AUDIO BOARD 00-19200-10 M12 AH Version 00-19200-20 M12 C Version VM1.1,FR- A16-19201-22 Audio Board PCB 4,1.6mm,4Layers,1oz,,TG130,155× 183.1mm DIODES D1005, D1009, D1022, D1023, D1024, 33-40054-02 Schottky Rectifier Diode BAT54J i f i t D1010, D1011,D1003, D1004, D1006,...
  • Page 42 R1035, R1037, R1038, R1040, R1041, R1043, R1045, R1047, R1058, R1059, 47Ÿ,0603,1/10W,±1%,RC0603FR- R1060, R1072, R1079, R1097, R1098, 07-94709-00 Chip Resistor 0747RLT R1099, R1100, R1101, R1102, R1103, R1104, R1105, R1106, R1152 R1107, R1108, R1109, R1110, 07-90750-00 Chip Resistor 75Ÿ,0603,1/10W,±5%,RC0603JR-0775RL R1023, R1044, R1048, R1056, R1117, 100Ÿ,0603,1/10W,±1%,RC0603FR- 07-91000-00 Chip Resistor...
  • Page 43 R1161, R1169, R1182, R1199, R1226, 07-91004-01 Chip Resistor 1MŸ,0805,1/8W,±1%,RC0805FR-071ML R1233, R1246, R1260 MMF204FRE0R,0Ÿ,0.4W,± t s i 1%,MMF204FRE0R MMF204FRE0R33,0.33Ÿ,0.4W,± R1170, R1189, R1234, R1255 07-93307-92 Chip Resistor 1%,MMF204FRE0R33 MMF204FRE1R/MMA02040C1008FB300,1 Ÿ,1/4W,±1% R1172, R1181, R1236, R1245 07-97508-92 Chip Resistor MMF204FRE7R5,7.5Ÿ,0.4W,±1% Ÿ,1/4W,±1% R1206, R1211, R1213, R1216 07-90000-92 Chip Resistor MMF204FRE0R,0Ÿ,0.4W,±1%...
  • Page 44 C1001, C1002, C1003, C1004, C1005, C1006, C1007, C1008, C1011, C1012, C1013, C1014, C1015, C1016, C1017, C1018, C1019, C1020, C1021, C1022, C1024, C1025, C1026, C1027, C1028, C1029, C1030, C1031, C1032, C1033, C1034, C1035, C1086, C1087, C1088, OR 26-10511-10 Ceramic Capacitor SMD 0603, 1uF, 16V, X5R, ±10% C1089, C1090, C1091, C1092, C1093, C1094, C1103, C1104, C1105, C1106,...
  • Page 45 67-114001-0 PCB Terminal HS40-360.1-B009V1-M002 PCB-2: MDC BOARD 01-19202-00 MDC BOARD 02-19202-00 MDC BOARD SMT A16-19202-22 M12 MDC BOARD PCB VM2.0,FR-4,1.6mm,6Layers,1oz,TG150 U3047, U3049, U3051, U3086, U3089, 03-00595-05 Shift Register SN74HC595PW U3091 U3014, U3021, U3028, U3032, U3033, U3038, U3042, U3048, U3050, U3075,...
  • Page 46 PIC32 MCUs PIC32MX460F512L-80I/PT (Microcontrollers) 512KB U3081, U3088, U3090 03-33257-01 IC 4-BIT FET MUX/DEMUX SN74CB3Q3257DBQR U3056, U3060, U3070, U3071, U3072 03-03000-00 USB SWITCH TS3USB3000RSER U3022, U3023, U3024, U3044, 03-07125-01 BUFFER NC7SZ125P5X U3045, U3046 U3015, U3020, U3025, U3036, U3037, U3040, U3073, U3074, 03-07157-02 2:1 multiplexer NC7SV157P6X...
  • Page 47 C3048, C3050, C3062, C3085, C3087, C3089, C3123, C3212, C3214, C3215, 26-22351-00 Ceramic Chip Capacitor 22nK,50V,0603,X7R C3256, C3257, C3258, C3259, C3260, C3261 C3006, C3032, C3033, C3051, C3052, C3054, C3055, C3056, C3058, C3059,C3061, C3068, C3071, C3076, C3079, C3080, C3091, C3092, C3093, C3094, C3102, C3107, C3108, C3109, 26-10411-00 Ceramic Chip Capacitor...
  • Page 48 R3023, R3124, R3129, R3130, R3145, R3146, R3222, R3237, R3245, R3246, R3247, R3248, R3249, R3250, R3256, R3257, R3258, R3259, R3260, R3261, R3264, R3265, R3266, R3267, R3268, R3269, R3272, R3294, R3295, R3297, 07-90000-00 Chip Resistor R3298, R3301, R3302, R3328, R3329, R3330, R3077, R3078, R3273, R3277, R3278, R3280, R3282, R3284, R3286, R3287, R3288, R3289, R3291, R3292, R3160, R3165, R3167, R3168, R3338,...
  • Page 49 R3084, R3085, R3087, R3092, R3093, R3094, R3296, R3300, R3303, R3304, 07-90101-10 Chip Resistor NET 100Ÿ, ±5% R0603X4 R3306, R3307, R3309, R3310 R3321, R3322, R3323, R3324, 07-91000-01 Chip Resistor 100Ÿ,0805,1/8W,±1%,RC0805FR-07100RL R3326, R3327 t s i Ÿ,0805,1/8W,±5%,RC0805JR-071KL 4.75KŸ,0805,1/8W,±1%,RC0805FR- R3202, R3203, R3204 07-94751-01 Chip Resistor 074K75L R3179, R3180, R3185, R3186,...
  • Page 50 VM1.0,FR-4,1.6mm,2Layers,1oz, A16-19203-21 DIO BOARD PCB TG130 DIODES c t i Dual Diffferential Line SN75157D Receiver LOW VOLTAGE CMOS OCTAL BUS BUFFER (3- STATE) WITH 5V SN74AHC244PW TOLERANT INPUTS AND OUTPUTS dual schmitt, high z when NC7WV17P6X power off RESISTORS t s i Ÿ,0603,1/10W,±5%,RC0603JR-074R7L t s i Ÿ,0603,1/10W,±1%,RC0603FR-0710RL...
  • Page 51 i r r i r r TRANSFORMER T4000, T4001, T4002 22-22133-00 Transformer PE-65612NL CONNECTORS OP4000, OP4001(GP1FRX) 17-06001-07 Optical Receive DLR2180/25M 76-230002-0 Insulation Pad PC UL94V-0, 168x80.5mm, T=0.4mm 85-127002-0 RIVET-PLAST RIVET PLASTIC SNAP ITW #254 61-023208-0 Self Taping Screw BTB3X8 67-382003-0B Digital Audio Cover SECC-N5 T=1.2mm 80-382003-0...
  • Page 52 t s i Ÿ,0805,1/8W,±5% t s i Ÿ,0805,1/8W,±1%,RC0805FR-0715RL t s i Ÿ,0805,1/8W,±1%,RC0805FR-074K7L t s i Ÿ,0603,1/10W,±5%,RC0603JR-071KL 6.8KŸ,0603,1/10W,±1%,RC0603FR- t s i 076K8L t s i Ÿ,1206,1/4W,±5% INDUCTOR 742792662, 1000ohm@100MHz i r r Imax=600mA 742792096,1000ohm@100MHz, ±25%, i r r Imax=1000mA TRANSFORMER TRANSISTORS t s i CONNECTORS Pitch=2.0mm,2×7Pin,CNT-...
  • Page 53 VM1.0,FR-4,1.6mm,2Layers,1oz,TG130,51 A16-19207-21 TOUCH KEY Board PCB ×15mm four button capsense CY8CMBR2044-24LKXI controller RESISTOR R7006, R7007, R7008, R7009 07-90000-00 Chip Resistor 0Ÿ, 0603, ±5% 560Ÿ,0603,1/10W,±5%,RC0603JR- t s i 07560RL t s i Ÿ,0603,1/10W,±5%,RC0603JR-0710KL CAPACITOR t i c t i c ± , t i c CONNECTORS PH2.54, 2*2Pin,...
  • Page 54 t i c C1, C2, C3, C4, C6, C7, C8, C9, C10, C11, C14, C20, 26-10411-00 Ceramic Chip Capacitor 100nF,16V 0603, X7R,±10% C24, C30, C31, C33, C35, C9018, C9019, C9020, C9028 t i c t i c t i c ±...
  • Page 55 High-Speed USB 2.0 (480 Mbps) 1:2 TS3USB221ARSER Multiplexer/Demultiplexer Switch With Single Enable CMOS SINGLE VOLTAGE MX29LV800CBTI-70G 3V ONLY FLASH MEMORY Low Power, Low Dropout, SGM2019-1.8YN5G/TR RF - Linear Regulators DIODE D7006, D7007, D7008, D7009, D7010, 33-40352-01 Switch Diode 1SS355TE-17 D7011 Surface Mount Schottky SS14,1A 40V Barrier Rectifier...
  • Page 56 t i c 2.2uF,0603,6.3V,X5R,CC0603KRX5R5BB2 C7030, C7042, C7046 26-22560-10 Ceramic Chip Capacitor C7030, C7042, C7046 or 26-22560-00 Ceramic Chip Capacitor 2.2uF,0603,6.3V,X5R,06036D225KAT2A C7013, C7018, C7024, C7043, C7053 26-47560-00 Ceramic Chip Capacitor 4.7UF 6.3V X5R 0603 t i c t i c t i c t i c t i c t i c...
  • Page 57 t s i Ÿ,1206,1/4W,±1%,RC1206FR-0720KL t s i Ÿ×4, ±5%, 0603×4 R7024, R7038, R7041 07-90820-10 Chip Resistor NET 82Ÿ,0603X4,±5%,YC164-JR-0782RL R7013, R7026, R7046, R7134 07-90121-10 R Networks 120R,0603X4,1/10W,±1% CAPACITOR c i t t i c ± , c i t t i c ±...
  • Page 58 t s i Ÿ,0805,1/8W,±1%,RC0805FR-0747KL R101, R124, R136 07-90103-01 Chip Resistor 10KŸ,0805,1/8W,±5%,RC0805JR-0710KL R137, R138, R139 R102,R103,R105,R106 07-90102-01 Chip Resistor 1KŸ,0805,1/8W,±5%,RC0805JR-071KL R107,R108 R109 R104 t s i Ÿ,0805,1/8W,±5% R111 R112 R113 R114 07-90205-02 Chip Resistor 2MŸ,1206,1/4W,±5%,RC1206JR-072ML t s i Ÿ,0805,1/8W,±5%,RC0805JR-07300RL 3.3MŸ,0805,1/8W,±1%,RC0805FR- R117, R118, R119, R120, R125, R126 07-93304-01 Chip Resistor 073M3L...
  • Page 59 150uF,450V,±20%,105 ,LSG151M2W- c i t t i c A2530 1000uF,35V,±20%,105 ,RXJ102M1VBK- C139,C140 C141 C142,C143 06-10231-10 Alu Electrolytic Capacitor 1325P Interfernece Suppression MKP62,330nF,275VAC,±20% C121 C122 A25-33422-08 17.5*13.5*7.5mm Interfernece Suppression MPX,470nF,275VAC,X2,± 20%,Pitch=15mm,W18*H17*T8.5mm Hign Voltage Cermatic CT81-400VAC-08b-2E4-102M-YA Capacitor Interference Suppression MKP63-300VAC-222K Capacitor Metallized polystyrene Film MKP63, 1nF, 300V, ±20% Capacitor INDUCTOR...
  • Page 60 t f i t s i UHS Dual Inverter with NC7WZ14P6X Schmitt Trigger Inputs DIODE D6001, D6002, D6003, D6004 33-40054-00 Schottky Diode BAT54S, SOT23 D6005, D6006, D6014, D6015, D6018, 33-40352-01 Switch Diode 1SS352(TPH3,F),1SS355TE-17 D6019, D6020, D6021, D6022 c t i TRANSISTORS t s i t s i...
  • Page 61 CD281L,220uF,6.3V,20%,Pitch=2.5mm,D= c i t t i c 6.3mm c i t t i c ± , c i t t i c ± , c i t t i c CD263(X),10uF,16V,±20%,105 ,F2.5 Polypropylene Film C6056, C6063, C6066, C6079 25-22312-09 CBB11-100V-223J R5 Capacitor Metallized Polyester Film CL23B,2.2uF,63V,±...
  • Page 62 1.21KŸ,1206,1/4W,±1%,RC1206FR- R6019, R6047, R6053, R6071 07-91211-02 Chip resistor 071K21L R6027, R6033, R6039, R6054, R6058, 2.21KŸ,1206,1/4W,±1%,RC1206FR- 07-92211-02 Chip Resistor R6055 072K21L t s i Ÿ,0603X4,±5%,YC164-JR-0782RL R6122, R6123, R6129, R6134, R6159 07-90121-10 Chip Resistor Network 120Ÿ,0603x4,1/10W,±1% t s i Ÿ×4, ±5% 0603×4 3-Terminal Adjustable LM317T Regulator...
  • Page 63 Ÿ,1/4W,±1% Ÿ,1/4W,±1% R9501, R9523, R9529, R9551 07-92200-92 MELF Resistors MMF204FRE220R,220Ÿ,1/4W,±1% Ÿ,±1% Ÿ,±1% Ÿ,1/4W,±1% R9500, R9522, R9528, R9550 07-95900-92 MELF Resistors MMF204FRE590R,590Ÿ,1/4W,±1% Ÿ,1/4W,±1% Ÿ,1/4W,±1% Ÿ,1/4W,±1% R9504, R9518, R9532, R9546 07-94702-92 MELF Resistors MMF204FRE47K,47KŸ,1/4W,±1% R9510, R9511, R9538, R9539 07-96802-92 MELF Resistors MMF204FRE68KR, 68K,±1%,1/4W Ÿ,1/4W,±1% t s i Ÿ,0805,1/8W,±1%,RC0805FR-07330RL...
  • Page 64 OTHERS JA17-07103-04 AC Inlet 0717-1-P-Q c t i J23-08868-00 LCD Display UMSH-8868MD-3T 90-267001-0 Lens Film 3M 3K04,0.03mm,W=74mm ,L=200m AC CORD 3PINS 16A 250V LF L=6'7" LP-34 H05VV-F JA15-16250-00 AC Cord 3C LS- 60 3VTJ1&3VTJA, H05VV-F 3G 0.75mm2, or A15-86251-20 AC Cord L=2000mm, Black LP30B &...
  • Page 65 Touch Key Copper plate T2Y2 T=0.2mm 71-003002-0 GRD.Post Cap C160 HS4-C160-B009V1-M010 71-003001-1 GRD.Post Bolt 63-030410-0 Serrated Lock Washer PLASTIC Chromeplate, NAD logoS, silk-screen J71-355001-0A NAD Logo color:Pantone cool 6C 96-355001-0A Touch Key Cap Black glass, 18*6*2, silk-screen 85-151002-0 PCB Guide CG-500...
  • Page 66 820KŸ,0603,1/10W,±5%,RC0603JR- t s i 07820KL t s i Ÿ,0603,1/10W,±5%,RC0603JR-0782KL 47KŸ,0603,1/10W,±1%,RC0603FR- t s i 0747KL 680Ÿ,0603,1/10W,±1%,RC0603FR- t s i 07680RL t s i Ÿ,0603,1/10W,±5%,RC0603JR-0710KL t s i Ÿ,1206,1/4W,±1%,RC1206FR-07100RL CAPACITOR C100, C104, C105, C106, C107, C108, 26-10411-00 Ceramic Chip Capacitor 100nF,16V 0603, X7R C109, C110, C111, C114 t i c ±...
  • Page 67 84-005001-0 Nilon Cable Tie YJ-100 86-355001-0 Adhesive tape 3M 9448,T=0.1mm 86-051004-0 Adhesive Bonded Fabric 8×50×0.5 N79-382002-0 LED Board Foam EVA, 56x50mm, T=1mm EVA Foam, 162X15mm T=1mm PACKING 90-423001-2 Non-woven bag 88-382011-0A Shipping Box ID=565x515x264mm 88-382001-1A Carton Box ID=547×495 ×249mm 88-382002-1 Paper Corner 50*50*5mm,L=227mm 89-355901-0...

  • Page 69: Exploded View

    M12 EXPLODED VIEW PARTS LIST REF.NO. PART NO. DESCRIPTION Qty. REF.NO. PART NO. DESCRIPTION Qty. C002 J71-267002-0 Masters II Feet R012 01-19203-00 MDC-DIO Board C004 01-19208-00 PSU BOARD C005 75-049001-0 PCB Spacer C006 66-382002-0 Fascia Connect Bracket L T001 70-267007-1 Main Top Cover...
