Mr Handsfree Portable Power Charger User Manual

Portable Power Charger
USER'S MANUAL
GB NL RU
F D DK
--- QRG/PORTABLE POWER CHARGER
2600mAh Pure/01-14/V02 ---
PACKAGE CONTENTS
• Portable Power Charger
• Micro USB charging cable 50 cm
CHARGING THE PORTABLE POWER CHARGER
1. Connect the micro USB charging cable in the Portable Power Charger's IN port.
Option 1 (See illustration 1):
Connect the USB plug of the charging cable to your computer's USB port or another USB
2.0 compatible port.
Option 2 (See illustration 2):
Connect the USB plug of the charging cable to the USB port of the universal USB AC adapter
(not provided, optional). Plug the AC adapter into a wall socket.
2. The Portable Power Charger's LED indicator turns red to indicate that the battery is being
charged. The charger can be charged in ON or OFF position. Charging time is about 3-4
hours.
3. When the battery is fully charged, the LED indicator turns off. Disconnect the charger. The
Portable Power Charger is now ready for use.
OPERATION OF THE PORTABLE POWER CHARGER (See illustration 3)
Important! The Portable Power Charger must be fully charged before use.
1. Connect the USB plug of the micro USB cable to the 5V OUT port of the Portable Power Charger.
2. Connect the other side of the cable to your device, or use your own USB charging cable
(originally supplied with your device).
3. Connect your device.
4. Turn the Portable Power Charger ON by pressing the button.
5. The LED indicator turns blue, indicating that the Charger is charging your device.
Remarks:
• When the LED indicator turns OFF, the Charger needs to be recharged.
• When the Charger is not in use, it must be turned OFF. This prevents the charger from
discharging.
SAFETY INSTRUCTIONS
• The lithium-ion rechargeable battery used in this charging device may present a risk of fire or
chemical burn if mistreated. Do not disassemble, expose to heat above 100° C, or incinerate.
Misusing or incorrectly connecting the charging device may cause electric shock to users and
damage equipment. Read instructions carefully. The charging device may become warm and
may reach 50°C under extended high power operation. During operation, keep the charging
device away from materials that may be affected by these temperatures.
DECLARATION OF CONFORMITY
We, the undersigned
Company:
Address:
declare, that the following equipment:
Product Name:
Product Type:
Conforms with the following safety requirements of the directives 2004/108EC, and is guaranteed
by the CE-symbol.
Standards:
EN55022:2010, EN55024:2010
EN61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3:2008
• When used correctly, lithium-ion rechargeable batteries provide a safe and dependable
GB source of portable power. However, if they are misused or abused, this may result in leakage,
burns, fire or explosion/disassembly, causing personal injury or damage to other devices.
• Do not disassemble the charging device. There are no user-serviceable parts inside.
Incorrect reassembly may result in shock or fire hazard.
• Do not drop or subject the charging device to strong mechanical shock.
• Do not expose the charging device to moisture, water, rain, snow or spray.
• Do not insert any object into the ports or openings of the charging device.
• Do not operate the charging device if it has received a sharp blow, been dropped, or
otherwise been damaged in any way.
• Do not use in environments where the temperature is 40°C or higher.
• Keep out of reach of children.
• To reduce the risk of electric shock, unplug the charging device from any power source
before attempting any maintenance or clearing.
TECHNICAL DATA
Input: DC 5V – 500~800 mA
Output: DC 5V – 1A = 1000 mA
Capacity: Samsung 2600 mAh Li-ion high power 13 wH
DISPOSAL
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities. Contact your local government for information regarding the collection systems
available. If electrical appliances are disposed of in landfills or dumps, hazardous substances
can leak into the groundwater and get into the food chain, damaging your health and well-
being. When replacing old appliances with new ones, the retailer is legally obligated to take
back your old appliance for disposals at least free of charge.
CUSTOMER SUPPORT
For more information, technical questions and return requests concerning this product, you
should contact support@mrhandsfree.com.
GUARANTEE
Mr Handsfree is a registered trademark of TE-Group NV. The mr Handsfree brand stands for
superior product quality and outstanding customer service. That is why mr Handsfree warrants
this product against all defects in material and workmanship for a period of two (2) years from
the date of original purchase of the product. The conditions of this guarantee and the extent
of responsibility of mr Handsfree under this guarantee can be downloaded from our website:
www.mrhandsfree.com.
TE-GROUP nv
Kapelsestraat 61, 2950 Kapellen - BELGIUM

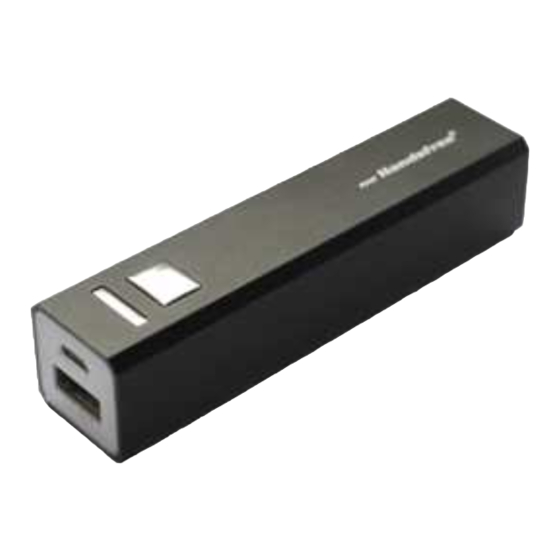

mr Handsfree Portable Power Charger
Portable Power Charger 2600 mAh
