Replacement Parts:
Part No.
Description
7724037
Foot, rubber
7751068
Switch, lid safety
7786061
Rotor, six-place, horizontal
7735049
Motor, 1/30 H.P., 115 V.A.C. permanent split capacitor
7729006
Capacitor, 4uF, 250V A.C.
7717051
Electronic timing and locking board
7751043
Circuit Breaker
7760002
Power cord
7714101
Pawl, latch, lid
7714103
Knob, latch, lid
7724071
Hinge, friction
7732018
Seal, lid gasket
7713031
Red Tube Holder, for 17 mm x 100 mm tubes
7713033
Green Tube Holder, for 17 mm x 75 mm Tubes
02-002-1-0011
Lid Assembly
03-0-0003-0068
Front Panel Label
Available Accessories:
1" Tube cushion
0.25" Tube cushion
p/n 1525
p/n 9150
Shield caps
0.5 to 1 mL
p/n 7713011
Tube Adapter
p/n 7713068
WARRANTY:
The Drucker Diagnostics warranties that this centrifuge is free from
defects in workmanship and parts for 2 years.
Made in the USA by
200 Shady Lane, Suite 170 • Philipsburg, PA 16866
Phone: 814-342-6205 or 814-692-7661 • Fax: 814-692-7662 • www.druckerdiagnostics.com
Protected by U.S. Patents #6,811,531, & #D718463
Other Patents Pending
13 x 75 mm Insert
13 x 100 mm Insert
p/n 7713064
p/n 7713066
1.5 to 2 mL
SmartView™ Platform
p/n 00-179-009-001
Tube Adapter
p/n 7713065
Programmable
Run Time is Factory
10
Preset to
MINUTES
See Page 5
Operator's Manual

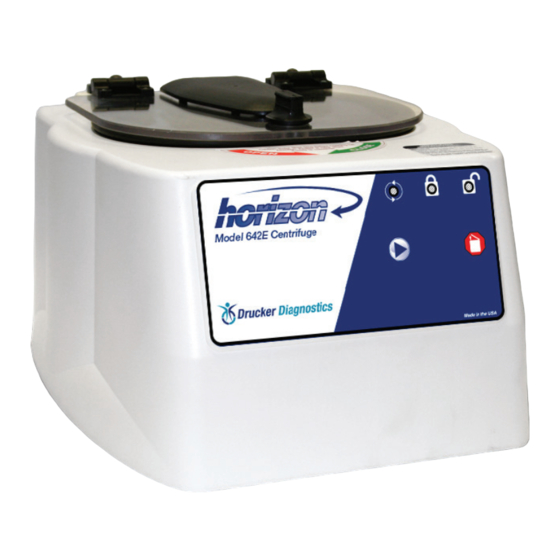

Model 642E • Laboratory Centrifuge
Rev. I
P/N 03-0-0002-0039
Advertisement
Table of Contents
Related Manuals for Drucker 642E
Summary of Contents for Drucker 642E
- Page 1 Tube Adapter p/n 7713068 p/n 7713065 WARRANTY: The Drucker Diagnostics warranties that this centrifuge is free from defects in workmanship and parts for 2 years. Made in the USA by Operator’s Manual 200 Shady Lane, Suite 170 • Philipsburg, PA 16866 Model 642E •...
-
Page 2: Table Of Contents
Intended Use ........pg. 2 taken when using this centrifuge if handling Lid Safety Switch: The Model 642E lid is secured to the top of the cabinet by Supplied Equipment ......pg. 2 substances that are known to be toxic, a latching knob and pawl system. -
Page 3: Features
Specifications: – Check the circuit breaker switch at the bottom left of the machine. General Specifications for the Model 642E Centrifuge If the switch is white, the breaker has tripped. Contact Drucker Diagnostics for further assistance. Nominal Speed (Horizontal): 3,380 (+/- 100) RPM –... -
Page 4: Initial Setup Procedure
If it is possible benzyls, ethyl benzenes, and all other chemicals not prescribed by the to turn the latch and open the lid while the unit is running, contact Drucker manufacturer shall not be used as they may cause damage to the rotor Diagnostics for assistance. -
Page 5: Rotor Removal And Installation
For proper care, the following steps should be taken: brake setting, from 1 to 10. Provide Adequate Ventilation: For cooling purposes, the Model 642E draws in To change the preset time: NOTE: Your centrifuge must be plugged in. ambient air through the air intake cover on the top of the lid and exhausts Push the OPEN / STOP button to disengage the lock and then this air in the rear of the base. -
Page 6: Troubleshooting
Tube Holder Configurations: Operation: The Model 642E is capable of spinning test tubes up to 17 mm x 100 mm with its horizontal rotor. Use the following chart and drawing to determine which tube NOTE: Follow the initial setup procedure on page 4 before initial operation.
