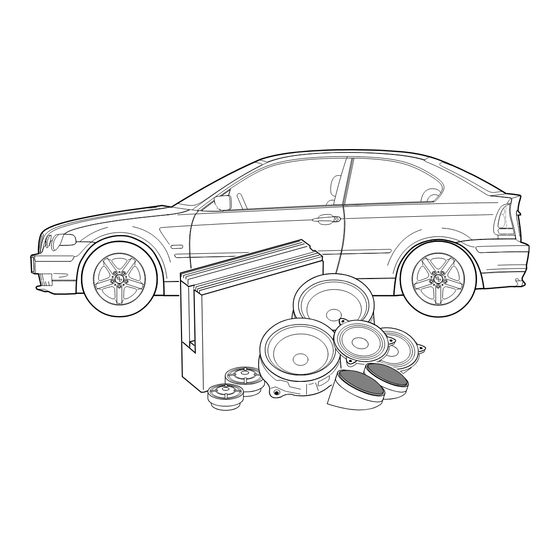

Sound Module system retroﬁt kit

BMW 3 Series compact (E 46/5) LHD

The Sound Module system is only suitable for installation in cars without SA676 BMW Hi-fi

system.

Technical and electrical knowledge required

The installation time is approx. 3.5 hours but this may vary depending on the condition of the

car and the equipment in it.

Retrofit / Installation kit No. 82 83 136,518

Retrofit / Installation kit No. 82 83 0 136 518

Installation Instructions No. 01 29 0 136 536

Issue date: 10.2001

046 0621 B

Table of Contents

Need help?

Do you have a question about the SA676 and is the answer not in the manual?

Questions and answers

Summary of Contents for BMW SA676

Page 1 046 0621 B Sound Module system retroﬁt kit BMW 3 Series compact (E 46/5) LHD The Sound Module system is only suitable for installation in cars without SA676 BMW Hi-fi system. Technical and electrical knowledge required The installation time is approx. 3.5 hours but this may vary depending on the condition of the car and the equipment in it.
Page 2: Table Of Contents
Contents Section Page Important information for the installation of the Sound Module ....Preparations ............Parts list .
Page 3: Important Information For The Installation Of The Sound Module
The customer information is to be given to the customer. If it is connected to other makes, BMW AG cannot accept any guarantee for the sound module system. The Sound Module system is only suitable for installation in cars without SA676 BMW Hi-fi system..
Page 4: Preparations
Preparations TIS instruction No. Conduct a brief test (print out error memory) Disconnect the battery 12 00 ... Remove the left footwell trim Remove the oddments box on the left of the steering column Remove the décor strips on the left and centre Remove the light switch unit Remove the radio Remove the control module cover in the engine compartment...
Page 5: Parts List
Parts list 046 0865 B Legend Radio/Amplifier adapter cable Power supply cable with fuse Radio/amplifier adapter cable only for cars with an on-board monitor radio after production date 09/01 Amplifier Fillister head self-tapping screw 3.5x9.5 for amplifier holder (8x) Adapter for earth connection Hexagonal lock nut M6 Bottom amplifier holder Top amplifier holder...
Page 6 Parts list left right Einbauanleitung Kunden information 046 0805 B Legend 14 Front tweeter (2x) 15 Rear tweeter (2x) 16 Washer 4.3 mm (4x) 17 Lock nut M4 (4x) 18 Cable tie (20x) 19 Double insulation-piercing connector (2x) 20 Top section of rear speaker mounting box, right* 21 Top section of rear speaker mounting box, left* 22 Template for rear tweeter, left 23 Template for rear tweeter, right...
Page 7: To Install The Amplifier And Additional Wiring Harness
To install the ampliﬁer and additional wiring harness (for cars with a battery in the boot) Push the hexagonal screw M8x20 (8) into the top amplifier holder (6) from underneath. Place the top amplifier holder (6) with the inserted hexagonal screw M8x20 (8) on to the amplifier (1) and secure it with four fillister head screws 3.5x9.5 (2).
Page 8 To install the ampliﬁer and additional wiring harness (for cars with a battery in the boot) Connect the black 17-pin radio connection plug X18126 to the black 17-pin plug casing (40) on adapter cable A . You may have to reconnect the CD changer connection cable to the black 17-pin socket X18126 casing (41) on the adapter cable A .
Page 9 To install the ampliﬁer and additional wiring harness (for cars with a battery in the boot) Secure the bottom amplifier holder (5) to the amplifier (1) with the two fillister head self-tapping screws 3.5 x 9.5 (2). Secure the adapter cable A along the main wiring harness (40) with cable ties (18).
Page 10 To install the ampliﬁer and additional wiring harness (for cars with a battery in the engine compartment Carefully cut open the rubber grommet (40) in the front a little.Carefully push the power cable (41), red cable, through the opening you have made in the rubber grommet (40) and then push it through the rubber grommet (42).
Page 11: To Install The Amplifier And Additional Wiring Harness (For Cars With A Battery In The Boot)
To install the ampliﬁer and additional wiring harness (for cars with a battery in the boot) Push the hexagonal screw M8x20 (8) into the top amplifier holder (6) from underneath. Place the top amplifier holder (6) with the inserted hexagonal screw M8x20 (8) on to the amplifier (1) and secure it with four fillister head screws 3.5x9.5 (2).
Page 12 To install the ampliﬁer and additional wiring harness (for cars with a battery in the boot) Connect the black 17-pin radio connection plug X18126 to the black 17-pin plug casing (40) on adapter cable A. You may have to reconnect the CD changer X18126 connection cable to the black 17-pin socket casing (41) on the adapter cable A.
Page 13 To install the ampliﬁer and additional wiring harness (for cars with a battery in the boot) Secure the bottom amplifier holder (5) to the amplifier (1) with the two fillister head self-tapping screws 3.5 x 9.5 (2). Secure the adapter cable A along the main wiring harness (40) with cable ties (18).
Page 14 To install the ampliﬁer and additional wiring harness (for cars with a battery in the boot) Lay the power cable (40), red cable on the adapter cable near the left door sill along the standard wiring harness under the reinforcement for the rear seat bench into the boot and secure it with cable ties.Then lay it along the closing panel to the installation site of the battery (41) and secure it...
Page 15: With An On-Board Monitor Radio
To install the ampliﬁer and additional wiring harness (for cars with a battery in the engine compartment) with an on-board monitor radio Affix the template (26) to the airbag mounting plate (40) and drill four holes with diameters of 2.5 mm (41).
Page 16 To install the ampliﬁer and additional wiring harness (for cars with a battery in the engine compartment) with an on-board monitor radio Mark the holes (41) on the top amplifier holder (6) from the other side of the airbag mounting plate (40).
Page 17 To install the ampliﬁer and additional wiring harness (for cars with a battery in the engine compartment) with an on-board monitor radio Cut open the rubber grommet (40) for the airbag mounting plate. Push the black 25-pin connection plug on the radio/amplifier adapter cable A through it.
Page 18 To install the ampliﬁer and additional wiring harness (for cars with a battery in the engine compartment) with an on-board monitor radio Install the airbag mounting plate and amplifier (40) and lay the radio/amplifier adapter cable A along the main wiring harness to the on-board monitor radio.
Page 19 To install the ampliﬁer and additional wiring harness (for cars with a battery in the engine compartment) with an on-board monitor radio Lay the 1-pin cable on the radio/amplifier adapter wiring harness A along the main wiring harness on the left-hand side. 046 0826 B Driver’s footwell.
Page 20 To install the ampliﬁer and additional wiring harness (for cars with a battery in the engine compartment) with an on-board monitor radio Cut the 1-pin red cable on the radio/amplifier adapter wiring harness A, to the appropriate length, crimp on a blade terminal contact and insert it into the fuse holder (40).
Page 21: To Install The Amplifier And Additional Wiring Harness (For Cars With A Battery In The Boot) With An On-Board Monitor Radio
To install the ampliﬁer and additional wiring harness (for cars with a battery in the boot) with an on-board monitor radio Affix the template (41) to the airbag mounting plate (40) and drill four holes with diameters of 2.5 mm. 046 0806 B Affix the template (27) to the airbag mounting plate (40) and drill two holes with diameters of 2.5 mm...
Page 22 To install the ampliﬁer and additional wiring harness (for cars with a battery in the boot) with an on-board monitor radio Mark the holes (41) on the top amplifier holder (6) from the other side of the airbag mounting plate (40).
Page 23 To install the ampliﬁer and additional wiring harness (for cars with a battery in the boot) with an on-board monitor radio Cut open the rubber grommet (40) for the airbag mounting plate. Push the black 25-pin connection plug on the radio/amplifier adapter cable A through it.
Page 24 To install the ampliﬁer and additional wiring harness (for cars with a battery in the boot) with an on-board monitor radio Install the airbag mounting plate and amplifier (40) and lay the radio/amplifier adapter cable A along the main wiring harness to the on-board monitor radio.
Page 25 To install the ampliﬁer and additional wiring harness (for cars with a battery in the boot) with an on-board monitor radio Lay the 1-pin red cable (40) on the radio/amplifier adapter wiring harness along the standard wiring harness under the reinforcement for the rear seat bench to the battery (41) into the boot and secure it with cable ties (18).
Page 26: To Install The Tweeters And Woofers/Mid-Range Speakers In The Front
To install the tweeters and woofers/mid-range speakers in the front The figure shows the installation of the front tweeter (14) on the left-hand door. Proceed in exactly the same way on the right. Align the new front tweeter (14) and the fastening lug (40) to secure the cover (41) near the exterior rear-view mirror triangle you removed previously and secure them with the existing Torx bolt...
Page 27: To Install The Tweeters And Woofers/Mid-Range Speakers In The Rear
To install the tweeters and woofers/mid-range speakers in the rear The figure shows the bottom section of the mounting box (40) for the left rear speaker. Proceed in exactly the same way on the right. Drill a 5 mm hole (41), as shown in the figure, in the bottom section of the rear speaker mounting box (40).
Page 28 To install the tweeters and woofers/mid-range speakers in the rear The figure shows the top section on the left (40). Proceed in exactly the same way on the right. Place the rear tweeter (15), as shown in the figure, on to the top section (40). 046 0661 B The figure shows the left top section (40) from below.Proceed in exactly the same way...
Page 29 To install the tweeters and woofers/mid-range speakers in the rear The figure shows the bottom section on the left (40). Proceed in exactly the same way on the right. Connect the connection cable (41) for the rear tweeter using the two double insulation-piercing connectors (19) to the existing speaker connection plug (42) matching the colours (green to green (positive pole), green/black to green/black...
Page 30: 10. Templates For Rear Tweeters
10. Templates for rear tweeters Do not use this template. The original template is supplied in the installation kit. 046 0670 B EN/30 Retrofit / Installation kit No. 82 83 0 136 518 Installation Instructions No. 01 29 0 136 536 Issue date: 10.2001...
Page 31: Templates For Airbag Mounting Plate
Templates for airbag mounting plate Do not use this template. The original template is supplied in the installation kit. 046 0820 B EN/31 Retrofit / Installation kit No. 82 83 0 136 518 Installation Instructions No. 01 29 0 136 536 Issue date: 10.2001...
Page 32: Coding/Concluding Work
Coding/Concluding work Coding Concluding work Connect battery Conduct a function test Reassemble the car by following the instructions for its dismantling in reverse order Print out error memory Coding This system does not require coding. EN/32 Retrofit / Installation kit No. 82 83 0 136 518 Installation Instructions No.
