Imagestore HDTV User Manual

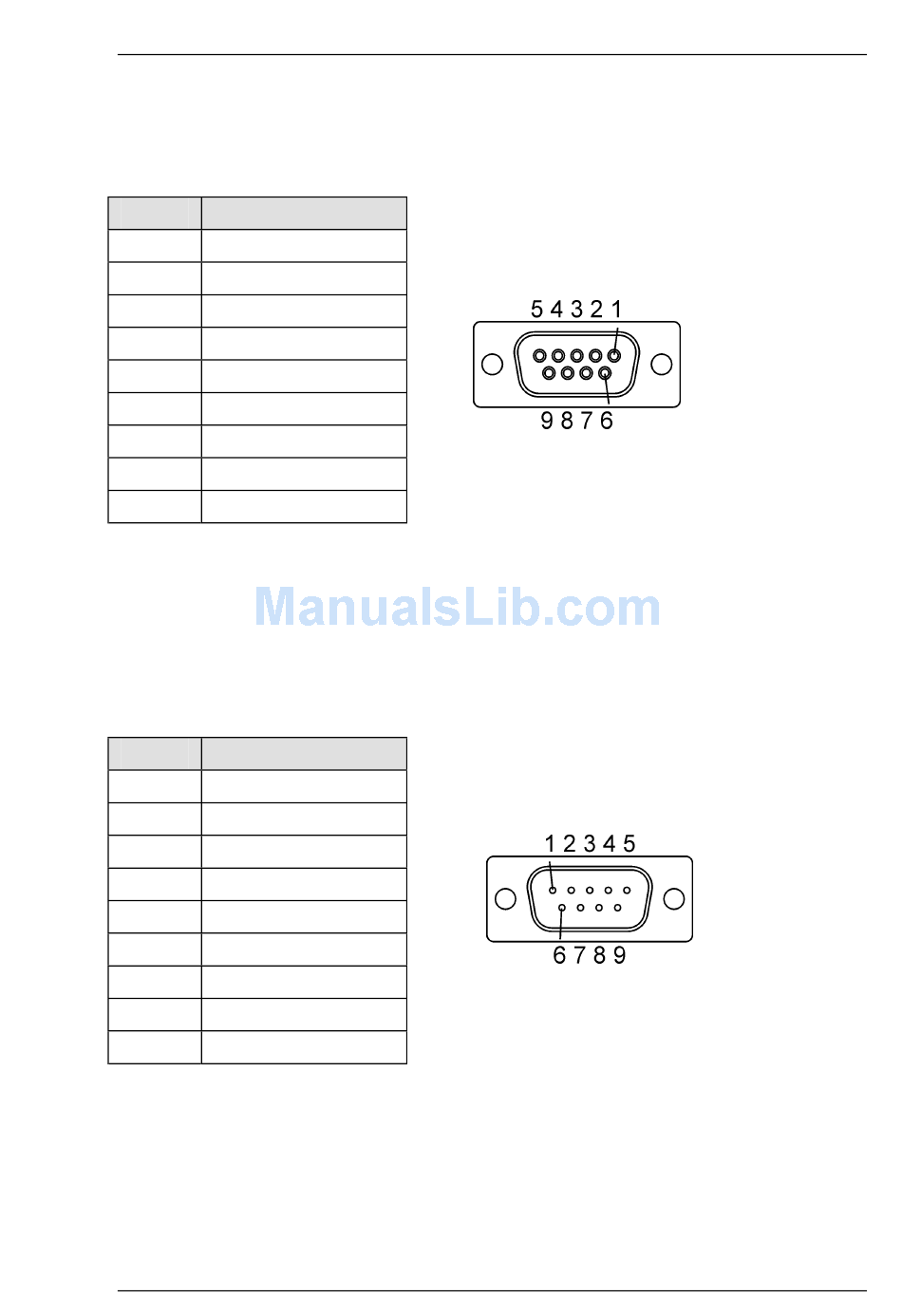

Oxtel RCP
Pin No.
Signal Name
1
Ground
2
RX-
3
TX+
4
Ground
5
Ground
6
Ground
7
RX+
8
TX-
9
+12V
Connector type: 9 pin female D type.
RS232
Pin No.
Signal Name RS232
1
DCD
2
RX
3
TX
4
DTR
5
Ground
6
DSR
7
RTS
8
CTS
9
RI
Connector type: 9 pin male D type.
