Summary of Contents for KSB PumpMeter
- Page 1 PumpMeter Type Series Booklet...
- Page 2 All rights reserved. Contents provided herein must neither be distributed, copied, reproduced, edited or processed for any other purpose, nor otherwise transmitted, published or made available to a third party without KSB´s express written consent. Subject to technical modification without prior notice.

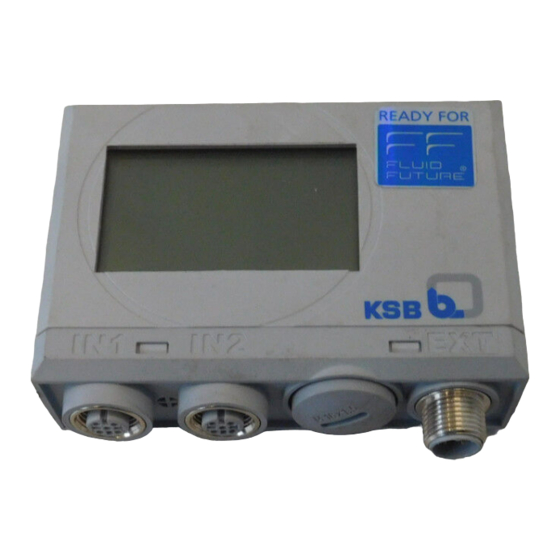

- Page 3 Ambient temperature -10 °C to 60 °C PumpMeter Materials Product description Overview of materials The PumpMeter device is an intelligent pressure sensor for Wetted components Material pumps, with local output of measured values and operating Pressure sensor measuring unit 1.4542 data.
- Page 4 Dimensions of the sensor overload flashing (4) intended operating conditions range ▪ Possibly overload of pump and/or motor For some pump characteristics, no differentiation is made between the low-flow operating conditions in the curve's first two quarters (both flashing simultaneously). PumpMeter...
- Page 5 Diethylene glycol – 100 Heating water – General criteria for results of water analysis: pH value ≥ 7; chloride content (Cl) ≤ 250 mg/kg. Chlorine (Cl 2) ≤ 0.6 mg/kg Treatment to VdTÜV 1466; additional requirement: O2≤ 0.02 mg/l PumpMeter...
- Page 6 -1..40 bar 0.6 m cable (black) -1.0.10 bar 0.6 m cable (blue) Anti-freeze on ethylene glycol basis with inhibitors. Content: >20 % to 50 % (e.g. Antifrogen N) No ultra-pure water! Conductivity at 25 °C: < 800 µS/cm, neutral with regard to chemical corrosion PumpMeter...
- Page 7 Connection cable 01146984 ▪ Length 10 m ▪ 5-pole cable with M12 plug for power supply and signal output Power supply unit for the PumpMeter 01147695 ▪ 24 V / 750 mA (for maximum 5 PumpMeter devices) PumpMeter...
- Page 8 KSB Aktiengesellschaft 67225 Frankenthal • Johann-Klein-Str. 9 • 67227 Frankenthal (Germany) Tel. +49 6233 86-0 • Fax +49 6233 86-3401 www.ksb.com...
