It is recommended that the installation should
comply with the HSE Memorandum of Guidance
on Electricity at Work Regulations 1989.
For USA install equipment in accordance
with the National Electric Code.

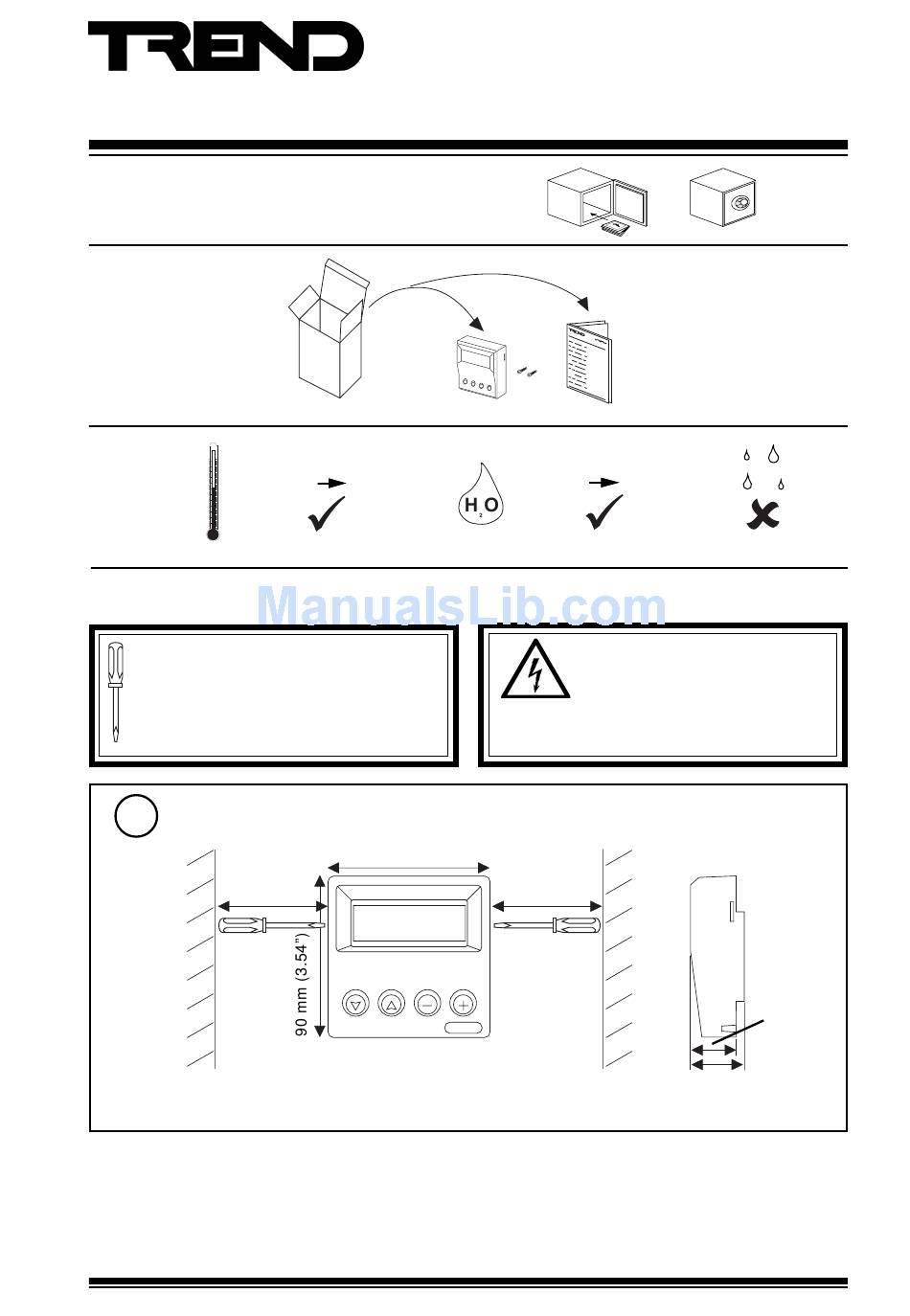

Dimensions
1
150 mm (6")
SDU-xcite Installation Instructions TG200643 Issue 1/E 20/11/06
+50 °C
0 %RH
+122 °F
DANGER high voltage. No serviceable parts
inside.
90 mm (3.54")
150 mm (6")
Installation Instructions
SDU-xcite
Smart Display Unit
SDU-xcite Installation
Instructions TG200643
95 %RH
WARNING: Other than removing
front cover (step 3), do not open
unit.
30 mm (1.18")
25 mm
(0.98")
1
Advertisement
Table of Contents
Summary of Contents for TREND SDU-xcite
- Page 1 For USA install equipment in accordance DANGER high voltage. No serviceable parts with the National Electric Code. inside. Dimensions 90 mm (3.54”) 150 mm (6”) 150 mm (6”) 25 mm (0.98”) 30 mm (1.18”) SDU-xcite Installation Instructions TG200643 Issue 1/E 20/11/06...
-
Page 2: Installation
Route Cable * If one side of the 24 Vac input power is connected to 0 V, that side must be connected to the SDU - (negative) terminal b Switch on Power 24 V SDU-xcite Installation Instructions TG200643 Issue 1/E 20/11/06... - Page 3 9 way D type Female Socket Power Supply CAUTION: The SDU-xcite must be connected to the PC using adapter cable, SDU DOWNLOAD ADAPTOR. Failure to use this cable may result in damage to the SDU or PC. Note set to Mode 0 or 1 to enable Set up SDU Configuration File alarm log for IQ3 >=V1.2...
- Page 4 Ø4 mm 2 off Ø4 mm (M3.5 screw) (M3.5 x 30 mm screws provided) Check Start Up Reset Communications failure SDU-xcite V1.0 Displays first labelled sensor Firmware version - if set to defaults SDU-xcite Installation Instructions TG200643 Issue 1/E 20/11/06...
- Page 5 Plant Room 1 20/03/02 08:04 Home page Sensor 1 Sensor Sensor 2 Knob Sensor 3 Switch Driver Sensor (last) Digital Input Note that only the configured modules (not necessarily sequential) Time Zone are displayed Time SDU-xcite Installation Instructions TG200643 Issue 1/E 20/11/06...
-
Page 6: Enter Pin
PIN required see step 13 20.32 Analogue Units 20.32 Tenths 20.32 Hundredths Enter PIN If required 5 * * * X 5 * * X X 5 * X X X 5 SDU-xcite Installation Instructions TG200643 Issue 1/E 20/11/06... -
Page 7: Setup Parameters
Stop date Occupation Change Time (1 to n) hours, minutes, status Time hrs, minutes, day of month, month, year daylight saving on, day of month, month daylight saving off, day of month, month SDU-xcite Installation Instructions TG200643 Issue 1/E 20/11/06... -
Page 8: Weee Directive
Bois 37,Switzerland by its Authorized Representative, Trend Control Systems Limited. Trend Control Systems Limited reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes.
