- Page 1 Countertop dishwasher User’s Manual model mCSCd6W5 plEaSE rEad ThIS maNual CarEfully BEfOrE uSING yOur dIShWaShEr aNd KEEp IT fOr fuTurE rEfErENCE.
-
Page 2: Product Registration
Thank you for purchasing a Magic Chef® product� The first step to protect your new product is to complete the product registration on our website: www�mcappliance�com/register� The benefits of registering your product include the following: 1� Registering your product will allow us to contact you regarding a safety notification or product update�... -
Page 3: Table Of Contents
CONTENTS PRODUCT REGISTRATION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2 IMPORTANT SAFETY INSTRUCTIONS �... -
Page 4: Important Safety Instructions
ImpOrTaNT SafETy INSTruCTIONS This manual contains Safety Instructions, Installation and Operating Instructions, and Troubleshooting Tips� Please carefully read this manual before using your countertop dishwasher for instructions on how to use and maintain the product properly� Be sure to follow the safety instructions to avoid injury or damage to the product� Keep this manual�... -
Page 5: Save These Instructions
17� When disposing of or removing from service, be sure to remove the door from the front of the unit� 18� When loading items to be washed, place sharp items so that they are not likely to damage the door seal WarNING: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position�... -
Page 6: Specifications
SpECIfICaTIONS 17�3” (440 mm) 19�7” (500mm) 32�0” (812 mm) Height 17�3” (440mm) Width 21�7” (550 mm) Depth 19�7” (500 mm) Voltage 120V AC Water Pressure 5�80-145�04psi (0�04-1�0Mpa) Hot Water Temperature 120 °F (49 °C) Power Supply 5�72A Total (Heater – 5A, Motor - �72A) Capacity 6 Place Settings... -
Page 7: Parts And Features
parTS aNd fEaTurES CONTROL PANEL figure 1 a� Power Button d� Display g� Program Select Button b� Rinse Aid Warning Light e� Program Indicator h� Start/Pause Button c� Program End Indicator f� Delay Button INSIDE AND REAR OF DISHWASHER figure 2 Inside of Dishwasher Rear of Dishwasher a�... - Page 8 QUICK CONNECT ASSEMBLY figure 3 Inlet Hose Drain Hose Faucet Adapter Quick Connect a� Inlet Port Connection e� Faucet Adapter i� Locking Collar b� Quick Connect Connection f� Faucet Washer j� Inlet Hose Connection c� Drain Port Connection g� Pressure Relief Valve k�...
-
Page 9: Installation Instructions
INSTallaTION INSTruCTIONS WarNING: Electrical Shock Hazard - Disconnect electrical power before installing dishwasher� Failure to do so can result in electrical shock or death� Installation of water supply pipes or electrical outlets should be performed by qualified professionals� Set up the dishwasher on a countertop with a minimum clearance of 17�75” to the cabinet above and so the appliance is not overhanging the edge of the countertop�... - Page 10 a� Power Cord f� Drain Port Connection k� Faucet Adapter Connection b� Inlet Port g� Quick Connect Connection l� Locking Collar c� Drain Port h� Faucet Adapter m� Inlet Hose Connection d� Inlet Port Connection i� Faucet Washer n� Drain Hose Connection e�...
-
Page 11: Before Use
BEfOrE uSE FILLING THE RINSE AID DISPENSER The rinse aid is released during the final rinse to prevent water droplets that can leave spots and streaks from forming on your dishes� It also improves drying by allowing water to sheet off the dishes� Your dishwasher is designed to use liquid rinse aids�... -
Page 12: Filling Detergent Dispenser
DETERGENT DISPENSER Dishwasher detergent is necessary to remove food from dishes and help move it out of the dishwasher� Only use detergents that are specifically made for dishwashers� Fill the detergent dispenser before the start of each wash per the instructions provided in the Wash Cycle Table� Your dishwasher uses less detergent and rinse aid then conventional dishwashers�... -
Page 13: Loading The Dishwasher
NOTE: See Wash Cycle Table for more information on amount of detergent to use� NOTE: Water hardness and how soiled dishes are can vary the amount of detergent needed� LOADING THE DISHWASHER NOTE: DO NOT wash items that are not listed as dishwasher safe� NOTE: Some types of glasses may become dull after a large number of washes�... - Page 14 Cutlery should be placed handles down in the cutlery basket, unless it is a sharp figure 10 object such as a knife� Sharp objects that fit in the cutlery basket should be placed handle up� Avoid having spoons and forks nest together� If an item is too large for the basket, or has a tip or point that would stick out of the bottom of the basket, place it horizontally in the dish rack�...
-
Page 15: Operating Instructions
OpEraTING INSTruCTIONS The following things should be checked before starting the dishwasher� 1� The dishwasher is level� 2� The water supply is open� 3� There are no leaks at the connections� 4� The plug is connected securely to a properly grounded outlet� 5�... -
Page 16: Wash Cycle Table
The display lights indicate the status of the Wash Cycle� • Program Indicator lights off: Stand-by • Non-blinking Program Indicator lights: Paused • Blinking lights: Running NOTE: If the dishwasher is standing by without any operation, it will turn off automatically after 30 minutes� WASH CYCLE TABLE NOTE: indicates Rinse Aid Dispenser should be filled�... -
Page 17: Care And Maintenance
CarE aNd maINTENaNCE FILTER SYSTEM The filters prevent food remnants and other objects from getting inside figure 11 the pump� The filter system consists of three parts (Refer to Figure 11): a Coarse filter (a), a Fine filter (b), and a Main filter (c)� a�... -
Page 18: Cleaning The Filter

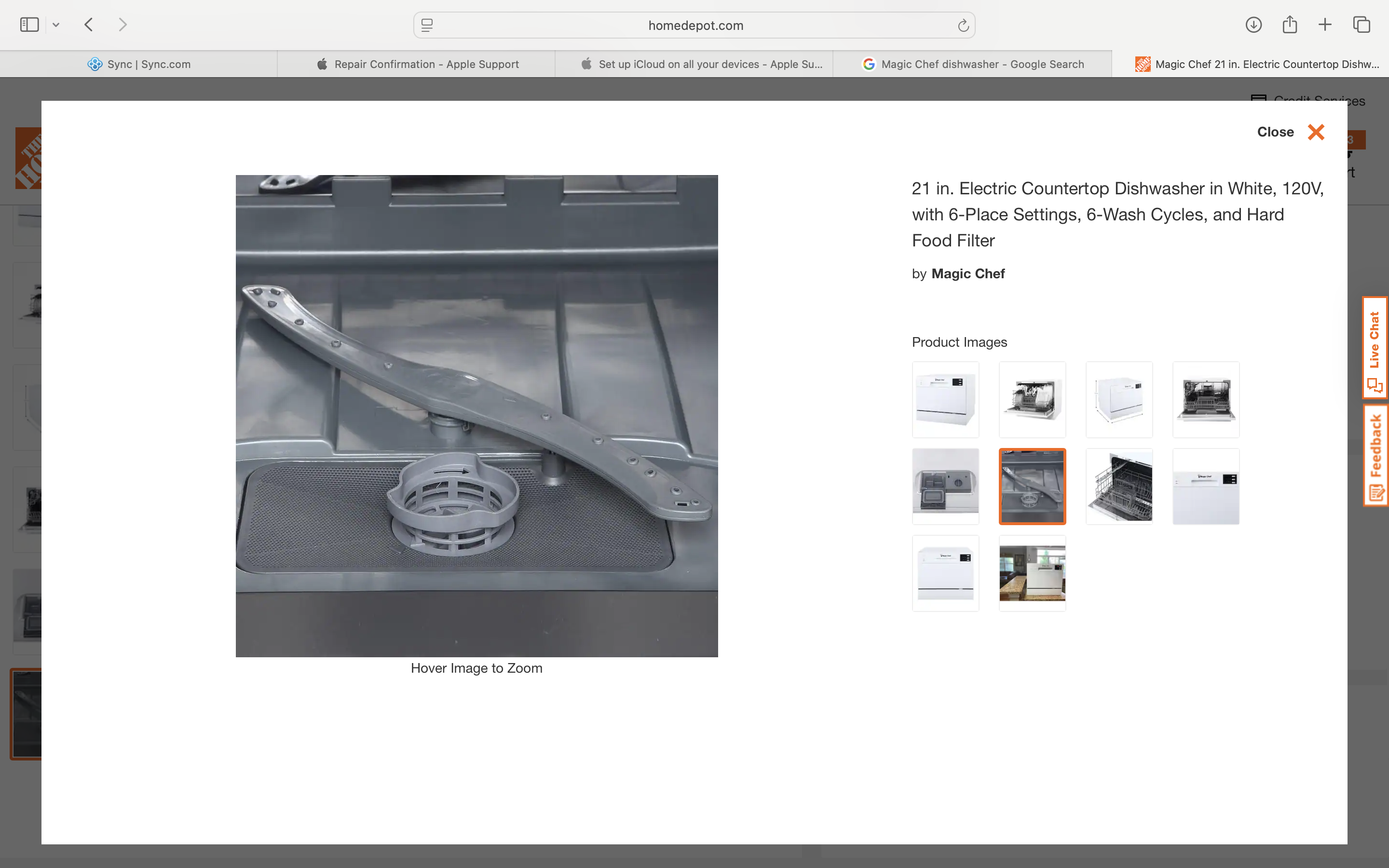

CauTION: Inspect the filters every time the dishwasher has been used� WarNING: Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils� CLEANING THE FILTER To clean the coarse filter and the fine filter, use a soft cleaning brush� Remove any food remnants and clean the filters under running water�... - Page 19 CLEANING THE SPRAY ARMS figure 15 The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging� Wash them under running water and carefully replace them, checking that their rotary movement is in no way impeded� Grasp the middle of the spray arm and pull upwards to remove it�...
-
Page 20: Troubleshooting
TrOuBlEShOOTING Problem Possible Causes What to Do Fuse blown or circuit Replace fuse or reset circuit breaker� Remove any other ap- breaker tripped� pliances sharing the same circuit with the dishwasher� Make sure the dishwasher is turned on and the door is Dishwasher does Power supply not closed securely�... -
Page 21: Error Codes
Improper wash Select a more intensive program� Refer to “Wash Cycle program selected� Table”� Not enough detergent Use more detergent, or change your detergent� was dispensed� Items are blocking the Rearrange the items so that the spray arms can rotate freely� path of spray arms�... -
Page 22: Limited Warranty
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state� model parts labor Type of Service MCSCD6W5 One Year One Year Carry In For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com to request warranty service... - Page 23 CNa International, Inc. d/b/a mC appliance Corporation. all rights reserved. magic Chef® logo is a registered trademark of CNa International, Inc. www.mcappliance.com printed in China...
