16-08-13

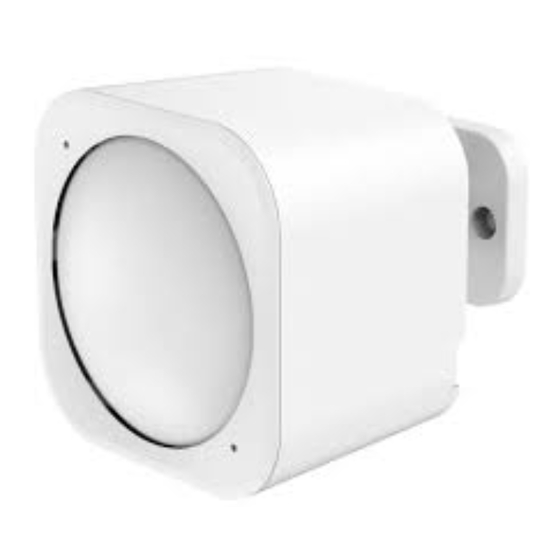

MultiSensor
Manual
The following instructions have been designed to help you
install and get the best performance out of Aeotec's
MultiSensor.
Powering The
MultiSensor.
The Aeotec MultiSensor has built-in battery level detection. It
will automatically report its battery level to the associated Z-
Wave gateway throughout its life until the battery is fully
drained and needs replacing. Most gateway user interfaces
will inform you of the battery status.
When used properly in an optimized Z-Wave network,
operation via battery can function for 12 months before
battery replacement.
Unlock the MultiSensor from its battery cover by twisting the
battery cover from the main unit in a counter-clockwise
motion and pulling the battery cover outward to separate the
main unit from the battery cover.
aeotec.com/z-wave-sensor/47-multisensor-manual.html
MultiSensor Manual - Aeotec
Z-Wave
1/10
Advertisement
Related Manuals for Aeotec Z-Wave MultiSensor 6
Summary of Contents for Aeotec Z-Wave MultiSensor 6
- Page 1 16-08-13 MultiSensor Manual - Aeotec MultiSensor Manual The following instructions have been designed to help you install and get the best performance out of Aeotec’s Z-Wave MultiSensor. Powering The MultiSensor. The Aeotec MultiSensor has built-in battery level detection. It will automatically report its battery level to the associated Z- Wave gateway throughout its life until the battery is fully drained and needs replacing.
- Page 2 16-08-13 MultiSensor Manual - Aeotec Insert 4 AAA batteries oriented according to the picture located in the battery holder (with the negative end depressing the battery spring). Lock the MultiSensor main unit to it’s battery cover by aligning the Lock/Unlock Half-Dimple Markers under the “unlock”...
- Page 3 Batteries naturally lose their charge over time. Motion Sensor Effective Range. Aeotec’s MultiSensor can be mounted to a wall or to a ceiling – the effective range differs for each mounting. When mounted to a ceiling; aeotec.com/z-wave-sensor/47-multisensor-manual.html...
-
Page 4: Installation Instructions
16-08-13 MultiSensor Manual - Aeotec When mounted to a wall; Weatherization Orientation. MultiSensor Physical Installation Instructions. There are 2 methods to physically mount the MultiSensor on the wall or ceiling. It can be mounted flat against the wall via the Back-Mount Plate or angled in a direction via the Back- Mount Arm. - Page 5 16-08-13 MultiSensor Manual - Aeotec Important: The MultiSensor is weatherized and can operate outdoors in rain and snow. Placed outdoors where directly exposed to rain and snow, the MultiSensor should be oriented such that the Temperature/Humidity Sensor is facing downward and positioned on the bottom of the unit – see the Weatherization Orientation section for more information.
- Page 6 Z-Wave Network Instructions. The Aeotec MultiSensor must be paired (included) into a Z- Wave network before it can send Basic Set Command, Temperature, Humidity, and Light level reports to association group 1 which is setup via the Association Command class.
- Page 7 Z-Wave products into an existing network. Adding/Including/Pairing the MultiSensor into a Z-Wave Network. Press the button labeled “Include” on the Aeotec Minimote to begin the Z-Wave inclusion process. Press the Z-Wave button under the Battery Cover to begin the Z-Wave pairing process.
-
Page 8: Troubleshooting
Z-Wave network, the LED will stay solid for a few seconds when pressing the Z-Wave button. Removing the MultiSensor from your Z-Wave network Press the button labeled “Remove” on the Aeotec Minimote to begin the Z-Wave removal process. aeotec.com/z-wave-sensor/47-multisensor-manual.html 8/10... - Page 9 16-08-13 MultiSensor Manual - Aeotec Troubleshooting If the MultiSensor was successfully removed from the Z-Wave network, pressing the Z-Wave button will cause the LED to blink. If the MultiSensor was not successfully removed from the Z-Wave network the LED will stay solid for a few seconds.
