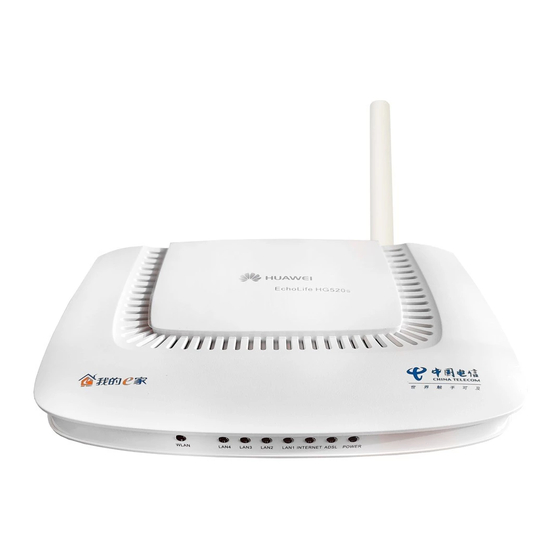

Huawei EchoLife HG520s User Manual

Home gateway
Hide thumbs Also See for EchoLife HG520s:

Advertisement

Quick Links

EchoLife HG520s Home Gateway User Manual
Issue
01
Date
2006-08-26
No.
202013
Huawei Technologies Co., Ltd.
Address:
Administration Building, Huawei Technologies Co., Ltd.,
Bantian, Longgang District, Shenzhen, 518129, People's
Republic of China
Website:
http://www.huawei.com
Email:
terminal@huawei.com
Copyright © Huawei Technologies Co., Ltd. 2006. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by
any means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies
Co., Ltd.
All other trademarks and trade names mentioned in this document are the
property of their respective holders.
Notice
The information in this document is subject to change without notice. Every
effort has been made in the preparation of this document to ensure accuracy
of the contents, but all statements, information, and recommendations in this
document do not constitute the warranty of any kind, express or implied.
This product has been designed to comply with the requirements on
environmental protection. For the proper storage, use and disposal of this
product, national laws and regulations must be observed.
