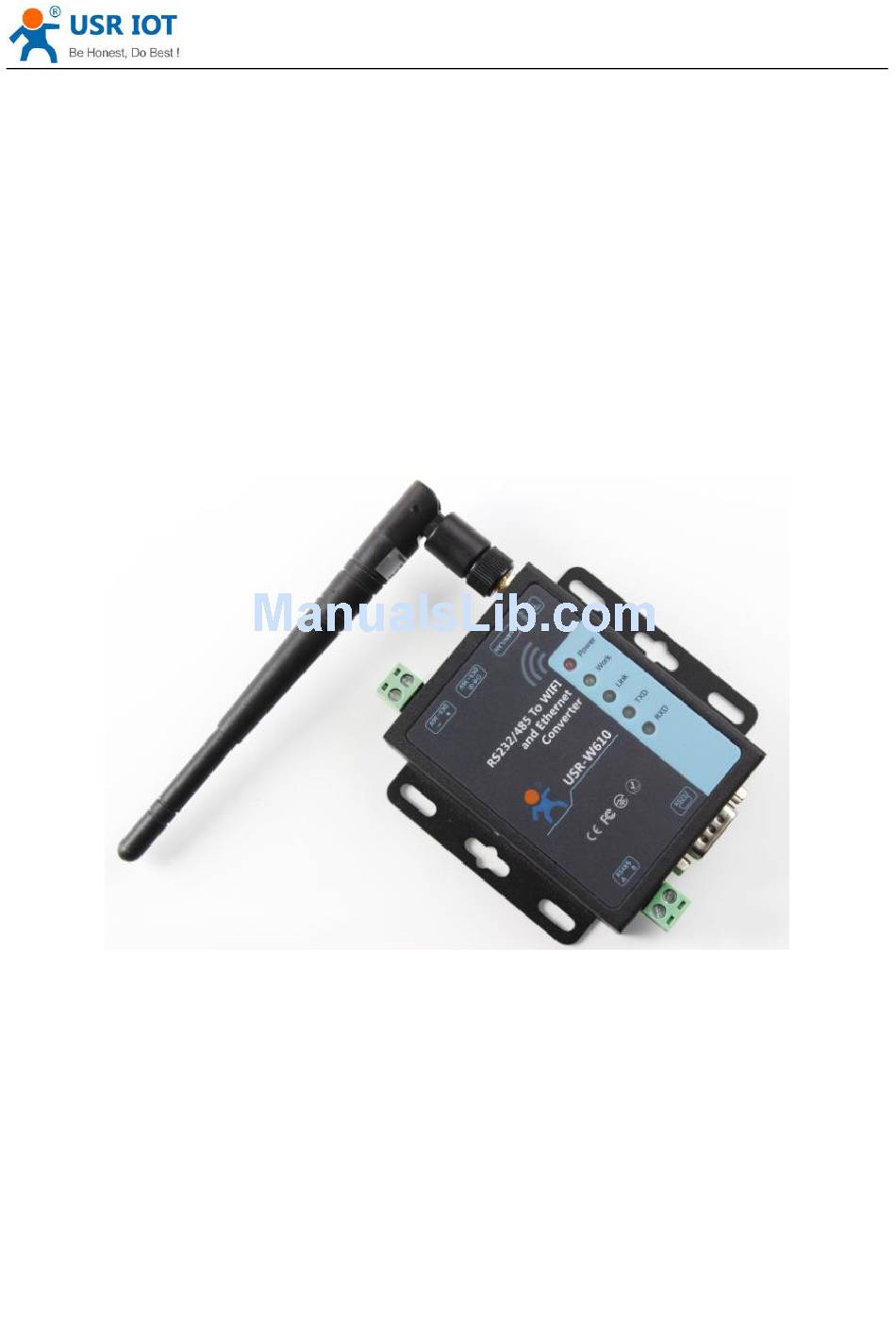

Page 1: Usr-W610 User Manual
USR-W610 User Manual Technical Support: h.usriot.com USR-W610 User Manual File Version: V1.0.1.01 Jinan USR IOT Technology Limited... -
Page 2: Table Of Contents
USR-W610 User Manual Technical Support: h.usriot.com Contents USR-W610 User Manual............................1 Features..................................4 1.Get Start..................................5 1.1.Application Diagram..........................5 1.2.Hardware..............................5 1.2.1.LED..............................5 1.2.2.Interface............................6 1.2.3.Dimension............................6 2.Networking application............................7 2.1.Wireless networking..........................7 2.1.1.AP mode.............................7 2.1.2.STA mode............................7 2.1.3.AP+STA mode............................7 2.1.4.AP, STA application.......................... 8 2.1.5.Encryption mode.......................... - Page 3 USR-W610 User Manual Technical Support: h.usriot.com 4.2.AT command.............................. 17 4.2.1.Serial AT command mode......................17 4.2.2.Setup software..........................17 4.2.3.Network AT command mode.......................17 5.Contact Us................................18 6.Disclaimer................................18 7.Update History..............................18 Jinan USR IOT Technology Limited...
-
Page 4: Features
Support heartbeat packet function. Support Websocket function. Support timeout reset function, timing reset function. Support Web Server, setup software, serial/network AT command to configure module. Support hardware reload. Support usrlink. Jinan USR IOT Technology Limited... -
Page 5: Get Start
Link Link LED will light after module establishing WIFI connection TXD LED will blink when module sends data from serial side RXD LED will blink when module’s serial side receives data Figure 2 LED Jinan USR IOT Technology Limited www.usriot.com... -
Page 6: Interface
USR-W610 User Manual Technical Support: h.usriot.com 1.2.2.Interface Figure 3 Interface 1.2.3.Dimension Figure 4 Dimension Jinan USR IOT Technology Limited www.usriot.com... -
Page 7: Networking Application
2.Networking application USR-W610 supports two wireless interface: one STA interface and one AP interface. And W610 also supports one 100M Ethernet interface. AP: Access point, central node of a wireless network. In general, wireless router is an AP and other wireless terminal can connect to each others through AP. -
Page 8: Ap, Sta Application
5 bytes or 13 bytes password; when module adopts WPA-PSK and WPA2-PSK encryption mode, password is at least 8 bytes. 2.2.Wired networking 2.2.1.AP+LAN When W610 works in AP mode, other STA devices can connect to W610 through RJ45 or WIFI. In this network, Jinan USR IOT Technology Limited www.usriot.com... -
Page 9: Ap+Wan
W610 can work in STA mode with Z-Ver version to apply bridge mode. After connecting to AP, device which connect to W610 through Ethernet interface can get IP address from AP. In this whole network, PC1 and PC2 can Jinan USR IOT Technology Limited www.usriot.com... - Page 10 If user want to achieve communicate between W610 to other h.usriot.com devices, user need set LAN interface IP address of W610 into same network segment as AP. Application diagram as follow: Figure 12 Bridge mode Jinan USR IOT Technology Limited www.usriot.com...
-
Page 11: Product Functions
Socket A supports: TCP Server, TCP Client, UDP Server, UDP Client. Socket A works in TCP Server mode supports at most 24 TCP Client connections. Socket B supports: TCP Client, UDP Client. Jinan USR IOT Technology Limited www.usriot.com... -
Page 12: Serial Port Command Mode
W610 supports Modbus TCP<=>Modbus RTU mode(doesn’t support Modbus ASCII). User just needs to configure W610 work mode to Modbus TCP<=>Modbus RTU mode and change related parameters(port, remote IP and some other parameters) to correct settings when user wants to use this mode. Jinan USR IOT Technology Limited www.usriot.com... -
Page 13: At Command Mode
3.2.3.Serial package method W610 supports serial package method(include Time Trigger Mode and Length Trigger Mode) and W610 will send received data as TCP package data to network if serial data arrive triggering time or triggering length. Jinan USR IOT Technology Limited www.usriot.com... -
Page 14: Baud Rate Synchronization Function
W610 entering configuration mode. Step 3: After user entering configuration mode, user can send network AT commands to query/set parameters.(The network AT commands format are same as serial AT commands) 3.3.2. Identity packet function Jinan USR IOT Technology Limited www.usriot.com... -
Page 15: Usrlink
Step 3: Choose the SSID, enter password and phone will send the configuration parameters to W610. Step 4: After receiving configuration parameters protocol, W610 will pares it and acquire the AP’s SSID and password, save them to flash, then reset and connect to AP. Jinan USR IOT Technology Limited www.usriot.com... -
Page 16: Keep-Alive Function
After enabling timeout reset function in transparent transmission mode, if W610 has no WIFI connection or has WIFI connection but no data transmission and these two situations last over a setting time, W610 will reset. This time is range from 60~65535s and default is 3600s. Jinan USR IOT Technology Limited www.usriot.com... -
Page 17: Parameter Configuration
Technical Support: h.usriot.com 4.Parameter configuration There are two ways to configure USR-W610. They are Web Server and AT command. 4.1.Web Server User can connect PC to W610 through AP interface and enter Web Server to configure. Web Server default parameters as follows:... -
Page 18: Contact Us
Tel: 86-531-88826739/86-531-55507297 6.Disclaimer This document provides the information of USR-W610 products, it hasn’t been granted any intellectual property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use explicitly or implicitly, including particular purpose merchant-ability and marketability, the tort liability of any other patent right, copyright, intellectual property right.
