Summary of Contents for Wander Control Systems KP-1
- Page 1 Installation Manual For Wander Control Systems Designed KP-1, KP-2, & EscortR ONLY ( Accessories for Platinum 3, Platinum 3B, & Sentry Door Control Systems ) Wander Control Systems, Inc. 210 Richlandtown Pike Quakertown, PA 18951 Telephone 215-538-1983 After Hours 407-446-0055...
-
Page 2: Table Of Contents
Wander Control Systems, Inc. Table of Contents Installation Overview Recommendations Wire Sizes Tools Wiring Strategy Mounting Set-up Connections KP-1 & KP-2 to Door Controllers EscortR FAQs Figure Figure 1. Platinum 3 Installation Diagram WCSI Keypad Installation Manual Page 2 of 6... -
Page 3: Installation
Wander Control Systems, Inc. KP-1, KP-2, & EscortR Installation Manual Installation Figure 1. Platinum 3 Installation Diagram Note: Diagram depicts a Platinum 3 with an antenna. The Sentry does NOT have an antenna. WCSI Keypad Installation Manual Page 3 of 6... -
Page 4: Overview

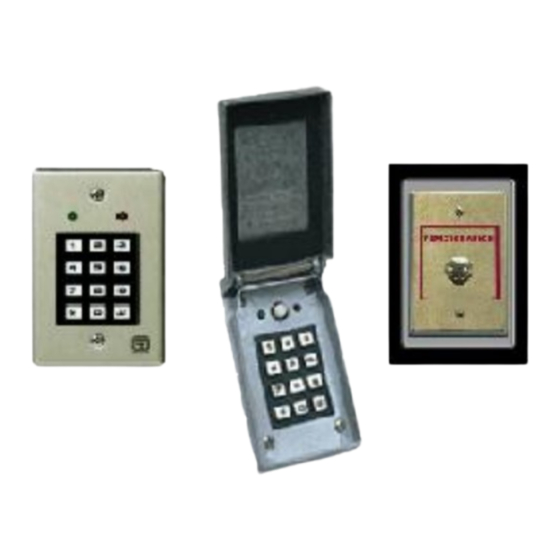

Overview The KP-1, KP-2, and EscortR are remote access panels. KP-1 ~ a keypad designed for inside use to be placed on the opposite side of the wall from the main door controller KP-2 ~ a keypad with a weather resistant cover designed for outside use to be placed... -
Page 5: Mounting
Set-up Connections KP-1 & KP-2 There are 3 wires used on the KP-1 & KP-2. The colors and functions are as follows: - Positive Power (6 – 12VDC) Black - Common Ground... -
Page 6: Escortr
1) Pull the circuit board free from the keypad. On the board you will see five wires and a plastic strip with holes that are labeled ABCDE and 0123456789. 2) Escort code used on KP-1 or KP-2 must match code used on Platinum 3, Platinum 3B, or Sentry controller.
