- Page 1 Medical Display FS-P2404D, P2604D User’s Guide Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.
-
Page 2: Table Of Contents
Table of Contents Introduction ....... . . 3 Symbol Definitions ......4 Safety Instructions . -
Page 3: Introduction

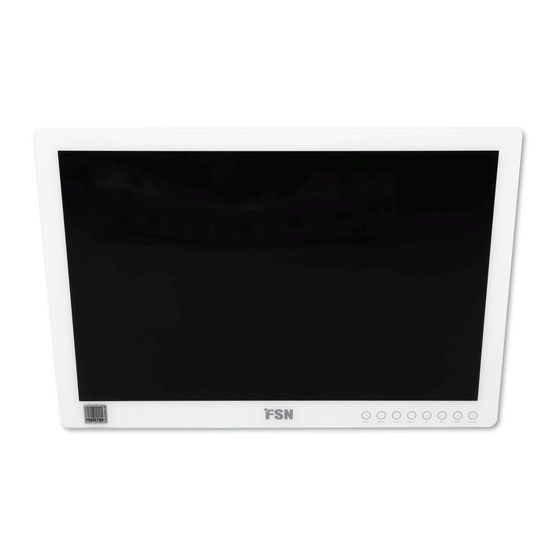

Overview FS-P2404D, FS-P2604D This product from FSN Medical Technologies is a high-end surgical display monitor designed for advanced digital OR applications. This medical display is uniquely equipped to handle tasks in the demanding operating room environment. The video input options cover a wide selection of popular medical signal standards. -
Page 4: Symbol Definitions
Symbol Definitions The following symbols appear on the product, its labeling, or the product packing. Each symbol carries a special definition, as defined below: Dangerous : High Voltage Power adapter lndicates equipotential earth Direct Current ground Indicates protective earth Indicates top-bottom ground direction DC Power control switch... - Page 5 Indicates proof of conformity to applicable European Economic Community Council directives and to harmonized standards published in the official journal of the European Communities. Medical Equipment is in accordance with UL 60601-1 and CAN/CSA C22.2 No. 601.1 in regards to electric shock, fire hazards, and mechanical hazard. Tested to comply with FCC Class B standard.
-
Page 6: Safety Instructions
Safety Instructions On Safety 1. Before connecting the AC power cord to the DC adapter outlet make sure the voltage desig- nation of the DC adapter corresponds to the local electrical supply. 2. Never insert anything metallic into the cabinet openings of the medical LCD monitor. Doing so may create the danger of electric shock. -
Page 7: Intended Use
On installation 1. Openings in the medical LCD monitor cabinet are provided for ventilation. To prevent over- heating, these openings should not be blocked or covered. If you put the medical LCD moni- tor in a bookcase or some other enclosed space, be sure to provide adequate ventilation. 2. -
Page 8: Caution
This medical LCD monitor complies to the above standards only when used with the supplied medical grade power supply. FS-P2404D - BM120S24F02 FS-P2604D - ATM160T-P240 Caution: Make sure the power cord is the correct type that is required in your area. This medical LCD monitor has a universal power supply that allows operation in either 100-120V AC or 200- 240V AC voltage areas (no user adjustment is required). - Page 9 The hospital-grade plug for medical products intended for use in Denmark has DEMKO approval and is rated 13 amps at 250Vac. Plug is recommended for use in medical applications and specifica- tions are being added to the standard SB 107-2-D1. Plug mates with maker’s Danish hospital-grade socket.
-
Page 10: Fcc Information
FCC Information This medical LCD monitor unit has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason- able protection against interference. This monitor can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may interfere with other radio com- munications equipment. - Page 11 1. Guidance and manufacturer’s declaration - electromagnetic emission The medical LCD monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the medical LCD monitor should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment -guidance...
- Page 12 3. Guidance and manufacturer’s declaration - electromagnetic immunity This medical LCD monitor is intended for use in the electromagnetic environment specified below. The customer or the user of monitor should assure that it is used in such an environment. Immunity test IEC 60601 Test Compliance level Electromagnetic environment-guidance...
- Page 13 4. Recommended separation distances between portable and mobile RF communications equipment and this medical LCD monitor. The medical LCD monitor is intended for use in an electromagnetic environment in which radi- ated RF disturbances are controlled. The customer or the user of the monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the medical LCD monitor as recommended below, according to the maximum output power of the communications equipment.
-
Page 14: Parts
Parts Monitor FS-P2404D FS-P2604D Accessories User Manual AC-DC Adaptor AC Power Cord DVI-D Cable FS-P2404D - BM120S24F02 (6ft/1.8m) (6ft/1.8/m US,UK,EU, China) FS-P2604D - ATM160T-P240 (Hospital Grade) (6.23ft/1.9m) BNC Cable DC Cable Terminal D-SUB Cable Screw BH M4 x 14 (6ft/1.8m) Male / female (6ft/1.8m) -
Page 15: Connectors, Power Management
Connectors DVI 2 IN (optional) 24” FS-P2404D DVI 2 IN (optional) 26” FS-P2604D Power Management This monitor saves energy by switching into a low power mode when it has not been used for a certain period of time. Normal operation automatically returns to the monitor when horizontal and vertical sync return. -
Page 16: Mechanical Product Drawing
Mechanical Product Drawing 24” FS-P2404D Dimension 82 / 3.23 575.4 mm / 22.66 in. 35.7 1.41 15.43 4-M4 100 / 3.94 3.94 VESA MOUNT HOLES 171.5 6.75 16 - English FSN1986 - 11/2017... - Page 17 Mechanical Product Drawing 26” FS-P2604D Dimension 78 / 3.07 640 mm / 25.20 in. 31.7 1.25 15.83 100 / 3.94 8-M4 3.94 VESA MOUNT 200 / 7.87 HOLES 171.2 6.74 English - 17 FSN1986 - 11/2017...
-
Page 18: Controls
Controls On Screen Display (OSD) Touchscreen Touchscreen icons, located in bottom right corner of the LCD display, allows the user to make adjustments to various display parameters using the On Screen Dis- play (OSD) system. Slightly touch any icon to activate all of the icons. QUICK ADJUST. -
Page 19: On Screen Display (Osd)
On Screen Display (OSD) Input Source Select FSN display monitors are compatible with many different types of video input signals. To view and select a signal type, follow the steps below. 1. Enter the Input Source Select Menu To activate, press the input button. - Page 20 On Screen Display (OSD) Menus FSN display monitors come equipped with a rich set of features for system set-up, image adjustments, and screen layout control. These features are managed through the On Screen Display, or OSD. Some options presented in the OSD are contextual and vary depending on the active input signal.
- Page 21 Submenus for the following signal types: VGA Analog, RGBS After selecting a main menu category, press the button to enter the associated submenus as shown below. Next, use the UP and DOWN buttons to navigate to the desired submenu, then adjust as needed with the buttons.
- Page 22 Submenus for the following signal types: After selecting a main menu category, press the button to enter the associated submenus as shown below. Next, use the UP and DOWN buttons to navigate to the desired submenu, then adjust as needed with the buttons.
- Page 23 Submenus for the following signal types: YPbPr After selecting a main menu category, press the button to enter the associated submenus as shown below. Next, use the UP and DOWN buttons to navigate to the desired submenu, then adjust as needed with the buttons.
- Page 24 Submenus for the following signal types: S-VIDEO, C-VIDEO After selecting a main menu category, press the button to enter the associated submenus as shown below. Next, use the UP and DOWN buttons to navigate to the desired submenu, then adjust as needed with the buttons.
- Page 25 Submenus for the following signal types: After selecting a main menu category, press the button to enter the associated submenus as shown below. Next, use the UP and DOWN buttons to navigate to the desired submenu, then adjust as needed with the buttons.
-
Page 26: Osd System Overview
On Screen Display (OSD) System Overview Submenu Descriptions Submenu Function/Description Quick Adjust Method: Press the UP or DOWN buttons. BRIGHTNESS Or, select BRIGHTNESS submenu and adjust with the PLUS and MINUS . Setting the brightness too high or too low will decrease the amount of visible gray scales. Quick Adjust Method: Press the PLUS or MINUS buttons. - Page 27 On Screen Display (OSD) System Overview (continued) Submenu Descriptions Submenu Function/Description Adjusts the horizontal position of the image. This setting will return to the default state when executing AUTO H POSITION ADJUST or RESET SETTINGS. Adjusts the verticall position of the image.
- Page 28 On Screen Display (OSD) System Overview (continued) Submenu Descriptions Submenu Function/Description ZOOM / PAN Controls image ZOOM in/out. 0 Step 4 Step 9 Step 13 Step 22 Step 26 Step 30 Step 18 Step Controls the image PAN left/right, up/down. The maximum ZOOM size is ten times as large as the original. FREEZE Freezes the main image.
- Page 29 On Screen Display (OSD) System Overview (continued) Submenu Descriptions Submenu Function/Description OSD TIMEOUT Adjusts the time until the OSD menu will disappear after making adjustments. RESET SETTINGS Resets the unit to its original status when it left the factory. When set to ON, the monitor will automatically search for connected input sources. AUTO INPUT SELECT Does not affect the sub window when in PIP mode.
- Page 30 On Screen Display (OSD) System Overview (continued) Submenu Descriptions Submenu Function/Description Swap main window and sub window contents in PIP,PBP1,PBP2. Picture in picture (PIP): PIP SWAP Picture by Picture 1 (PBP1): Picture by Picture 2 (PBP2): 30 - English FSN1986 - 11/2017...
-
Page 31: Standard Signal Tables
Standard Signal Table PC Supported Mode Horizontal Frequency Vertical Frequency Clock Frequency Resolution (KHz) (Hz) (MHz) 640 x 350 @70Hz 31.469 70.087 25.175 640 x 480 @60Hz 31.469 59.940 25.175 640 x 480 @72Hz 37.861 72.809 31.500 640 x 480 @75Hz 37.500 75.000 31.500... -
Page 32: Signal Connector Pin Assignments
Signal Connector Pin Assignments DC Input Pin No. Assignment Ground Ground +24V (DC) F.G. (ground) +24V (DC) VGA & Debug Port Interface Connector Pin No. Assignment Pin No. Assignment GREEN TXD (Monitor -> PC) BLUE RXD (PC -> Monitor) DDC 5V / Check Cable GND-RED GND-GREEN GND-BLUE... - Page 33 Signal Connector Pin Assignments S-Video, SDI interface connector Pin No. Description S-Video /Y (Luma) , SDI In S-Video /C (Chroma) , SDI Out Component (RGBS, YPbPr) interface connector Pin No. Description - RGBS Description - YPbPr GREEN BLUE H‐Sync / C‐Sync No Connection R/Pr B/Pb...
-
Page 34: General Specification
Specification FS-P2404D Item Description Type 24” LED backlit LCD Screen Size 24 inch(16:10) Maximum Resolution 1920 X 1200 Active Area 518.4 (H)mm x 324.0 (V)mm Pixel Pitch 0.27 x 0.27 Optical Characteristics Display Colors 1.07 Billion colors Contrast Ratio (Typ.) - Page 35 Specification FS-P2604D Item Description Type 26” LED backlit LCD Screen Size 26 inch(16:9) Maximum Resolution 1920X 1080 Active Area 576.0 (H)mm x 324.0 (V)mm Pixel Pitch 0.3 x 0.3 Optical Characteristics Display Colors 1.07 Billion colors Contrast Ratio (Typ.) 1400:1 Viewing Angle 89°...
-
Page 36: Cleaning Instructions
Cleaning Instructions Precautions Before cleaning, switch the display in stand-by position to prevent the control touch panel from being activated inadvertently by sweeping over the front filter. In stand-by position the touch panel cannot be activated by just sweeping over them. To switch the display on again, you must press the stand-by key again. - Page 37 Cleaning Instructions (continued) Precautions Do NOT use on front filter: Cabinet Proceed as follows: uct for medical equipment. The cabinet has been tested for resistance to the following products: diluted with water between 1:10 and 1:100) English - 37 FSN1986 - 11/2017...
- Page 38 Notes 38 - English FSN1986 - 11/2017...
- Page 40 Thank you for choosing our product. Service Please contact our customer service if you need any information or help with our products. Warranty One year, parts and labor. EC Representative FORESEESON GmbH Industriestrasse 38a, 63150 Heusenstamm, Germany Tel. +49(0)6104-643980 FORESEESON UK Ltd. Unit 71, Barwell Business Park Leatherhead Road, Chessington, Surrey KT9 2NY, UK...
