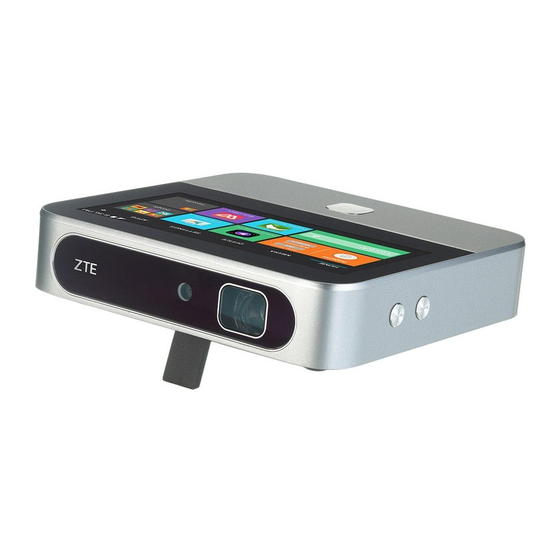

Zte Spro2 Quick Start Manual
  1. Manuals
  2. Brands
  3. Zte Manuals
  4. Projector
  5. Spro2
  6. Quick start manual
Zte Spro2 Quick Start Manual

Zte Spro2 Quick Start Manual

Hide thumbs Also See for Spro2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Spro2
Quick Start Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spro2 and is the answer not in the manual?

Questions and answers

Related Manuals for Zte Spro2

Summary of Contents for Zte Spro2

  • Page 1 Spro2 Quick Start Guide...
  • Page 2 ZTE Corporation. Notice ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at www.zteusa.com) for more information on...
  • Page 3 Images and screenshots used in this guide may differ from the actual product. Trademarks ZTE and Spro2 logos are trademarks of ZTE Corporation. Google and Android are trademarks of Google, Inc. ® The Bluetooth trademark and logos are owned by the Bluetooth SIG, Inc.
  • Page 4 DLP is the trademark of Texas Instruments. microSDHC Logo is a trademark of SD-3C, LLC. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Other trademarks and trade names are the property of their respective owners.

  • Page 5: Table Of Contents

    Using the Touch Screen ..............22 Getting to Know the Home Screen ........... 25 Turning On/Off the Projector ............. 33 Adjusting the Projection ..............34 Projecting a File Saved in Your Spro2 ..........36 Projecting an HDMI Source .............. 37...
  • Page 6 Projecting a File Saved in Your USB Device ........40 Projecting a Source on Your Phone via Miracast (Wi-Fi Display) ..42 Connecting Your Spro2 to a Computer via USB ....... 44 Connecting to a Webcam (Not Included) ......... 46 Enabling Mobile Data Access ............

  • Page 7: Getting To Know Your Spro2

    Getting to Know Your Spro2 Focus Sensor Projection Lens Indicator Light Volume Up Touch Screen Volume Home Key Down Key Back Key Menu Key Power Key Main Microphone...
  • Page 8 Auxiliary Microphone USB Jack HDMI Input Port Headset Jack Power Socket microSDHC micro-SIM Card Tray Card Tray Ventilation Port Kickstand Speakers Tripod Receptacle...
  • Page 9 Projection Lens Project the display on a surface. WARNING! Do not look directly into the projection lens or point the lens toward people or animals’ eyes when the projector is on as this may cause injury to the eyes. Focus Sensor Analyze the clarity of the projected image in order for the projector to adjust its focus automatically.
  • Page 10 Power Key Press and hold to enable or disable airplane mode, power on/off  or restart your Spro2. Press to turn off or on the screen display.  Press twice quickly when the projector is turned on to adjust its ...

  • Page 11: Replacing The Micro-Sim Card

    Spro2 is turned on. WARNING! To avoid damage to Spro2, do not use any other kind of SIM card, or any non-standard micro-SIM card cut from a SIM card. You can get a standard micro-SIM card from your mobile service provider.
  • Page 12 1. Turn your Spro2 upside down. Insert the tip of the tray eject tool into the hole on the micro-SIM card tray and take the tray out of the slot.
  • Page 13 2. Remove the micro-SIM card on the tray and replace a new one.

  • Page 14: Installing The Microsdhc™ Card (Not Included)

    3. Carefully install the tray back. Installing the microSDHC™ Card (Not Included) A microSDHC card can be installed or removed while Spro2 is on. Before removing the microSDHC card, you need to unmount it. See Unmounting the microSDHC Card on page 17.
  • Page 15 1. Turn your Spro2 upside down. Insert the tip of the tray eject tool into the hole on the microSDHC card tray and take the tray out of the slot.
  • Page 16 2. Place the microSDHC card on the tray as shown and carefully install the tray back. NOTE: Some applications may require a microSDHC card to work properly if it stores certain data on it. Therefore, it is recommended that you keep a microSDHC card installed and not remove or replace it unnecessarily.

  • Page 17: Unmounting The Microsdhc Card

    3. When the Unmount SD card menu changes to Mount SD card, you can now safely remove the microSDHC card from Spro2. Charging the Battery You should fully charge the battery before using Spro2. Out of the box the battery should have enough power for Spro2 to turn on. WARNING! Use only ZTE-approved chargers and cables.
  • Page 18 Spro2 by yourself. By doing so will violate the warranty policy from ZTE. Contact customer service for support. 1. Plug the AC adapter into the power socket on your Spro2 and then put the plug into an electrical outlet.

  • Page 19: Powering On/Off Your Spro2

    NOTE: If the battery is extremely low, you may not be able to power on Spro2 even when it is charging. Allow Spro2 to charge longer and try again. Contact the customer service if you still cannot power on Spro2 after prolonged charging.

  • Page 20: Waking Up Your Spro2

    2. Touch and hold any area of the screen to unlock Spro2. NOTE: If you have set an unlock pattern, a PIN or a password for your Spro2, you’ll need to draw the pattern, or enter the PIN/password to unlock...

  • Page 21: Getting Verizon Wireless Service

    You can find the Device ID and SIM ID on the box label for activation. 2. Turn on your Spro2 and the device will automatically prompt you to sign up for a Verizon Wireless data plan. Follow the on-screen instructions to sign up.

  • Page 22: Using The Touch Screen

    Using the Touch Screen Your Spro2’s touch screen enables you to control actions through a variety of touch gestures. Touch  When you want to type using the onscreen keyboard, or select items on the screen such as onscreen buttons, applications and settings icons, simply touch them with your finger.
  • Page 23 Swipe or Slide  To swipe or slide means to quickly drag your finger vertically or horizontally across the screen.
  • Page 24 Drag  To drag, press and hold your finger with some pressure before you start to move your finger. While dragging, do not release your finger until you have reached the target position. Pinch  In some apps (such as Maps, web browser, and Gallery), you can zoom in and out by placing two fingers on the screen at once and pinching them together (to zoom out) or spreading them apart (to zoom in).

  • Page 25: Getting To Know The Home Screen

    Spro2 sideways. Getting to Know the Home Screen The home screen is the starting point for your Spro2’s applications, functions, and menus. You can customize your home screen by adding tabs, folders, or application shortcuts you need, or remove...
  • Page 26 Touch a tab to access the items in it.  Touch the APPS tab to find all your applications.  Touch other tabs to find application shortcuts, folders and widgets.  With widgets, you can manage some important functions of your  Spro2 right from the home screen.
  • Page 27 Personalizing the Home Screen To add a tab: Touch to add a new tab in the home screen. To edit a tab: Touch and hold the tab and then touch to delete the tab and all items in it, or touch the tab name to enter a new tab name. NOTE: Some tabs, such as the APPS tab and the HOME tab, are pre-configured and cannot be edited.
  • Page 28 To remove an application shortcut: 1. Touch and hold an application icon in any tab other than the APPS tab. 2. Drag the icon to (Remove) at the bottom and release your finger. To organize shortcuts with folders: 1. Touch and hold an application icon in any tab other than the APPS tab.
  • Page 29 To rename a folder: 1. Touch a folder to open it. 2. Touch twice the folder name displayed above the icons in the folder. 3. Enter a new name and touch Done or touch any area outside the folder to save the name. To uninstall an application: 1.
  • Page 30 Using the Notification Panel The notification panel provides quick access to alerts such as new Gmails, new Hangouts message and software updates. To open the notification panel, swipe down from the top of the  screen. Swipe left or right to clear individual notifications or touch ...
  • Page 31 NOTE: Slide left or right on the function icons to find all icons. Status and Notification Icons Your Spro2 will tell you exactly what’s going on by showing you simple icons. Here’s what they mean. Indicator What it means Indicator What it means...
  • Page 32 Indicator What it means Indicator What it means Battery charging Silent mode Battery full Bluetooth on New Gmail™ Connected to a ® message Wi-Fi network Wired headset Open Wi-Fi network connected detected Music playing USB tethering on Unmount external Mobile hotspot on USB device External USB Downloading data...

  • Page 33: Turning On/Off The Projector

    Turning On/Off the Projector You can use the projector embedded in your Spro2 to project the display onto large surfaces. WARNING! Do not look directly into the projection lens or point the lens toward people or animals’ eyes when the projector is on as this may cause...

  • Page 34: Adjusting The Projection

    There are several ways that you can turn on or off the projector. When your Spro2’s screen is turned on, swipe up or down using  THREE fingers on the screen to turn on or off the projector. Drag the status bar down from the top of the screen and touch ...
  • Page 35 To adjust projection focus: 1. Touch the Home Key > SETTINGS tab > Projector > Image. 2. In the Focus section, turn on automatic focus or touch “+” and “-” to make manual adjustment. NOTE: You can also press the Power Key twice quickly to adjust projection focus automatically.

  • Page 36: Projecting A File Saved In Your Spro2

    2. Turn on the projector. 3. Adjust the projection distance and place Spro2 on a flat surface. NOTE: Press the Power Key twice quickly to adjust projection focus...

  • Page 37: Projecting An Hdmi Source

    Projecting an HDMI Source You can project contents via an HDMI cable when connecting your Spro2 to a laptop/PC or TV STB (Set Top Box). If you have an Apple device with the Lighting connector, you need to get a Lightning Digital AV Adapter (not included in the packaging).
  • Page 38 DVI port, DisplayPort and Mini DisplayPort, get a proper adapter to connect the laptop/PC with your Spro2. The maximum resolution of the HDMI source supported by Spro2  is 1080p (1920 × 1080 pixels). When projecting an HDMI source, the maximum resolution of the projection screen is 720p (1280 x 720 pixels).
  • Page 39 If the HDMI source cannot be projected properly when you use a VGA to HDMI adaptor to connect your laptop/PC with Spro2, please follow the instructions below. Use an adaptor which supports 720p output.  Set the screen resolution of your laptop/PC to 1280 × 720 pixels ...

  • Page 40: Projecting A File Saved In Your Usb Device

    “Connect to USB stick” is highlighted. 2. Connect your USB device to Spro2 via the USB jack. 3. Touch the Home Key > APPS tab > File Manager. 4. Touch USB DEVICE to open the file you want to project.
  • Page 41 USB device. The maximum capacity of the portable hard drive supported by  Spro2 is 2 TB; the maximum capacity of the USB flash drive supported is 64 GB. Press the Power Key twice quickly to adjust projection focus ...

  • Page 42: Projecting A Source On Your Phone Via Miracast (Wi-Fi Display)

    Projecting a Source on Your Phone via Miracast (Wi-Fi Display) You can display the content from compatible smart phone on your Spro2 with a Miracast (Wi-Fi Display) link. 1. Turn on the projector. 2. Swipe down the status bar at the top of the screen and touch Miracast to highlight it.
  • Page 43 4. When you see the name of your Spro2 (MF97V) displayed in the available devices section, touch the name. The phone then automatically tries to pair with your Spro2. 5. Touch Accept on your Spro2. After successful connection, the contents in the phone will be displayed on the projector.

  • Page 44: Connecting Your Spro2 To A Computer Via Usb

    Connecting Your Spro2 to a Computer via USB You can connect your Spro2 to a computer with a USB cable (not included) and transfer music, pictures, and other files in both directions. Your Spro2 stores these files in the internal storage or on a removable microSDHC card.
  • Page 45 Media device (MTP): Transfer media files on Windows  ® NOTE: For Windows XP, please install the drivers and Media Player 11 (or later version) when you use Media device (MTP) for the first time. 5. When you are done, disconnect your Spro2 with the computer.

  • Page 46: Connecting To A Webcam (Not Included)

    Connecting to a Webcam (Not Included) You can connect a webcam to Spro2 via the USB jack and have video calls by using a video chat app such as Google Hangouts and Skype. 1. Slide the status bar down to open the notification panel and ensure that “Connect to USB stick”...

  • Page 47: Enabling Mobile Data Access

    NOTES: You can download and install camera apps on Spro2 to get more  functions, such as picture taking and video recording. Not all webcams are supported by Spro2. Please refer to the  webcam manual for detailed instructions. Enabling Mobile Data Access Before using your Spro2 to access the mobile network, you need to enable the data access.

  • Page 48: Sharing Your Mobile Data Connection As A Mobile Hotspot

    NOTE: To connect to a Wi-Fi router that supports WPS, touch Spro2’s Wi-Fi menu and press the WPS button on your router. Sharing Your Mobile Data Connection as a Mobile Hotspot You can share your Spro2’s data connection with other devices by turning your Spro2 into a mobile Wi-Fi hotspot.
  • Page 49 Hotspot. 3. Slide the switch to turn on Mobile Hotspot. 4. On another device, locate your Spro2 via Wi-Fi and connect with Or, if the device supports Wi-Fi Protected Setup, touch the WPS icon on the device, and then touch on your Spro2.

  • Page 50: Using Miracast And Mobile Hotspot Simultaneously

    1. Turn on the Mobile Hotspot function and configure the hotspot name and security options. 2. Turn Miracast on. 3. Connect your phone or device to Spro2 via Miracast or Mobile Hotspot as you need. To use Internet connection shared by Spro2, search for ...
  • Page 51 Your device must support Wi-Fi in the 5 GHz band to use the  hotspot or Miracast while Spro2’s Mobile Hotspot and Miracast are both on. While the Miracast link is not active, at most 10 devices can  connect to the hotspot; while the Miracast link is active, at most 5 devices can connect to the hotspot (or 4 devices if the Miracast link is used by another device).

  • Page 52: For Your Safety

    For Your Safety General Safety Turn off when near Don’t use at gas stations. explosive materials or liquids. Turn off when asked to in Turn off when told to in hospitals and medical aircrafts and airports. facilities. Your device can produce Your device may produce a loud sound.
  • Page 53 Keep away from pacemakers and other Avoid extreme electronic medical temperatures. devices. Avoid contact with liquids. Do not attempt to Keep your device dry. disassemble your device. Only use approved accessories. Radio Frequency (RF) Energy This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States.
  • Page 54 operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. The exposure standard for wireless employs a unit of measurement known as the Specific Absorption Rate, or SAR.

  • Page 55: Fcc Compliance

    CAUTION: Changes or modifications not expressly approved by ZTE could violate the warranty policy. ZTE will not hold any responsibility of any damage related to that. NOTE: This equipment has been tested and found to comply with the limits...
  • Page 56 These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
  • Page 57 Only use the battery for the system for which it is specified.  Only use the battery with a charging system that has been  qualified with the system per CTIA Certification Requirements for Battery System Compliance to IEEE 1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.
  • Page 58 The device shall only be connected to CTIA certified adapters,  products that bear the USB-IF logo or products that have completed the USB-IF compliance program. Distraction Driving Full attention must be given to driving at all times in order to reduce the risk of an accident.
  • Page 59 Always treat your device and its accessories with care and keep it  in a clean and dust-free place. Keep the screen and projection lens clean. A dirty screen or  projection lens may slow down the device’s reaction to your operations or lower projection image quality.
  • Page 60 Do not place your device inside or near heating equipments or  high pressure containers, such as water heaters, microwave ovens, or hot cooking utensils. Otherwise, your device may be damaged. Please check local regulations for disposal of electronic products. ...
  • Page 61 Air Bags Do not place a device in the area over an air bag or in the air bag deployment area as an airbag inflates with great force and serious injury could result. Seizures/Blackouts The device can produce a bright or flashing light. A small percentage of people may be susceptible to blackouts or seizures (even if they have never had one before) when exposed to flashing lights or light patterns such as when playing games or watching video.

  • Page 62: Electrical Safety

    Take lots of breaks to stretch and relax.  Loud Noise This device is capable of producing loud noises, which may damage your hearing. Turn down the volume before using headphones, Bluetooth stereo headsets or other audio devices. Device Heating Your device may become warm during charging and during normal use.
  • Page 63 Faulty and Damaged Products Do not attempt to disassemble the device or its accessories. Only qualified personnel can service or repair the device or its accessories. If your device or its accessories have been submerged in water, punctured, or subjected to a severe fall, do not use it until it has been checked at an authorized service center.
  • Page 64 Hearing Aids People with hearing aids or other cochlear implants may experience interfering noises when using wireless devices or when one is nearby. The level of interference will depend on the type of hearing device and the distance from the interference source, increasing the separation between them may reduce the interference.
  • Page 65 Interference in Vehicles Please note that because of possible interference to electronic equipment, some vehicle manufacturers may forbid the use of your device in their vehicles. Explosive Environments Gas Stations and Explosive Atmospheres In locations with potentially explosive atmospheres, obey all posted signs to turn off wireless devices such as your device or other radio equipment.
