Analog Input
031-1BF60 - AI 8x12Bit 0(4)...20mA

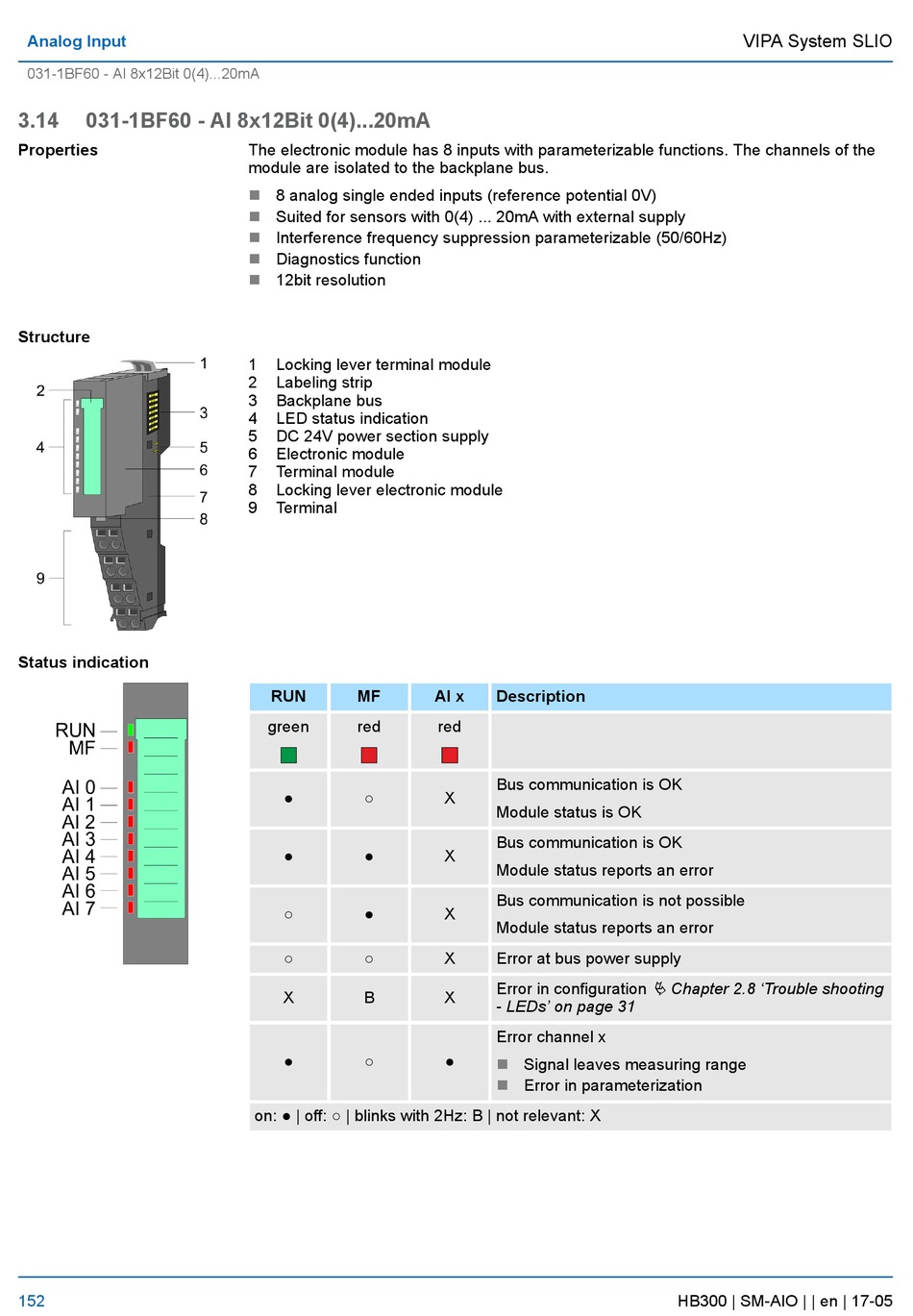

3.14 031-1BF60 - AI 8x12Bit 0(4)...20mA
Properties
Structure
Status indication
152
The electronic module has 8 inputs with parameterizable functions. The channels of the
module are isolated to the backplane bus.
n 8 analog single ended inputs (reference potential 0V)
n Suited for sensors with 0(4) ... 20mA with external supply
n Interference frequency suppression parameterizable (50/60Hz)
n Diagnostics function
n 12bit resolution
1 Locking lever terminal module
2 Labeling strip
3 Backplane bus
4 LED status indication
5 DC 24V power section supply
6 Electronic module
7 Terminal module
8 Locking lever electronic module
9 Terminal
RUN MF
green red
● ○
● ●
○ ●
○ ○
X B
● ○
on: ● | off: ○ | blinks with 2Hz: B | not relevant: X
AI x Description
red
Bus communication is OK
X
Module status is OK
Bus communication is OK
X
Module status reports an error
Bus communication is not possible
X
Module status reports an error
X Error at bus power supply
Error in configuration
X
- LEDs' on page 31
Error channel x
●
n Signal leaves measuring range
Error in parameterization
n
VIPA System SLIO
Ä Chapter 2.8 'Trouble shooting
HB300 | SM-AIO | | en | 17-05
