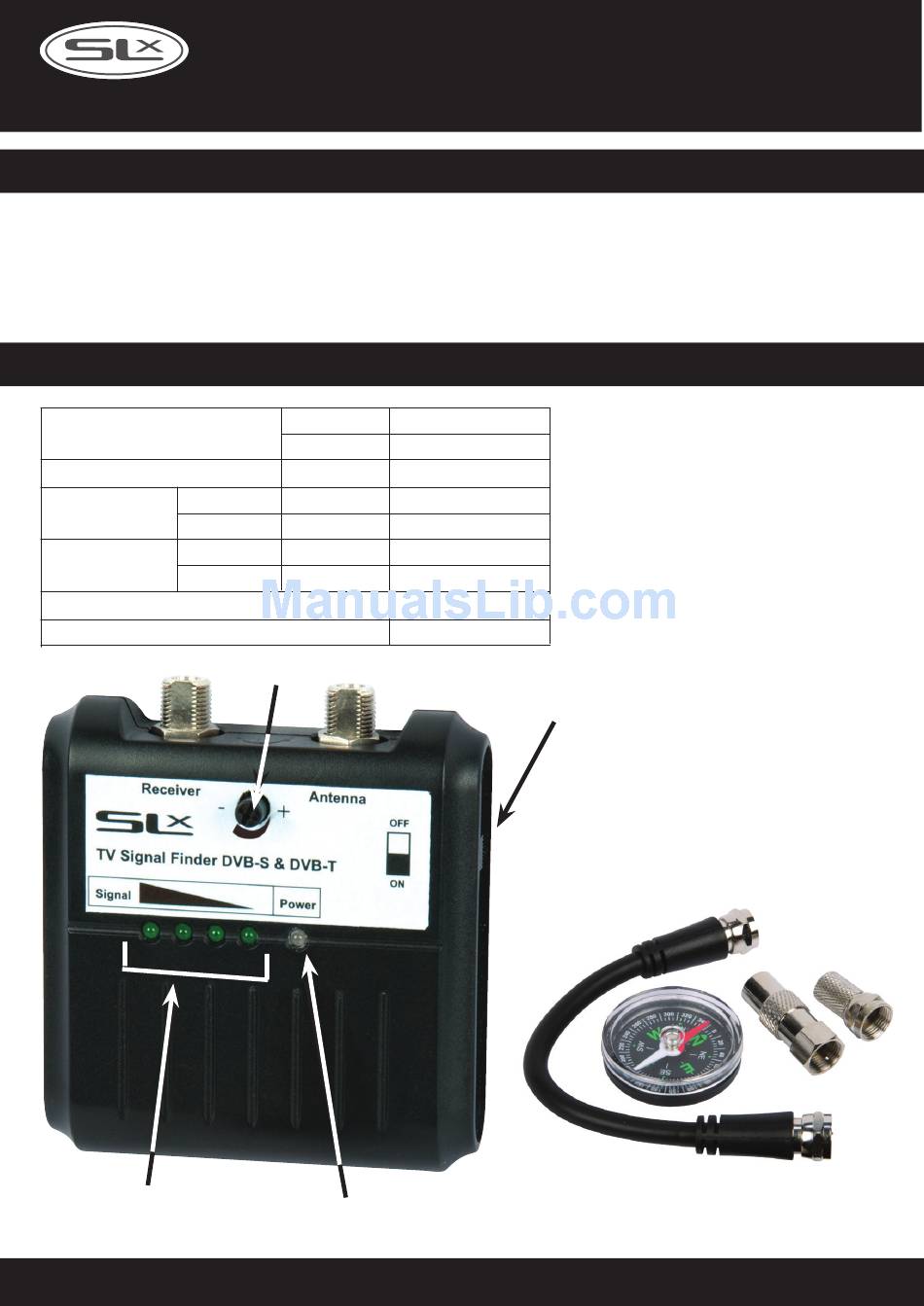

27868HS
Features
❏ LED level indicator
❏ Sensitive meter for in-line use.
❏ Built-in amplifier compensates for insertion loss
❏ Pocket size and lightweight
Specifications
Frequency Range (MHz)
Insertion Loss
Input
Return Loss
Output
Terrestrial
Input Level
Power Requirement
Battery used (For DVB-T Only)
Signal Strength
LEDs
Customer Careline: 08457 573 479 (Local rate - UK Only)
Satellite/Aerial Digital TV Signal Meter
USER GUIDE
Terrestrial
SAT
(dB)
(dB)
(dB)
(dBμV)
SAT
(dBμV)
Sensitivity Control
Power LED
40~862
950~2250
3dB Sat, 6dB TV
8
8
50-80
70-100
15V DC @ 40mA
PP3 9V
Satellite/DVB-T
Switch
Technical Support: www.philex.com/support
Advertisement
Summary of Contents for SLX 27868HS
- Page 1 Satellite/Aerial Digital TV Signal Meter USER GUIDE 27868HS Features ❏ LED level indicator ❏ Sensitive meter for in-line use. ❏ Built-in amplifier compensates for insertion loss ❏ Pocket size and lightweight Specifications Terrestrial 40~862 Frequency Range (MHz) 950~2250 Insertion Loss...
- Page 2 Measuring Satellite Signals PLEASE NOTE: No battery is required when Sensitivity Control the finder is used to measure satellite signals. Suficient power is provded from your satellite receiver LNB (Dish) Input. 1. Slide the switch on the side of the DVB-T/ SAT Finder up into the SAT position.
- Page 3 Measuring DVB-T (digital Freeview™) Signals - continued PLEASE NOTE: To power the meter for measuring Sensitivity Control DVB-T signals you will need to insert a 9V PP3 Optional connection battery (see fitting instructions below). 1. Connect a cable from the UHF Digital †...
- Page 4 Contents 1 x DVB-T/SAT Finder 1 x Compass 1 x F lead 1 x F plug 1 x F to coax adaptor General Safety Precautions • • If you are in any doubt about an installation, Only carry out work outdoors at height if you refer to a qualified aerial/satellite installer.
