SGS EC2000 Owner's Manual

SGS EC2000 Owner's Manual

Engine crane

Advertisement

Quick Links

EC2000

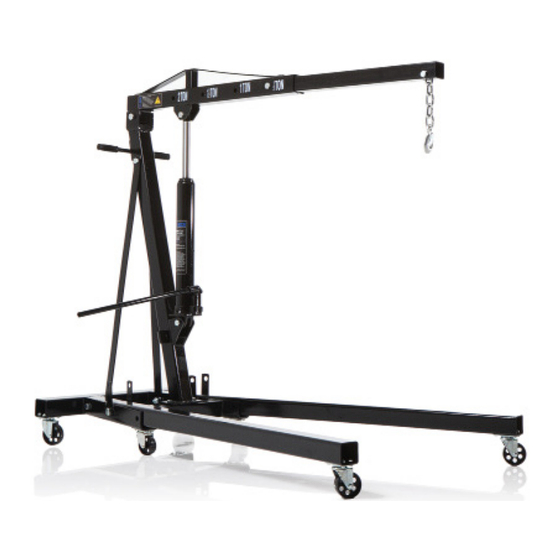

ENGINE CRANE
OWNER'S MANUAL
FOR YOUR SAFETY
PLEASE READ THESE INSTRUCTIONS CAREFULLY
AND RETAIN THEM FOR FUTURE USE.
2 TONNE MAX CAPACITY

Advertisement

loading
Need help?

Need help?

Do you have a question about the EC2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for SGS EC2000

  • Page 1 EC2000 ENGINE CRANE 2 TONNE MAX CAPACITY OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
  • Page 2: Maintenance

    Check ram and plunger every 3 months for any signs of rust or corrosion. Clean as needed and wipe with an oily cloth. When not using the ram always leave the jib in the fully lowered position. WWW.SGS-ENGINEERING.COM PAGE 2...
  • Page 3: Troubleshooting

    OPERATING INSTRUCTIONS TO RAISE LOAD: Close release valve by turning handle clockwise to a snug-tight posi- tion. Do not over-tighten. TO LOWER LOAD: Open release valve by turning handle counter-clockwise very slowly. The speed of the lowering is controlled by how much the handle is turned. TROUBLE SHOOTING TROUBLE PROBABLE CAUSE...
  • Page 4 BOLT M14X95 WASHER 14 NUT M14 SPRING WASHER 16 NUT M16 BOLT M16X100 BOLT M16X115 BOLT M18X125 SPRING WASHER 18 NUT M18 PIN 18X110 SPLIT PIN BOLT M16X90 WASHER 16 BOLT M18X110 WASHER 18 BOLT M16X75 BOLT M14X75 WWW.SGS-ENGINEERING.COM PAGE 4...
  • Page 5 ITEM DESCRIPTION BASE LARGE CASTER SMALL CASTER POST SUPPORT JACK BOOM EXTENSION JACK HANDLE CHAIN/HOOK PAGE 5...
  • Page 6 ITEM DESCRIPTION VALVE BLOCK COPPER WASHER CYLINDER O-RING O-RING RETAINER TOP NUT O-RING SEALING GASKET OIL TANK OIL PLUG SEAL RING TUBE BOLT SCREW BALL SEAL RING RELEASE SPINDLE BALL COPPER WASHER PUMP CYLINDER O-RING BACK UP RING PLUNGER PUMP LINK HANDLE HANDLE SOCKET SHAFT...
  • Page 7: Ec Declaration Of Conformity

    SGS Engineering (UK) Ltd West Side Park Raynesway Derby, DE21 7AZ EC Declaration of Conformity This is an important document and should be retained MANUFACTURER’S NAME: SGS Engineering (UK) Ltd Engine Crane TYPE OF EQUIPMENT: EC2000 PART NUMBER: APPLICATION OF EC COUNCIL DIRECTIVES / STANDARD:...
