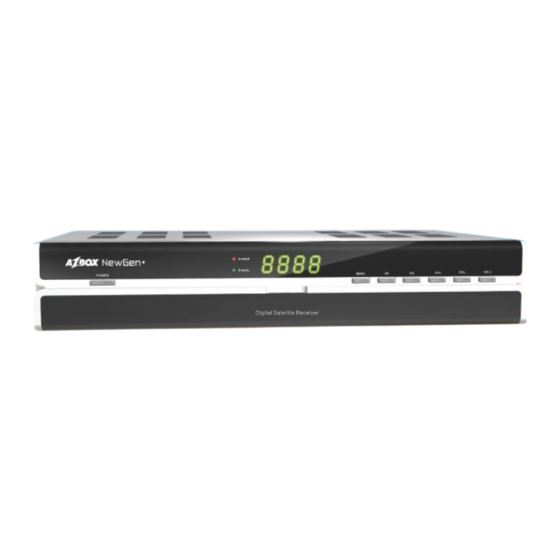

Azbox Newgen+ User Manual

Dvb-s+mpeg2+pvr+pip interactive dual decoder satellite receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Ｄｉｇｉｔａｌ　Ｓａｔｅｌｌｉｔｅ　Ｒｅｃｅｉｖｅｒ
　
　 　 　 ＧＸ６１０７　Ｔｗｉｎ　Ｔｕｎｅｒ
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Newgen+ and is the answer not in the manual?

Questions and answers

Related Manuals for Azbox Newgen+

Summary of Contents for Azbox Newgen+

  • Page 1 Ｄｉｇｉｔａｌ　Ｓａｔｅｌｌｉｔｅ　Ｒｅｃｅｉｖｅｒ 　 　 　 　 ＧＸ６１０７　Ｔｗｉｎ　Ｔｕｎｅｒ User's Guide...

  • Page 2: Limitation Of Liability

    Preface The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    Content ........... Safety Precaution 1. Reference 1.1 General Features ............3 1.2 Accessories ..............4 2. Basic Function 2.1 Front Panel ..............5 2.2 Rear Panel ..............6 2.3 Remote Control Unit ...........7 3. Installation and Connection 3.1 Connecting to TV .............9 3.2 Connecting to Dish LNB ...........10 4.

  • Page 4: Safety Precaution

    Safety Precaution This STB has been designed and manufactured to satisfy the international safety standards. Please read the following safety precautions carefully before operating this receiver. Main Supply: Before operating, please check the units operating voltage is 90~250V AC 50/60Hz. Overload: Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet hand as this may result in electric shock.

  • Page 5: Reference

    1. Reference 1.1 General Features MPEG-2 Digital and Fully DVB-S Compliant SCPC/MCPC Receivable from C/KU-Band Satellite User Friendly OSD Menu with Full Function Installation by Easy Setup Guide 100 Satellites, 4000 Transponders, 6100 Channels. Brilliant On Screen Graphic Small Picture in Graphic and Zoom in Function 8 Favorite Groups and Parent Lock Function EPG, Including 7 Days Epg and Timer Supports DiSEqC 1.0/1.2 and 22KHz Tone...

  • Page 6: Accessories

    1.2 Accessories A/V Cable Batteries Users manual Remote Control Unit Figure 1. Accessories...

  • Page 7: Basic Function

    2. Basic Function 2.1 Front Panel Figure 2. Front Panel 1. Power Button The POWER button is used to turn the power on or to make it on Standby Mode. 2. Power LED Power indicator. 3. Signal LED Signal indicator. 4.

  • Page 8: Rear Panel

    2.2 Rear Panel Figure 3. Rear Panel Figure 3. Rear Panel 1. TUNER1/2 Connect the Satellite Dish LNB. 2. 0/12V Supply 12V DC to other apparatus. S/PDIF Digital Audio output. Y, Pb, Pr Components Video. 5. AUDIO, VIDEO Connect to Audio/Video of TV. Connect Yellow to Video port, connect Red and White to Audio Right and Audio Left.

  • Page 9: Remote Control Unit

    2.3 Remote Control Unit(RCU) You can control this receiver by this remote controller with full function. Switch the receiver on or off. 1. POWER: 2.TV/R: Switch between TV and RADIO. Turn the sound On/Off. 3. MUTE: 4. NUMERIC KEY (0~9): Change program or input number 5.
  • Page 10 15. AUDIO : Select or change the Audio. 16. PAUSE: Freeze the picture. 17. ZOOM: Picture Zooming function. 18. INFO (i): Show the information of the current channel. 19.F1: No Function 20 F2 SUB: Showing Subtitle information if the channel contains. Activate Multi picture menu and select picture.

  • Page 11: Installation And Connection

    3. Installation and Connection The following diagram shows you the connections among receiver, TV, LNB and other equipment, please read this first if you are not sure about the connection, and it will guide you to the correct connection. 3.1 Connecting to TV Figure 5.

  • Page 12: Connecting To Dish Lnb

    3.2 Connecting to Dish LNB You can connect one fixed dish LNB directly to the LNB IN, or connect at least two dish LNB by DiSEqC Switch, you can also connect to HH mount dish LNB. Figure 6. Connecting to Dish LNB -10-...
  • Page 13 Figure 7. Connecting to Dish LNB -11-...

  • Page 14: Installation And Operation

    4. Installation and Operation After connecting the receiver to other required equipment, turn on the receiver, there should be no channel information available at the first startup; you need to follow the procedure to setup your receiver to search the channel --Main Menu-- Press MENU button to activate main menu, main menu consists of Installation, service organization，STB setting ,STB status, USB Menu, Ethernet Setting, CA Menu.
  • Page 15 : Satellite List Enter this picture, you can see the presorted Satellite list, in this menu, you can press the UP/DOWN keys choose the satellite which you want to use, then press the OK to confirm the setting, you can setting other parameters. b: Transponder List If you change the satellite, the transponder will be changed automatically.
  • Page 16 f :Motor When you Enable this option, and press OK, you will get this window to show you how to adjust position of the dish. Move Auto [W/E] Press RIGHT/LEFT button, the dish will be motorized to East/West continuously, it will stop until it find the best signal. Move west-east Push RIGHT/LEFT button, the dish will be motorized to East/West step by step until you find the best signal showed on the signal bar.
  • Page 17 g:Tuner Select Enter this menu, select tuner which one you input the signal, tuner1 or tuner2 supply change NOTE: If you don’t know any message about the satellite you can press the RED key using blind search. 4.1.2 Automatic Satellites Search Selecting one satellite, and press OK to mark, you can select more satellite at this time, but make sure they are all configured to your DiSEqC Switch,...

  • Page 18: Ftp Download

    4.1.4 Transfer Data Here you can transfer main sw or channel data from pc to STB FTP Download VFTP download some receiver like message, sw, channel list, so you should connect the Ethernet, then connect FTP severs. 4.1.5 Reset Factory Default You can erase all the channels and settings you made by selecting ALL, if you only want to erase the channels you searched and stored, please...
  • Page 19 4.1.6 USALS Setup You can setup the Dish position to the satellite you want to search, you need to check the detailed information from internet and input the accurate parameters about your local position. 4.2 Service Organizing Enter the service organizing; you can set channel fav, edit channels, like lock, rename, delete, and so 4.2.1Edit Favorites Here you can select your favorite channel and...
  • Page 20 4.2.3 Remove Satellite Select one satellite and press OK to mark, after you exit this menu, you will be asked to confirm whether delete the satellite or not. If you select YES, all the channels in the selected satellite will be deleted.
  • Page 21 4.3.1Output Setting You can setup TV type PAL/NTSC, select TV screen mode either 4:3 or 16:9 according to the TV type and choose Scart output either CVBS or RGB according to the Standard of your country. You also can set the video change. 4.3.2Parent Lock This function prevents children or unauthorized persons from watching programs.
  • Page 22 4.3.5Timer Setting Here you can set Timer, Event Timer and Sleep Timer. a: Time Setting The default time setup is auto, you can select manual and input the by hand, select the time zone according you country and you will get the correct current time which is based on TDT (Time and Data Table) in the stream of the current channel service.
  • Page 23 4.4 STB Status In this window, you can get the information about the STB, such as product name, software & hardware ver, loader ver and so on. When you need service from the dealer you need to submit this information in order go get the correct and fast after sales service.
  • Page 24 A-1 : Play Stream OK : View play list / Play the selected file in play list Play the selected file in play list / Resume playing file ■ : Stop playing file Play the previous item : Play the next item I I / PAUSE : Pause Adjust volume...
  • Page 25 Play the next item Play the previous/ next item EXIT : Exit playing state and return to file list menu A-5: Download Software/Database 1) Press key to switch to “Software” file list of the current folder 2) Press OK key to open and download the selected file USB PVR: If the event timer record status is YES, the channel will be recorded in PIP mode .Use...

  • Page 26: Other Useful Information

    4.6.1 IP Setting press the Green key, start auto search IP, the receiver will reboot. Press Blue key, change the net port, and press Red key can set IP by hand 4.7 CA Menu Press OK enter the CA menu in this view, you can find some CA message 4.8 Other Useful Information This will guide you on how to use general info while...
  • Page 27 Recall Press Recall button and you can get the viewed history channel. maximum it can list channels that you recently viewed. ZOOM Picture zooming function. In viewing mode, you can get the favorite channel group by pressing FAV, press to change category.
  • Page 28 You can Switch Day EPG and Weekly EPG by Pressing Green Key. In this menu, press Right/Left button, you can view the different time EPG of one day. In the end, you can get the detailed information about that program by pressing INFO Key.
  • Page 29 Recording ● Press the Start recording, you will be asked record the current channel ,select “YES” or “NO” of you mind, when you select yes ,enter the USB recording, press F1 button then you can view the current channel in big window and selected channel in small windows In this menu, some special operation like this.
  • Page 30 With time shift enabled, the following operations are possible: To go back in time, hold down the button; to go forward, hold down the button Press the pause button again, pause the channels Press the Exit button, you will be asked whether exit or save the program data, select yes or no you want.

  • Page 31: Additional Information

    5. Additional Information 5.1 Problem Solving You might meet abnormal working of this STB with various reasons, check the following which may help you. Problem Possible causes What to do LED on the front panel fail to light Check if the mains supply cable is plugged into the power Mains supply cable is not connected.

  • Page 32: Technical Specification

    5.2 Technical Specification Tuner & Demodulator Frequency Range 950 MHz to 2150 MHz Input Connector F-type, IEC 169-24, Female Signal Level -25 to -65 dBm RF Impedance 75Ω¸unbalanced IF Band width 55 MHz/8Hz(Per 5Msps) LNB Power & Vertical : +13 V, 14V +/-5% Polarization Horizontal : +18 V, 19V+/-5% Current : 500 mA Max.

  • Page 33: Menu Screen Structure

    5.3 Menu Screen Structure -31-...

  • Page 34: Glossary

    5.4 Glossary Antenna A device that collects and radiates electromagnetic waves. Includes a satellite dish and broadband antenna. DiSEqC DiSEqC(Digital Satellite Equipment Control)system, it is a communication bus between satellite receivers and peripheral equipment using only the existing coaxial cable. The Digital Video Broadcast group was created to establish a technical framework for the introduction of digital video broadcasting systems.
  • Page 35 PID(Packet Identifier) A set of numbers that identifies transport stream packets containing data from a single data stream. Polarization Polarization allows several programmers to be fit into the same frequency band. The signals from a satellite are transmitted either with linear (vertical or horizontal) polarization or circular (right or left) polarization.
