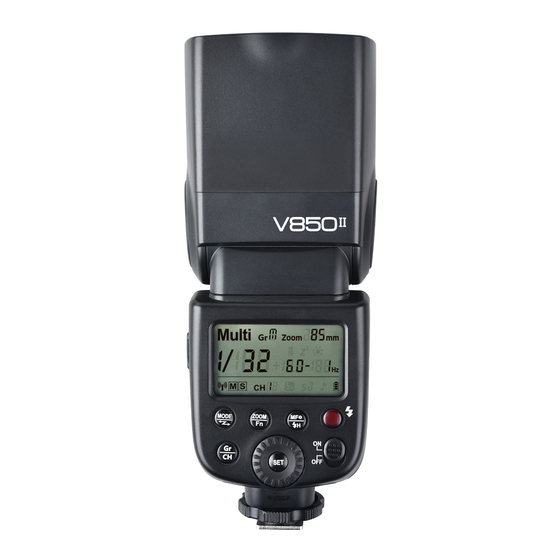

Godox V850II Manual

Hide thumbs Also See for V850II:
Table of Contents

Advertisement

Quick Links

Foreword
Thank you for purchasing a GODOX product.
V850II Li-ion camera lash adopts Godox wireless X system and 2.4G
ratio transmission, which is compatible with AD360II-C, AD360II-N,
TT685C, TT685N, X1T-C, X1T-N, etc. Fit all DSLR camera brands
e.g. Canon, Nikon, Sony, etc.
This V850II camera lash features:
• GN60 (m ISO 100, @200mm). Adjust from 1/1 to 1/128 in
1/3rd stops
• Built-in 2.4G wireless transmission to support transmitting and
receiving
• High speed sync, wireless remote control, multi flash and
manual focus assist
• Stable consistency and color temperature with good even
lighting
• User-friendly LCD display & control panel

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V850II and is the answer not in the manual?

Questions and answers

Related Manuals for Godox V850II

Summary of Contents for Godox V850II

  • Page 1 Foreword Thank you for purchasing a GODOX product. V850II Li-ion camera lash adopts Godox wireless X system and 2.4G ratio transmission, which is compatible with AD360II-C, AD360II-N, TT685C, TT685N, X1T-C, X1T-N, etc. Fit all DSLR camera brands e.g. Canon, Nikon, Sony, etc.

  • Page 2: For Your Safety

    For Your Safety • Always keep this product dry. Do not use in rain or in damp conditions. • This product contains high-voltage electronic parts. Touching the high-voltage circuit inside it may result in electric shock. Do not disassemble. Should repairs become necessary, this product must be sent to an authorized maintenance center.

  • Page 3: Table Of Contents

    For Your Safety Name of Parts Body Control Panel LCD Panel What’s in the Box of V850II Kit? What’s in the Box of V850II (only lash unit)? Separately Sold Accessories Battery Attaching to a Camera Using the Flash Power Management...

  • Page 4: Name Of Parts

    Name of Parts ● Body 01. Catchlight Panel 06. Wireless Control Port 02. Built-In Wide Panel 07. Sync Cord Jack (Retracted) 08. Hotshoe 03. Flash Head 09. Lock Ring 04. Optic Control Sensor 10. Battery Compartment 05. Focus Assist Beam 11.

  • Page 5: Lcd Panel

    2. Li-ion Battery Pack 3. Battery Charger 4. Battery Charger Cable 5. Mini Stand 6. Protection Case 7. Instruction Manual ● What's in the Box of V850II (only lash unit)? 1. Flash Unit 5. Mini Stand 6. Protection Case 7. Instruction Manual...

  • Page 6: Separately Sold Accessories

    ● Separately Sold Accessories The product can be used in combination with the following accessories sold separately, so as to achieve best photography effects: X1 TTL wireless lash trigger, Cells II high speed trigger, FT-16S power & trigger control, Car charger, Mini softbox, White &...

  • Page 7: Attaching To A Camera

    ● Loading and Unloading the Battery To load the battery, push the battery compartment cover downward and open it. According to the triangle sign on the battery pack, insert it into the compartment until a white knob locks the battery with a click sound.

  • Page 8: Using The Flash

    Using the Flash 1.Power Management Use ON/OFF Power Switch to power the lash unit on or off. Turn off if it will not be used for an extended period of time. This lash unit has Sleep Function and will enter into sleep status when there is no operation for a long time.
  • Page 9 Press Set Button < > to select the item to be set. The item blinks. Rotate Select Dial < > to set a desired number. Calculating the Shutter Speed During stroboscopic lash, the shutter remains open until the iring stops. Use the provided formula to calculate the shutter speed required to capture the full sequence of lashes: Number of lashes / Firing frequency = Shutter speed For example, if the number of lashes is 10 and the iring frequency is...

  • Page 10: S1 Mode

    *Hi-speed sync triggering mode is effective only when the lash unit is used together with the following lash triggers. 1. Hi-speed sync trigger, e.g., Godox Cells II transceiver. 2. TTL wireless lash trigger X1C 3. TTL wireless lash trigger X1N...

  • Page 11: Custom Function

    *Hi-speed sync triggering mode is not available when V850II is mounted onto the camera. Godox Cells II transceiver TTL wireless lash trigger (Optional） X1C /X1N (Optional） To avoid overheating or deteriorating the lash head during high speed sync lash, the over-temperature protection function will be activated automatically after 10 continuous high-speed lashes and the ecycle time becomes 10 seconds longer.

  • Page 12: Wireless Flash Shooting: Radio (2.4G) Transmission

    > button to select group. In Master mode, groups can be selected from M/A/B/C/D/E; while in Slave mode, groups can be selected from A/B/C/D/E. ● As V850II adopts Godox wireless X system, it is compatible with AD360II-C, AD360II-N, TT685C, TT685N, X1T-C, X1T-N wireless control, etc.
  • Page 13 14. Custom Function----Sleep Function ● This product is equipped with Sleep Function to avoid battery drain when the lash unit is idle. ● Press < > button and hold for 2 seconds to enter the sleep Function Mode. The LCD panel displays “SL”...

  • Page 14: Custom Function

    15. C.Fn Setting Custom Functions Settings & Custom Function Operation Function Description Signs Sleeping Settable Time: 1. Press < > button <3> 3 minutes to enter Custom Time Setting <10> 10 minutes Functions. <30> 30 minutes 2. Turn the Select <60>...

  • Page 15: Protection Function

    Protection Function 1. Over-Temperature Protection ● To avoid overheating and deteriorating the lash head, do not ire more than 30 continuous lashes in fast succession at 1/1 full power. After 30 continuous lashes, allow a rest time of at least 10 minutes.

  • Page 16: Advanced Application

    2. Other Protections The system provides real-time protection to secure the device and your safety. The following lists prompts for your reference: Prompts on Meaning LCD Panel A failure occurs on the temperature sensor. Please send this kit to a maintenance center. A failure occurs on the recycling system so that the lash cannot ire.

  • Page 17: Using The Wide Panel

    ● Creating a Catchlight With the catchlight panel, you can create a catchlight in the subject’s eyes to add life to the facial expression. Point the lash head upward by 90°. Pull out the wide panel. The catchlight panel will come out at the same time.

  • Page 18: Technical Data

    Technical Data Product Model V850II Guide No. GN 60 (m ISO 100) (1/1 power @ 200mm) Vertical Rotation Angle -7°-90° Horizontal Rotation Angle 0-360° Li-ion polymer battery pack Power Source (Model:VB-18) Full Power Flashes Approx. 650 <1.5 seconds Recycle Time Red LED indicator will light up when the lash is ready.

  • Page 19: Fcc Warning

    FCC Warning Any Changes or modiications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
