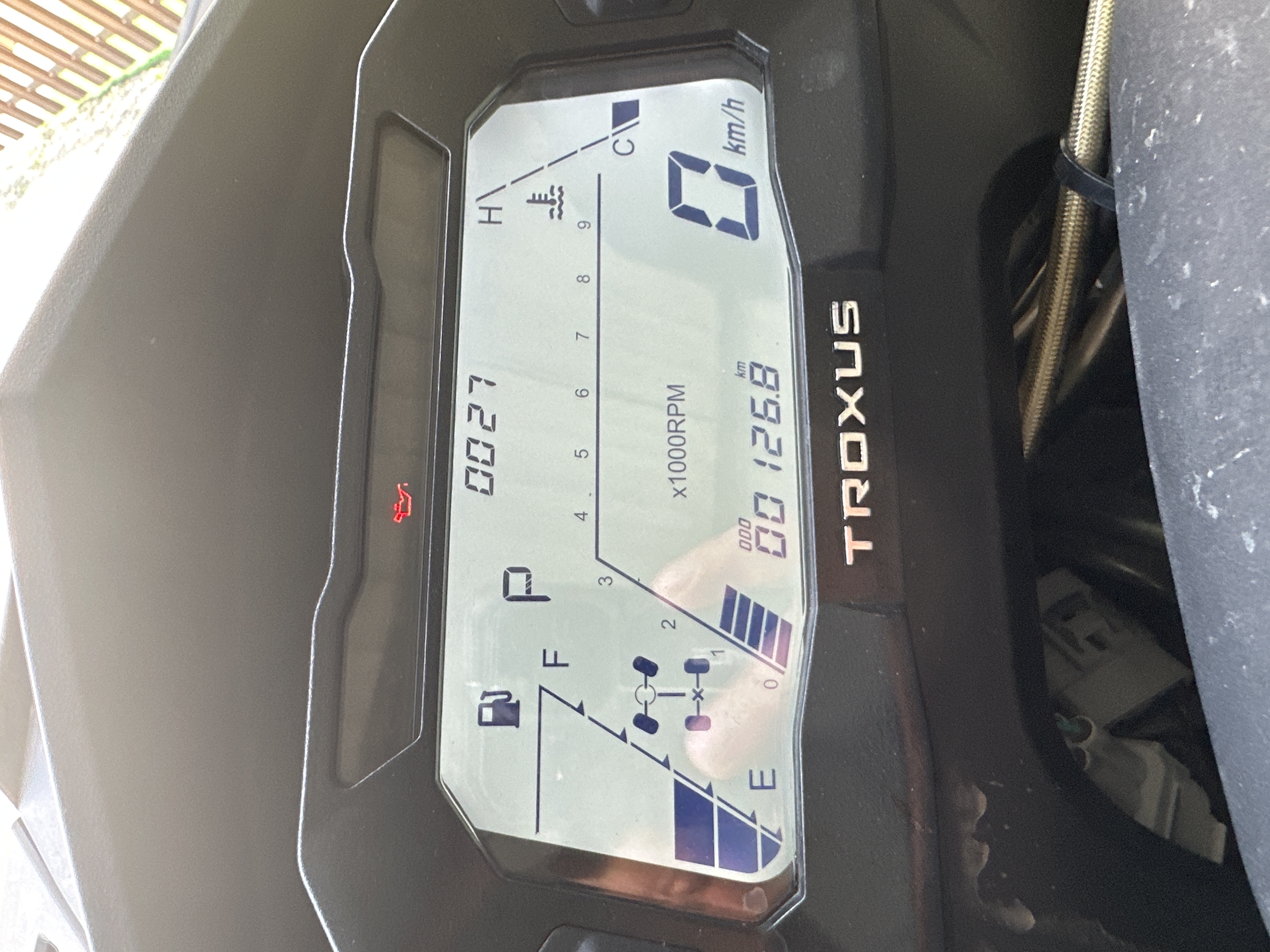

Summary of Contents for Troxus DUNE 900
- Page 1 DUNE 900 DUNE 900 Installation manual...
- Page 2 ZHEJIANG FEISHEN VEHICLES INDUSTRY CO.LTD.
- Page 3 Catalog 1. Front tire installation ………………………………… 2. Front bumper bar installation ………………………… 3. Steering handle installation …………………………… 4. Seat installation ………………………………………… 5. Rear bumper bar installation …………………………… 6. Rear traction device installation …………………… 7. Coverplate of rack installation ……………………… 8. Battery installation ……………………………………… 9.Caution ………………………………………………………...
- Page 4 1.Front tire installation 1）inspection before installation. Check if there is any damage ,deformation on the tire; use the tire pressure tool to test the tire pressure .the tire can be installed if the tire pressure is ok ,take corresponding measures if the tire pressure is not in the range of standard 2）...
- Page 5 2. Front bumper bar installation 1.Remove cotter of traction device ,then remove the hook 2.align the dragline pulley（2） with the upper two holes on the front bumper bar（1）,use hexagonal flange bolt M8×30 （3）to do pre-tighten, then align the bottom two holes in the front bumper bar, ,use hexagonal flange bolt M8×20（4）to tighten it , after this, tighten the upper two bolts.
- Page 6 3. Steering handle installation 1）Adjust steering handle loose the four bolts(2),adjust the steering handle untill it is suitable for driving, tighten the four bolts 2） Shield of steering handle installation install the shield onto the base of steering handle 3) Mounting plate installation as the position shown in (2)the picture, use tapping screw and hexagonal flat screw to fix it...
- Page 7 4) rearview mirror installation fit the rearview mirror on the mounting base, adjust it until it is suitable for driving then tighten it...
- Page 8 4.Rear seat installation As shown in the picture,put forwards the slot(1) into the slot(A),align the position(2) with the position(B),push the hook(3) into beam(C),waggle the chair to check if the chair shake or not , refit it if the chair shake.
- Page 9 Rear bumper bar installation AS shown in the picture,align the two bottom hole of the rear bumper with the second hole on the rear handrail,use 4 inner hexagonal flat screw(3) and 4 hexagonal flange nut to do pre-tighten, use hexagonal flat bolts M8×20 to fix in the upper two hole(5),tighten the bottom nuts.
- Page 10 7.Coverplate of rack installation Fit the left and right coverplate (1.3),use inner hexagonalf lat screw M6×16 to fix it,then fit the middle coverplate .
- Page 11 8.Battery installation 1）Remove bolts M6×25（2）and bolts M8×25（3）,remove front rack.
- Page 12 2）pour electrolyte solution into the battery, seal the liquid inlet with sealing strip ,remove the maintenance coverplate ,put the battery under the position of maintenance coverplate, fit the electrode cable (red one is positive electrode ,black is negative). 3） fit maintenance coverplate after fitting battery, then fit front rack , 9.
