YI Action Gimbal Manual

Hide thumbs

Advertisement

Table of Contents

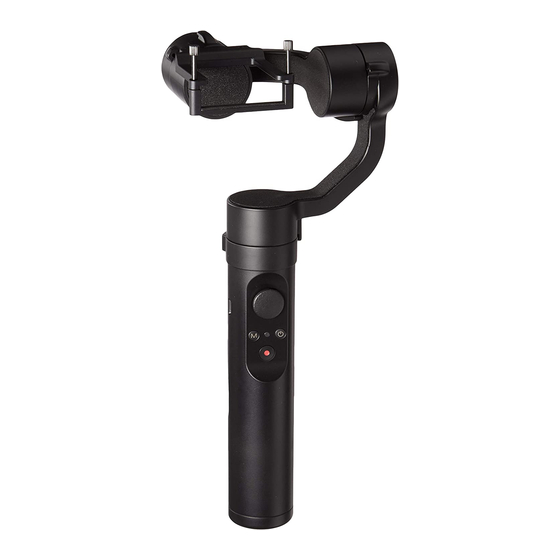

1. Getting to know the gimbal

Roll Motor
Containing Bracket
Mounting Screw
LED Light
Mode Button
Power Button
Shutter Button
Thank you for choosing YI products

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Action Gimbal and is the answer not in the manual?

Questions and answers

Summary of Contents for YI Action Gimbal

  • Page 1 1. Getting to know the gimbal Roll Motor Containing Bracket Mounting Screw Joystick LED Light Mode Button Power Button Shutter Button Thank you for choosing YI products...
  • Page 2 2. How to use the gimbal 1) Charging You can charge YI Action Gimbal through the Micro USB port, the standard charger output should be 5V/ 2A. 2) Indicator 1. When charging with gimbal powered ON, the LED will flash, when charging is complete, the LED will remain 2.
  • Page 3 3) Insert the camera 4) Power on and off Carefully place the camera in the containing bracket, align Press and hold the power button for 3 seconds to turn the securing bracket with the screws, then tighten. on/off the gimbal. Attention: Secure the camera before turning on the gimbal.
  • Page 4 5) Bluetooth pairing 7) Control the gimbal After you’ve secured the action camera to the gimbal, Switch in between modes. turn on the gimbal and then power on Bluetooth (by swiping down or go to settings on camera), short Tilt and roll locked, pan axis follows the movement of the gimbal Green light Pan Mode press Shutter Button on gimbal to pair.
  • Page 5 Joystick: 8) Specifications: 1. Pan and Tilt mode: OFF 2. Lock mode: ALL Item YI Action Gimbal Remarks 3. Pan mode: Up/ Down Working voltage 6.0V~8.4V 3 seconds Boot time Tilt axis mechanical movement range 320° Roll axis mechanical movement range 80°...
  • Page 6 9) Indicator 3. Calibration Gimbal calibration may be required in the following circumstances: Indicator Status Modes/Status 1. The tilt and roll angle is horizontal. 2. Under the lock mode, the panning angle drifts. Slow flash Low battery/charging Do not connect with USB cable when calibrating. Offline Calibration Fast flash Battery is extremely low/Severe error...
  • Page 7 Offline Calibration Horizontal Horizontal Vertical Vertical Vertical Vertical...

  • Page 8: Firmware Update

    6. YI Technology reserves the right to refuse service for products obtained from unofficial channels or used for (e.i.r.p.)is not more than that necessary for successful communication.
