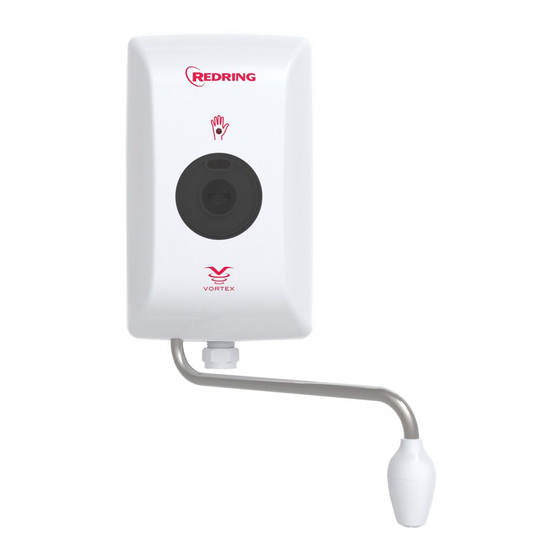

- Page 1 INSTANT AV3S AUTOSENSOR ELECTRIC HANDWASH Installation and User Guide IMPORTANT: This booklet should be left with the user after installation and demonstration.
- Page 2 THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED.
- Page 3 1. Remove the three screws securing the handwash unit cover and remove the cover complete with the central sensor lens. 2. Place the handwash unit on the wall and determine the entry position of the water inlet supply pipe. Ø15mm copper, chrome polished or stainless Plan your own installation carefully.
- Page 4 WARNING: THIS HANDWASH MUST BE EARTHED. The electrical installation must be in accordance with the current BS.7671 (IET Wiring Regulations) and ‘Part P’ of the Building Regulations and/or local regulations 1. The handwash unit is designed for a single phase AC electrical supply. 2.
- Page 6 5. Check that the water flows freely from the handwash within a few seconds. The water from the patented ‘Vortex’ sprayhead will be at full force and at a cool temperature. Check that water is not leaking from the bottom of the case. It is necessary to engage the central sensor lens in the correct position on the 6.
-
Page 7: Cleaning And Maintenance
Redring Model Number: Product AV3S ....... . Load Profile Serial Number: Efficiency Class . - Page 8 For the service work to be undertaken free of charge, the work must only be undertaken by Redring Xpelair Group Limited, or our approved agents. f) Service under guarantee has no effect on the expiry date.
