BOOMPILOT

I N S TA L L AT I O N M A N U A L

HARDI HC5500

w/ JobCom

Table of Contents

Need help?

Do you have a question about the HC5500 and is the answer not in the manual?

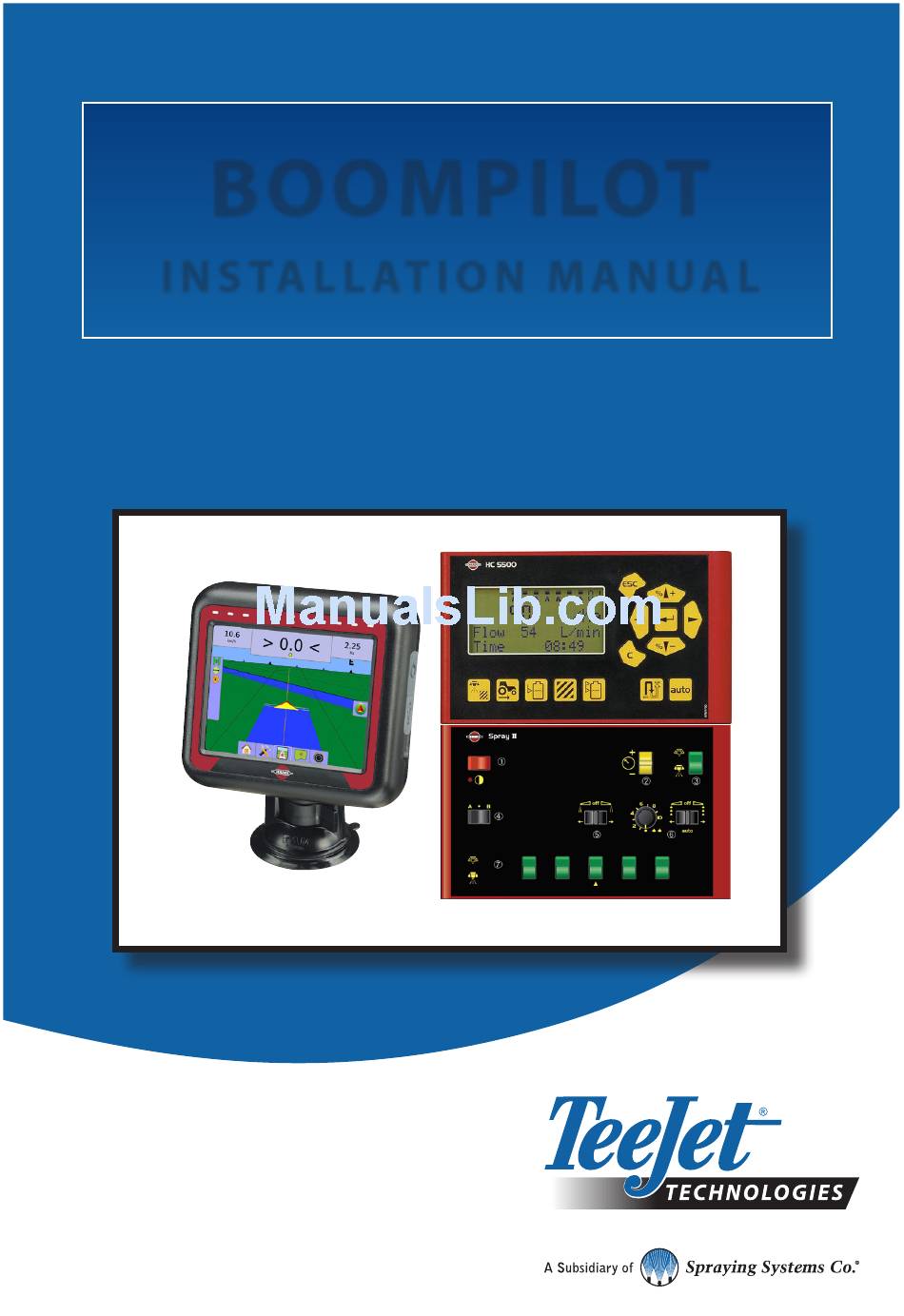

Page 1 BOOMPILOT I N S TA L L AT I O N M A N U A L HARDI HC5500 w/ JobCom...
Page 2 This installation manual covers the installation of Matrix with Hardi HC5500 controller (HC5500 with JobCom). We have endeavoured to deliver a fault free product. To ensure optimal use of the equipment, we ask you to pay great attention when reading this manual.
Page 3 The Matrix in combination with the Hardi smartcable for HC5500 w/jobCom, adds 'Automatic Boom Section Control' to the sprayer. Software version The HARDI HC5500 and the MATRIX communicates via a special RS232 to CAN device. Therefore the software version in the HARDI HC5500 must be v4.16 or higher. 020-056-UK...
Page 4 HARDI HC5500 w/ JobCom SYSTEM DIAGRAM MATRIX 570 020-056-UK...
Page 5 HARDI HC5500 w/ JobCom Required Parts To add BoomPilot to a HARDI HC5500 w/JobCom, the following part numbers are required: Item Part Number Description Quantity 90-xxxxx* Matrix Guidance Controller Kit ............1 45-05826 Power/CAN/Data Cable w/COBO connector ........1 78-05096 SmartCable HARDI HC5500 ............1 45-08101 CAN Termination male 4p WP ............1...
Page 6 HARDI HC5500 w/ JobCom SYSTEM CHECK Please refer to the MATRIX Quick Guide and the Hardi HC5500 user manual. To check the system it's necessary to have full GPS signal so the vehicle must be placed outside. Connect all cables before starting the MATRIX and the HARDI HC5500 controller.
Page 7 HARDI HC5500 w/ JobCom 020-056-UK...
