Installation Instructions
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all
instructions carefully before using the product. Please keep instructions for future reference.
Warranty
•
This light fitting is covered by a 12 month warranty. Please retain proof of purchase and evidence of installation by a
licensed electrician.
•
Warranty will be void if there is any damage due to improper usage or modification to the fitting.
Installation requirements
•
Must be installed by a licensed electrician.
•
All wiring and installation of the light fitting must adhere to local and national wiring rules.
eg. AS/NZS 3000:2007/Amendment 2:2012 Electrical installations.
•
Do not exceed rated power input specification.
•
Select a suitable location for installation;
-
This product is suitable for indoor use only.
•
This ceiling fan remote controller is only suitable for controlling the fan motor and the light kit associated with the
ceiling fan only. Any other use would be considered as misuse and warranty is void.
•
Do not install fan remote control with existing fan wall controller. Remove existing wall controller and replace with a
double pole wall switch, to power the fan remote control. Do not use a solid state dimmer with this ceiling fan remote
control.
Installation directions

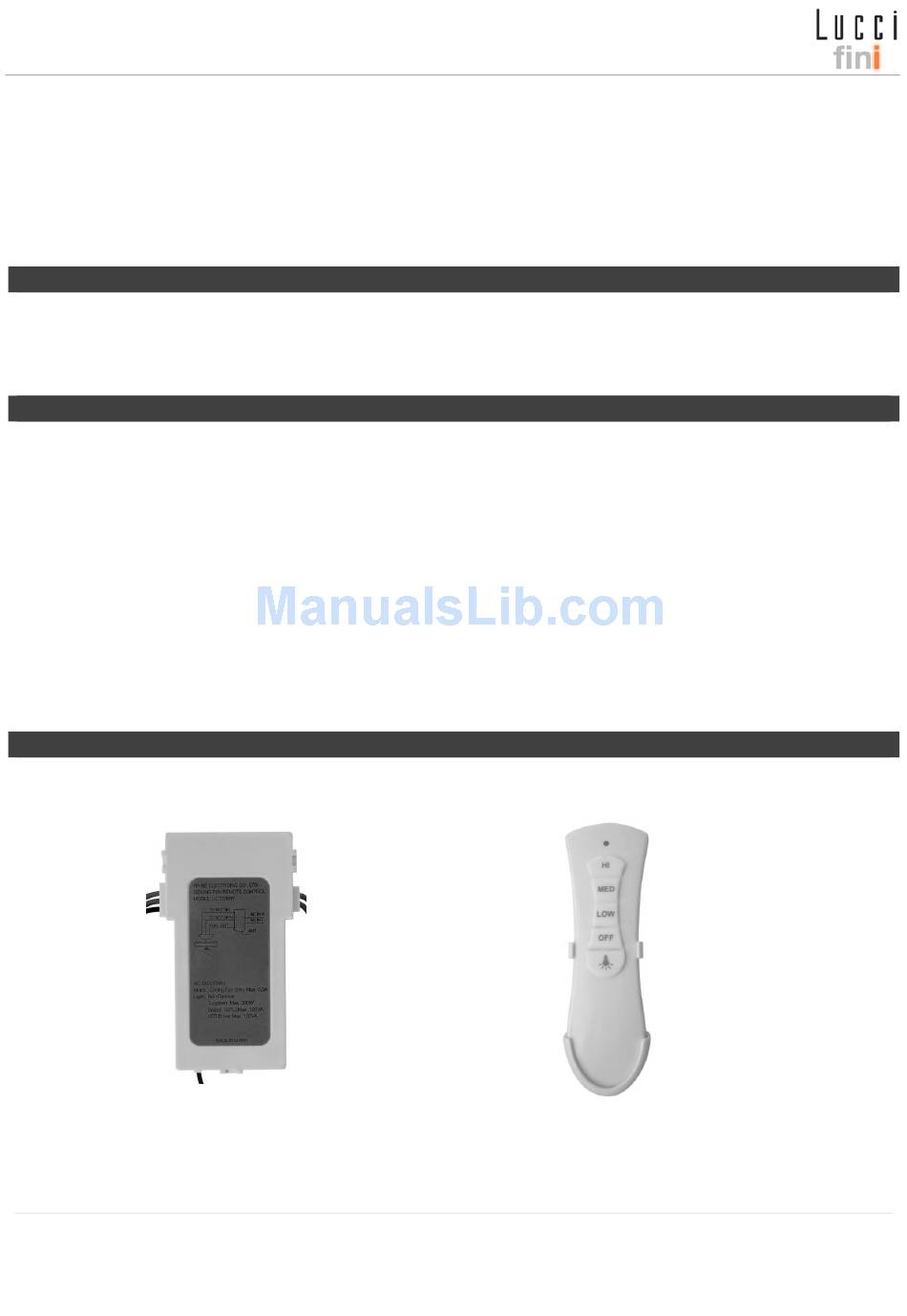

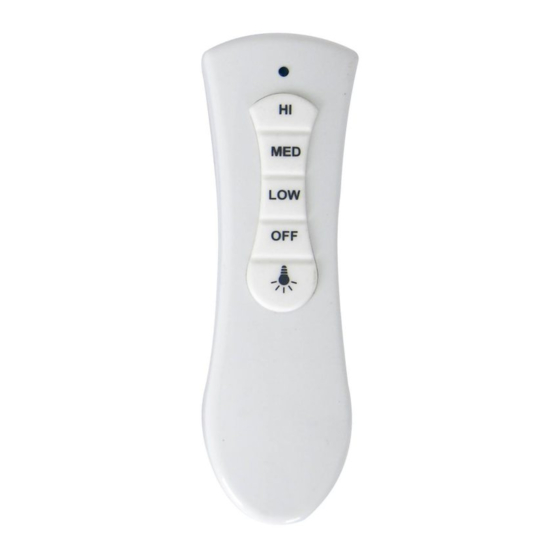

This remote controller is designed to control your ceiling fan speed and light. There are 4 buttons (HI, MED, LOW, OFF)
to control the fan speed and one button to control light on/off.
Receiver (controller)
1 | P a g e
LUCCI Slim Line Fan Remote Control
SKU# 210012
Rated Voltage 220-240V~ 50Hz
Transmitter (remote)
Advertisement
Table of Contents
Related Manuals for LUCCI 210012
Summary of Contents for LUCCI 210012
- Page 1 LUCCI Slim Line Fan Remote Control SKU# 210012 Rated Voltage 220-240V~ 50Hz Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all instructions carefully before using the product. Please keep instructions for future reference. Warranty •...
-
Page 2: Installation Instructions
Installation Instructions Before carrying out the installation the following must be considered: 2 x AAA 1.5V (size) batteries are required to operate the remote control. Remove the battery cover from the back of the remote and insert 2 x AAA. Ensure the polarities are correct as shown in the battery compartment. (Batteries not included) The remote (transmitter) and receiver must be configured so that communication between each other is paired up. -
Page 3: Install The Receiver
Installation Instructions INSTALL THE RECEIVER: WARNING – HIGH VOLTAGE BEFORE CONNECTING THE RECEIVER & CHANGE CODES For your safety: Power to the circuit must be disconnected or switched off. Household power can cause SERIOUS INJURY or DEATH. Wiring must meet all local and national electrical wiring codes. MAKING THE ELECTRICAL CONNECTIONS (see Fig. - Page 4 Installation Instructions Fig. 4 NOTE: Fan installation must be complete including assembly of blades before operating the remote control. NOTE: This remote control is only suitable where the controller/receiver can be inserted inside the canopy cover safely and securely. Ceiling fan with mount bracket type shown in Fig. 4 would be suitable. NOTE: The controller wiring circuit must NOT be shared with any electrical equipment that is sensitive to voltage fluctuation, such as infrared sensor lights.
-
Page 5: Operating The Remote
Installation Instructions OPERATING THE REMOTE: ICONS ON THE REMOTE LCD PANEL Before you start using the remote, take the time to read through this section and get familiar with the button and function of each button. Fig. 5 LED Indicator The red LED indicator on the top of transmitter will flash when the buttons are active. -
Page 6: Troubleshooting
Installation Instructions TROUBLE SHOOTING: Warning: For your safety, ensure the power is switched OFF before starting the troubleshooting procedures TROUBLE PROBABLE CAUSES SUGGESTED REMEDY Replace fuse. Turn ON circuit breaker. Turn Main power not restored. ON wall switch. 1．No functions operate. Wall switch power to the fan Switch wall switch ON, to power the remote is OFF. -
Page 7: Specifications
4. A copy of the original receipt of purchase is presented. In the event of service being required, please contact your local Beacon Lighting Store or call the Lucci Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday. Please make sure you have a copy of the original receipt of purchase and evidence that the product was installed by a licensed electrical contractor manual before making the call.
