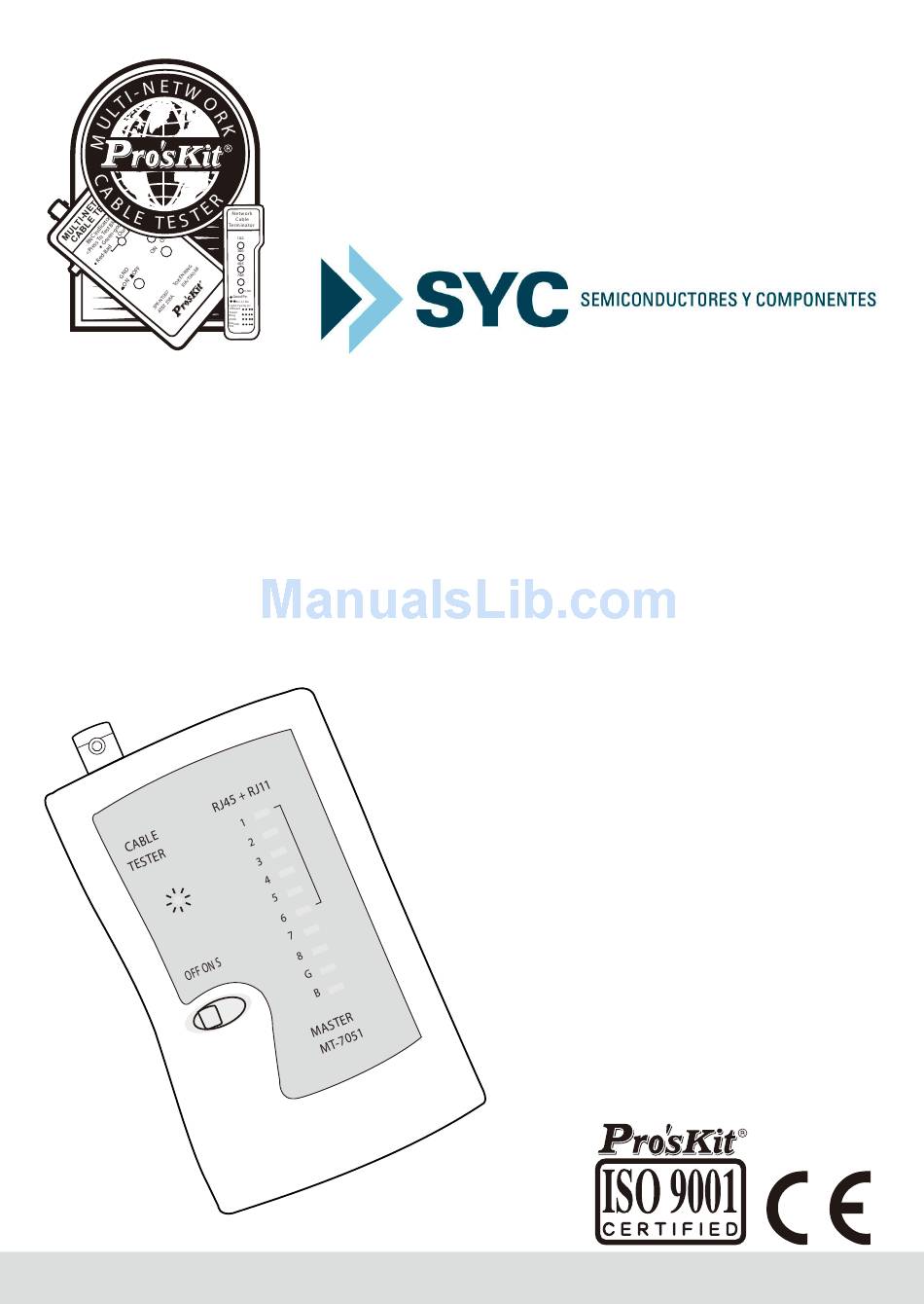

- Page 1 Multi-Network Cable Tester USER'S MANUAL TESTER-RED-7051...
- Page 2 The multi-network cable is widely use for network testing. The multi-network cable tester can automatically check for continuity, shorted, open and crossed wire pairs. Before use the multi-network cable tester, please read the following instructions completely. INDEX MT-7051 MULTI- MODULAR CABLE TESTER......3...
- Page 3 INTRODUCTION These cable testers are specialized to quickly test by auto scanning for wires continuity, misswiring and polarization of thin Ethernet (BNC/TNC), 10-Base-T (UTP/STP), AT&T 258A, TIA568A/B, Token Ring and USOC4/6/8 modular cable. By using the attached remote terminator, you can easily test a cable whatever before or after the cables are installed.
- Page 4 MT-7051 Remote Terminator CABLE RJ45 + RJ11 RJ11 + RJ45 TESTER OFF ON S MASTER REMOTE MT-7051 MT-7051 Master Remote Terminator...
- Page 5 Warning: 1. For protect and safety reasons, please don't use MT-7051 test AC power. 2. Turn on MT-7051, the power light is dark or not light. Please replace new 9V battery. How to Use MT-7051: 1. Turn on power switch, the power light will be flash.( "S" for low speed test ) 2.
