Assembly
Instructions
i

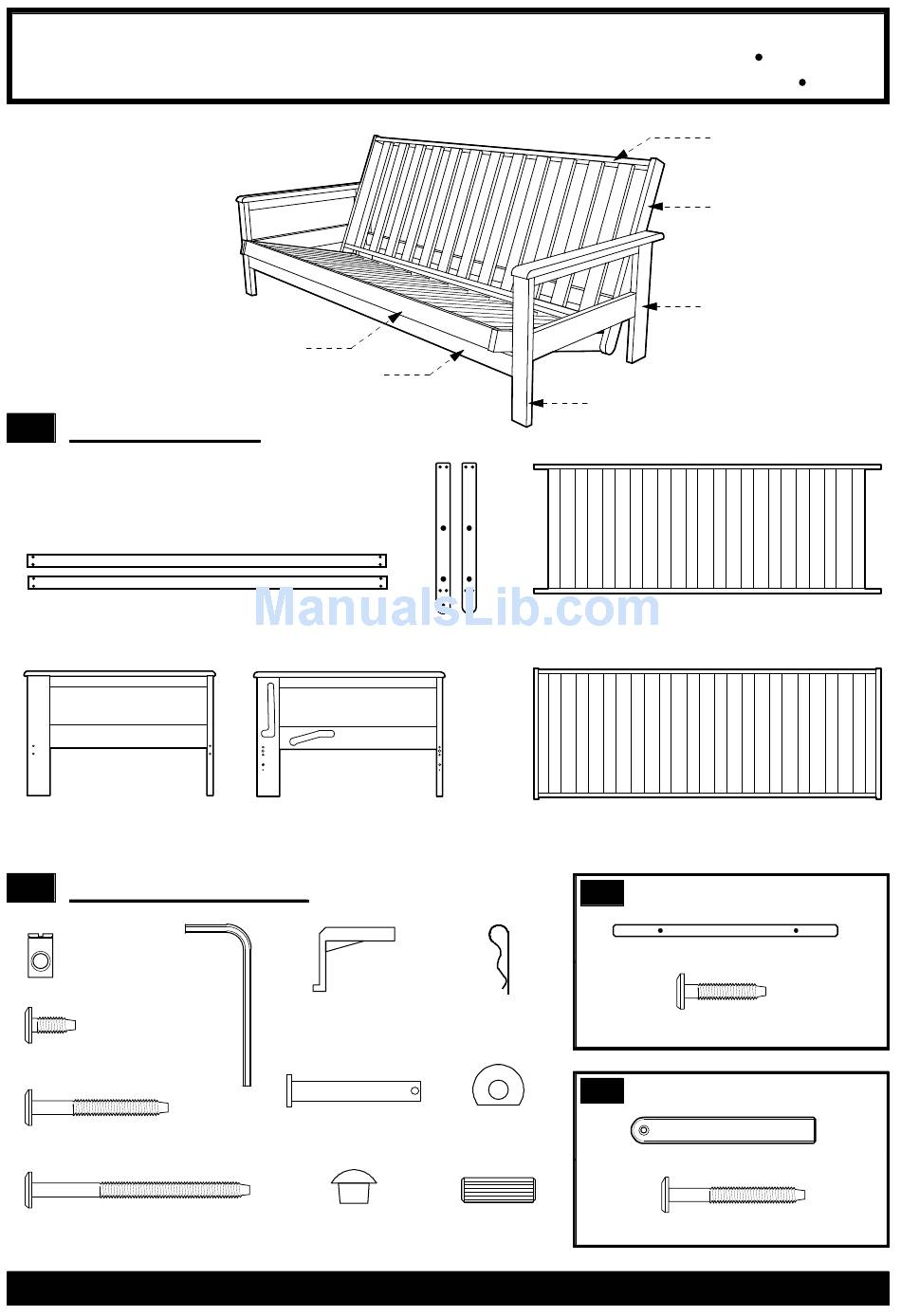

Parts in this box.
1A
Chair size please note:
The Back Deck and Side Rails are already
assembled. Please skip instructions on Page 3.
Stretchers x 2
(Full size illustrated)
1B
Hardware in this box.
Barrel nuts
x 16
Allen Key
x 1
16mm Bolts x 4
For the Stretcher Backets.
60mm Bolts x 12
For the Side Rails and Back Leg.
100mm Bolts x 4
For the Front Leg.
BIFOLD FUTON FRAME
ALBANY
Seat Deck
Front Stretcher
Arms x 2
Stretcher Brackets
x 4
Clevis Pins
x 2
Wood Button
x 4
Side rails x 2
Locking Pins
x 2
Washers
x 2
Wooden Dowel
x 4
Instructions apply to all sizes:
Chair
Love seat
Back Deck
Back Deck Side Rail
Back Leg of Arm
Front Leg of Arm
Back Deck x 1
(Full size illustrated)
Seat Deck x 1
(Full size illustrated)
1C
Full size only: Extra Parts.
Slat Supports x 2
30mm Bolts x 4
1D
Queen size only: Extra parts.
Small Leg x 2
50mm Bolts x 2
Page 1 of 4
Full/Double
Queen
1PA-1001
Advertisement
Table of Contents
Summary of Contents for Gold Bond Futon BIFOLD FUTOR FRAME ALBANY
- Page 1 Assembly BIFOLD FUTON FRAME Instructions apply to all sizes: ALBANY Chair Full/Double Instructions Love seat Queen 1PA-1001 Back Deck Back Deck Side Rail Back Leg of Arm Seat Deck Front Stretcher Front Leg of Arm Parts in this box. Chair size please note: The Back Deck and Side Rails are already assembled.
- Page 2 BIFOLD FUTON FRAME Chair Full/Double Assembly Instructions Love seat Queen 1PA-1001 Fasten Stretcher Brackets to Arm. Fit Wooden Dowels Insert the Stretcher Bracket Cleat into Stretcher Dowel Hole Middle the hole provided. Bracket hole B. IMPORTANT: Don't Hole for Bolt fully tighten Bracket until Stretchers are Hole for Cleat...
- Page 3 BIFOLD FUTON FRAME Chair Full/Double Assembly Instructions Love seat Queen 1PA-1001 Attach the Side Rails to the Back Deck. Wood Buttons Using the Bolts and Barrel Nuts packed in this box, Barrel Nuts attach the Back Side Rails to the Back Deck. Sticker to indicate the 60mm top of the Back Deck...
- Page 4 BIFOLD FUTON FRAME Chair Full/Double Assembly Instructions Love seat Queen 1PA-1001 Fit Back Deck into Position. Your arm style may vary Insert the Back Deck lying flat. Insert one This step can be tricky - it is best done with two people end first, then gently lower the other end into position.
