Model:

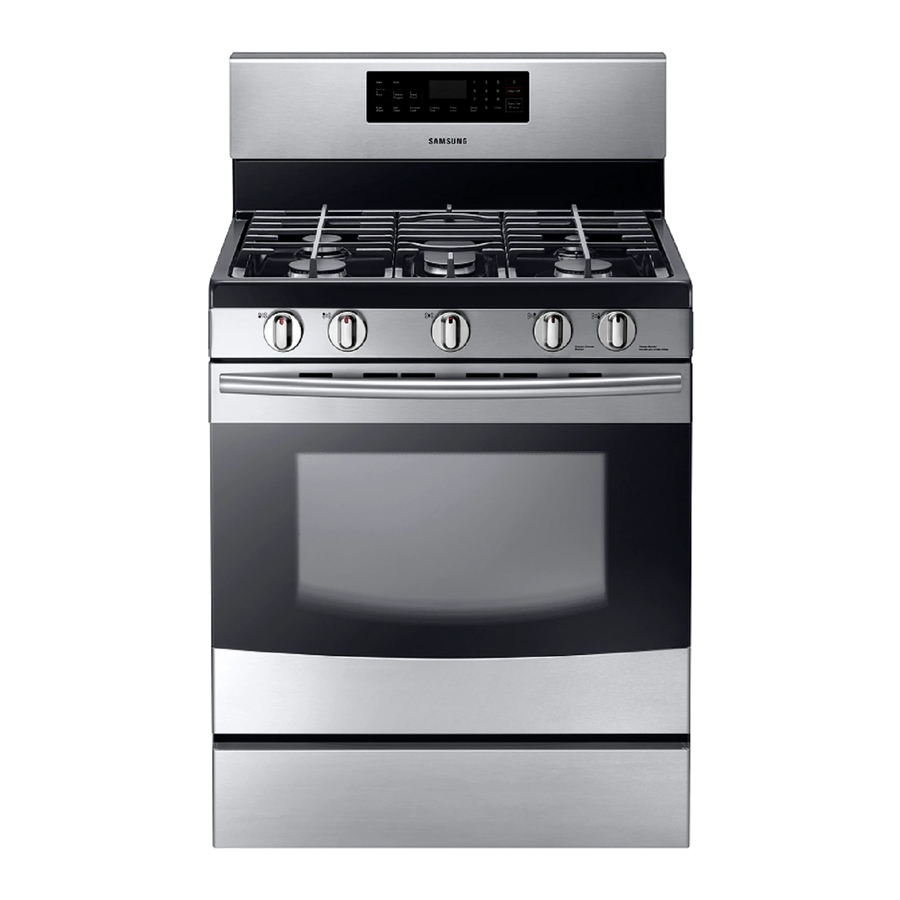

NX58H5650
Bulletins:
Diagnostic Mode –
IMPORTANT SAFETY NOTICE – "For Technicians Only"
sheet is intended for use by persons having electrical, electronic, and mechanical
experience and knowledge at a level generally considered acceptable in the appliance
repair trade. Any attempt to repair a major appliance may result in personal injury and
property damage. The manufacturer or seller cannot be responsible, nor assume any
liability for injury or damage of any kind arising from the use of this data sheet.
Support Information:
HELP: 1-888-751-4086 (Tech Sup. – ASC/SSD)
1-866-894-0637 (Tech Sup. - FE/ME)
GSPN:
http://gspn3.samsungcsportal.com/main.jsp
PLUS ONE:
http://my.plus1solutions.net/clientPortals/samsung
Will let you see the error codes
Fast Track Troubleshooting
Publication # Dr NX58H5650 Production Date 06/06/14
This service data
Advertisement
Related Manuals for Samsung NX58H5650
Summary of Contents for Samsung NX58H5650
- Page 1 Any attempt to repair a major appliance may result in personal injury and property damage. The manufacturer or seller cannot be responsible, nor assume any liability for injury or damage of any kind arising from the use of this data sheet. Publication # Dr NX58H5650 Production Date 06/06/14 Bulletins: Support Information: HELP: 1-888-751-4086 (Tech Sup.
- Page 2 Failure code CAUSE SOLUTION 1.Disconnect power. Open the back cover. Disconnect sensor harness from control. Measure sensor resistance : 1080Ω at room temperature → If there are any problems, replace oven sensor. 2. Check the broil, bake and convection heater. Check the resistance of the each heater. 3.
- Page 6 Trouble Shooting – Error Trouble Shooting...
- Page 9 Schematic Diagram (NX58H5650WS)
