JoinTech JT600 User Manual

Hide thumbs Also See for JT600:
Table of Contents

Advertisement

Quick Links

See also: User Manual
JT600 User Manual
Ver 1.2
Shenzhen joint technology co,;ltd
04-26-2011
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JT600 and is the answer not in the manual?

Questions and answers

Related Manuals for JoinTech JT600

Summary of Contents for JoinTech JT600

  • Page 1 JT600 User Manual Ver 1.2 Shenzhen joint technology co,;ltd 04-26-2011 - 1 -...

  • Page 2: Table Of Contents

    Content JT600 User Manual ............................- 1 - Content ................................. - 2 - ⅠPreface ..............................- 4 - Ⅱ Version History ............................- 4 - Ⅲ Function Table ............................- 5 - Ⅳ Profile and Description ..........................- 6 - 4.1 Profile - 6 -...
  • Page 3 5.1.2.8 Another Name ......................- 14 - 5.1.2.9 Time difference ......................- 14 - 5.1.3 Working Mode/Data Uploading ....................- 15 - 5.1.3.1 Working Mode ......................- 15 - 5.1.3.2 Data Uploading Interval ....................- 16 - 5.1.4 Self Geo-fence/Geo-fence ......................- 16 - 5.1.4.1 Self Geo-fence ......................

  • Page 4: Content

    You can refer to the latest operation manual and relative documents by visiting www.joint-tracking.com. Please read those simple guidelines before use, Jointech assured that the products will work properly under normal conditions, the warranty period would be 12 months from the delivery date, the warranty shall not apply to any defect, failure or damage which caused by improper maintenance, repair, alteration.

  • Page 5: Ⅲ Function Table

    Ⅲ Function Table Function List SMS and GPRS transmission mode Two-way voice function listen-in function 64 Geo-fence support Self Geo-fence 6 types of working mode real-time power monitoring GSM and GPS signals detecting Immediate vehicle position query (the unit will reply Google Earth map link) Support remote/PC setup setting Lower power alert, SOS alert, enter and exit geo-fence alert Solar power supply...

  • Page 6: Ⅳ Profile And Description

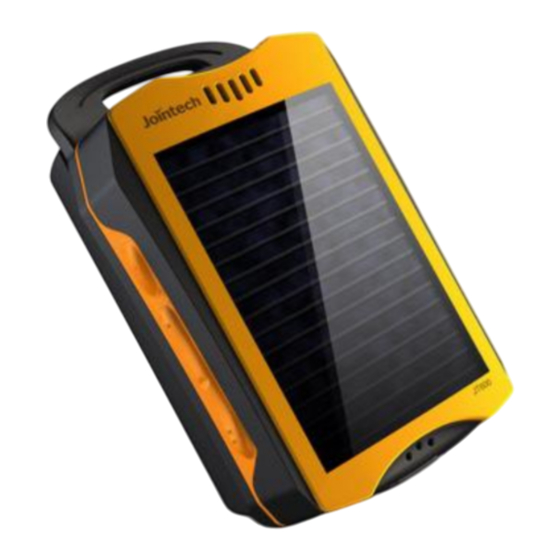

    Ⅳ Profile and Description 4.1 Profile Solar battery panel Backup battery Arc Hook Panel Power on/off CALL Ⅰ CALL Ⅱ Water-proof strip SOS button Flashlight /indication LED SIM card Slot Mini USB power/data 槽 - 6 -...

  • Page 7: Operation Button

    Function Conditions It will call the first preset VIP number . No incoming call is received Press this button for Note: JT600 will be vibrating if you dial this 3 sec number successfully. CALL Ⅰ Press this Answer the coming call...

  • Page 8: Working Mode

    Note: JT600 wo be vibrating if SOS alert 3 sec was sent successfully. press the SOS button once, the LED Normal. Power on indication of SOS would be changed in turn, as below: Press this On: flashlight button...

  • Page 9: Voice Communication

    GSM standby mode: GSM is on the line, the unit can receive phone call and SMS command. 4.4 Voice communication JT600 has the two-way voice communication, which can dial preset phone numbers and receive phone call as well. When a call coming, the unit will ring, press CALL Ⅰbutton once to receive the call.

  • Page 10: Led Indication

    LED charge finished successfully, the LED would be green (Table 3) Ⅴ Configuration and Using 5.1 PC Setup software Notice: Before you configure JT600,Please read the manual.《JT600 Mini-USB Cable Driver InstallationV1.2.pdf》 5.1.1 Get started with this software - 10 -...

  • Page 11: Version/Center Number/Gprs Network

    Choose/Input Com Port number ,and then Click “Open “button Click “Show Msg From” ,There will be pop-up window. It is used to check the commands what you have sent. 5.1.2 Version/Center Number/GPRS Network 5.1.2.1 Read Firmware Version Click “Read” button, you will get the firmware version. - 11 -...

  • Page 12: Sms Center Number

    2) If the working mode is SMS mode(standby/timing/vibration), SMS center number is used for getting the position data/alert message/reply message. 5.1.2.3 VIP Numbers VIP number is used to get the alert message /reply message from JT600. CALL Ⅰ: Set the index 1 number CALL Ⅱ: Set the index 2 number...

  • Page 13: Gprs Network Parameters

    The first time you sent short message command to JT600,this cell phone number would be preset to CALL Ⅰ number. Only when the cell phone number is one of the VIP numbers and SMS center number, Can this number send short message command to JT600.Otherwise, the short message command would be omitted by JT600.

  • Page 14: Adjust Voice Call Volume

    Input /select this value, when the power percent of the battery is low than this. There will be a Low Battery alert. It alerts twice. If JT600 is in GPRS mode, It will alert after 3 seconds .after about 20 minutes, It will alert again. 5.1.2.7 Adjust Voice Call volume Click the “+”,”-”...

  • Page 15: Working Mode/Data Uploading

    480 is a example in china. JT600 outputs Greenwich time. So If you didn‟t set time difference. The SMS message „s time is not correct. If it‟s ahead of Greenwich time. You can input a negative value. Like : 5.1.3 Working Mode/Data Uploading 5.1.3.1 Working Mode...

  • Page 16: Data Uploading Interval

    Note: Because JT600 would be reboot If you set some one mode. So sometimes, You couldn‟t get the prompt message(” operation success”) 5.1.3.2 Data Uploading Interval Example: 10 seconds It means uploading position data every 10 sec. 0 it means uploading continuously. If you input 20 ,it means uploading 20 pieces of position data via SMS or GPRS, and then stop data transmitting.

  • Page 17: Geo-Fence

    Self Geo-fence (only supported by GPRS standby and GPRS vibration mode) Only when the GPS signal is valid, then can you set this .and A circular geo-fence will be generated according to the current position, the radius is 300 meters. 5.1.4.2 Geo-fence Click “Load Google Map”, and You will see the Google map.
  • Page 18 JT600 supports 64 fences. Click “Edit” button, You can get longitude and latitude from the Google map Click “Set” button, and Set this Geo-fence. Click “Disable” button, You can disable this Geo-fence . Click “Read” button, You can get the Geo-fence information what you had set.

  • Page 19: Sms Setting And Using

    5.2 SMS Setting and Using 5.2.1 SMS Command Framework and List name Length (bytes) Note Packet head Fixed "(" Such as P03 ect… command “,”mark separative sign parameter "," to separate the various parameters Packet end Command Description Example name - 19 -...
  • Page 20 Enquire the firmware (P01) version Enquire current (P02) position (P03,1,13919192020) / (P03,0) Enquire/Set SMS Parameter[1]: means setting means enquiring center number Parameter[2]: 13919192020 means SMS center number. Don‟t be more than 15 digital numbers. (P04,1,60,2) (P04,1,120,0) / (P04,0) Parameter[1]: means setting, means enquiring Parameter[2]: means 60 seconds ,uploading every 60 seconds...
  • Page 21 11323.1234,2312.2321,11326.4312,2308.1233 means 11323.1234 left top longitude, Enquire/Set 2312.2321 left top latitude, Geo-fence 11326.4312 right bottom longitude, 2308.1233 right bottom longitude. It‟s a rectangular region. Please set Geo-fence by JT600 Assistant software. Parameter[4]: area 1 means Geo-fence name. - 21 -...
  • Page 22 Cell phone number (P12,1,480) (P12,0,480) / (P12,0) Parameter[1]: means setting, means enquiring Enquire/Set time difference Parameter[2]: means 60*8=480 minutes. 480 is example. JT600 outputs Greenwich time. So we need to adjust it to your local time. - 22 -...

  • Page 23: Short Message Command Example

    1 to 7. 1 indicates minimum volume. 7 indicates maximum volume. (P15,13919192020) Require Listen-in remotely Parameter[1]: 13919192020 means cell phone number. After you send this command ,JT600 will call this number. Enquire current (P16) battery (P17,1,jointech) Enquire/Set another Parameter[1]: means setting,...
  • Page 24 (P11,1,1,15017935411) CALLⅠnumb Set CALL Ⅱ (P11,1,2,15014059956) number Enquire current (P02) position - 24 -...
  • Page 25 (P12,1,480) Set time difference //8*60=480 minutes in china (P10,1,20) Set Low battery alert //20% Set Another (P17,1,John) name - 25 -...
  • Page 26 (only supported by (P09,1,300) Set Self GPRS standby and Geo-fence //300 meter GPRS vibration mode) Listen-in (P15,15017935411) remotely The next commands are used for real-time monitoring setting. Data transmission via GPRS. (P07,1,4) Set working No reply mode //GPRS standby mode - 26 -...
  • Page 27 (P03,1,13504562154) Set SMS center //primary SMS number number (P05,1,211.154.136.219,8888,cmn Set IP et,0) address and cmnet: access point name in parameter china (P06,1,user,pass) Set APN //if there is no APN account, no account need to send this command - 27 -...

  • Page 28: Ⅵ Product Specification

    (P04,1,60,0) Set Data uploading //upload every 60 seconds interval for SMS or continuously GPRS Ⅵ Product Specification 6.1 Physical Parameters and Environmental size unit : 96mm * 51mm * 22mm , bake up battery weight unit : 80g , backup battery: 50g housing plastic Working...

  • Page 29: Gps Module Parameter

    6.2 GPS module parameter Chipset SiRF Star III Frequency L1,1575.42MHz Code C/A Code Protocol NMEA 0183 V2.2 Default:GGA,GSA,GSV,RMC Support:VTG,GLL,ZDA SiRF binary and NMEA Command Available Baud 4,800 to 57,600 bps adjustable Rate Channels FLASH 4Mbits Sensitivity -159dBm Cold start 42 seconds,average Worm start 38 seconds,average Hot start...

  • Page 30: Gsm Module Parameter

    DGPS WAAS,EGNOS,MSAS Datum WGS-84 6.3 GSM module parameter SIM900 Frequency bands Quad-band: GMS 850,EGSM 900,DCS 1800,PCS 1900. The band can be set by AT COMMAND, and default band is EGSM 900 and DCS 1800. Compliant to GSM Phase 2/2+. GSM class Small MS Class 4(2W) at EGSM900 and GSM850 Transmit power...
  • Page 31 choose preferred mode. Supported SIM card: 1.8V ,3V SIM interface Speech codec modes: Audio features Half Rate (ETS 06.20) Full Rate (ETS 06.10) Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80) Echo suppression Connected via 50 Ohm antenna connector or antenna pad. External antenna Serial Port 1 Seven lines on Serial Port Interface Two serial interfaces...

  • Page 32: Ⅶ Standard Package And Optional Accessories

    Ⅶ Standard package and optional accessories Item Accessories name Unit Explain Accessories picture Main body( including 1800mAh Standard battery) Mini-USB charging/configuration Standard cable The latest information can be CD（user manual/ configure Standard downloaded from software） www.joint-tracking.com Charging(directly) Optional Back-up battery（2500mAh） Optional - 32 -...

  • Page 33: Ⅷ Faq

    2. The unit can only be powered on whiles SIM card put in. The unit will powered off as soon as the SIM card pulled out. 3. If you connected the upgrade cable with JT600,It would be shutdown. To power on the unit, you have to pull and plug SIM card and press power button once.
  • Page 34 Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg and the CE is 2.0 W/kg. transmitting at its highest certified power level in all Your Portable GPS Tracker is a radio transmitter and receiver. It is at the highest certified power level, the well below the maximum value.
