NEC C551 Installation Manual

C551 Installation Guide
55" LCD Display
Contents:
Product Description and Notes
Tilt Angle and Rotation
Ventilation Recommendations
Display Dimensions
Display Dimensions with stand
Optional Table Top Stand Dimensions
Dimensions of Optional Wall Mount (WMK-3255S)
Control Codes
Input Terminals
Browser Control

Product Description

Power Consumption (Max Brightness)
*Overall Max refers to when the unit is at max brightness the internal speaker is at max volume
NOTES:
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
•
intended to be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
•
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally
•
to fill the screen using the menus (see "Aspect Modes" in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
•

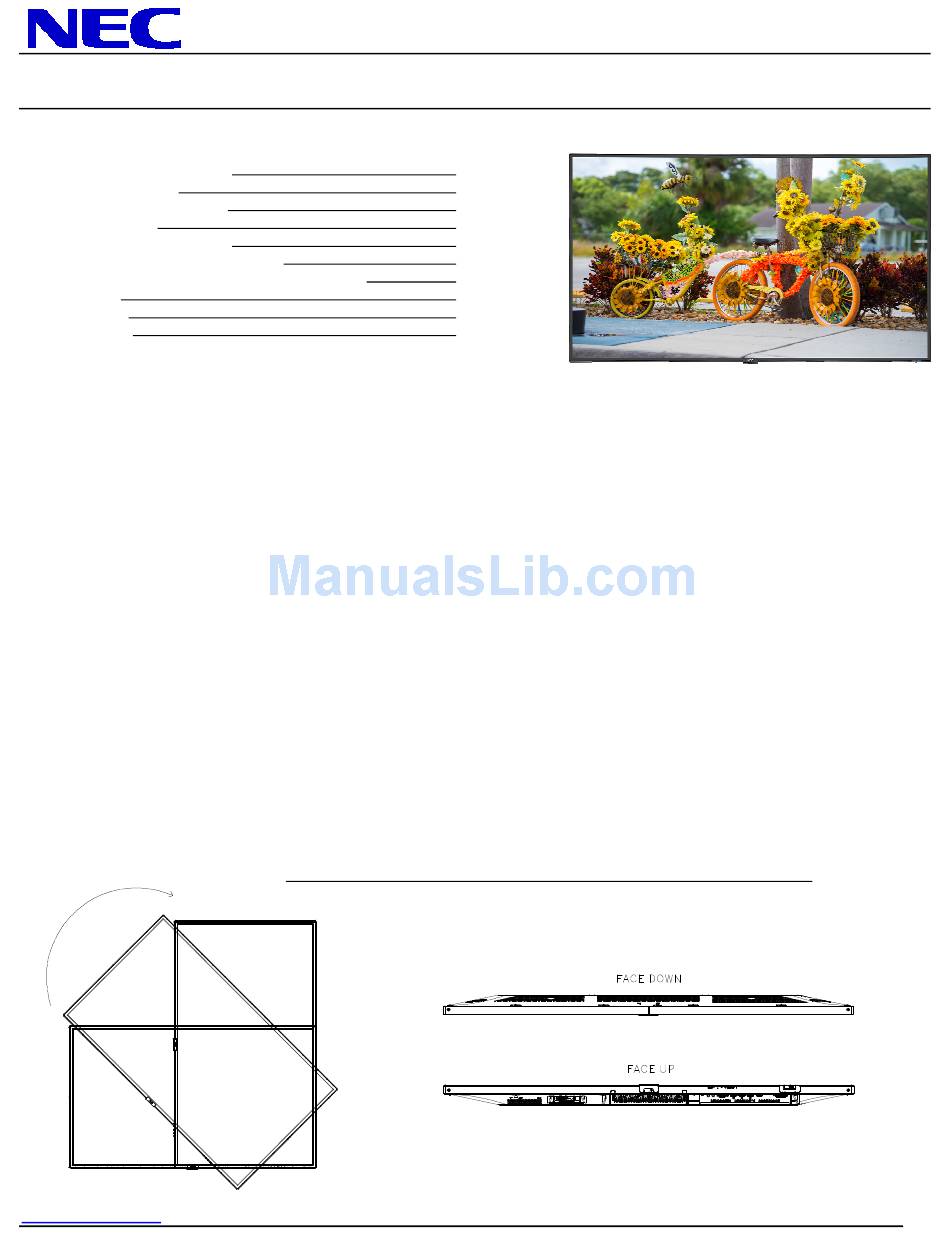

Tilt Angle and Rotation
Monitor may be angled and rotated from normal landscape and portrait orientation to both face up and face down positioning. Rotate
only clockwise for portrait orientation. For Face Up or Face Down orientation, operating temperature must be <35C
www.necdisplay.com
Display Resolution
Maximum Supported Resolution
Power Consumption (Typical)
Power Consumption (Overall Max)*
BTU's (Typical)
BTU's (Max Brightness)
BTU's (Overall Max)*
Net Dimensions
Net Weight
NEC Display Solutions of America, Inc.
Page 1
Page 1
Page 2
Page 3-4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 9
C551
1920 x 1080 @ 60Hz
1920 x 1080 @ 60Hz
75W
90W
115W
255.91 BTU/hr
307.09 BTU/hr
392.40 BTU/hr
48.8 x 27.9 x 1.8 in.
1238.4 x 709.2 x 45.0mm
41.4lbs. / 18.8kg
C551 Page 1 of 9
Rev 1.0
