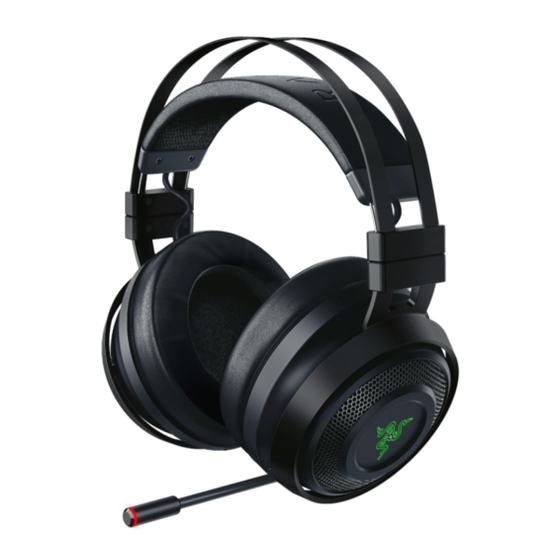

Razer RC30-015902 User Manual

Audio hub and wireless headset

Hide thumbs

page of 26

/ 26
Bookmarks

Quick Links

Download this manual

DTD: 03/05/2017

User manual for Model: RC30-015901 (Audio Hub) and

RC30-015902 (Wireless headset)

Need help?

Do you have a question about the RC30-015902 and is the answer not in the manual?

Questions and answers

Summary of Contents for Razer RC30-015902

Page 1 DTD: 03/05/2017 User manual for Model: RC30-015901 (Audio Hub) and RC30-015902 (Wireless headset)
Page 2 PACKAGE CONTENTS / SYSTEM REQUIREMENTS PACKAGE CONTENTS Wireless Gaming headset (Model: RC30-015902) Headset stand Audio hub (Model: RC30-015901) Optical cable 2x USB to Micro-USB cable Important Product Information Guide SYSTEM REQUIREMENTS PlayStation®4 / PlayStation®4 Slim / PlayStation®4 Pro PC (Windows® 7 or higher) / Mac (OS X 10.9 or higher)* A free USB port *Setup and features may vary.
Page 3 Register your product online at razerzone.com/registration to get real-time information on your product’s warranty status. If you haven’t registered for a Razer ID yet, register now at razerzone.com/razer-id to get a wide range of Razer benefits. Your product’s serial number can be found underneath the leatherette cushion, as shown here.
Page 4 Circumaural, leatherette ear cushions Micro-USB charging port Retractable microphone Volume control / microphone mute button Razer logo backlighting Audio control / audio mute button Microphone LED LED indicator ™ F O R GA M E R S . B Y G AM E R S .
Page 5 Headset stand 7.1 surround sound audio hub Optical output port Optical input port PS4 / PC toggle Micro-USB power port USB headset charging port Dolby Headphone ® button Audio hub power button USB to Micro-USB cables Optical cable ™ F O R G A M E R S . B Y G A M E R S .
Page 6 SETTING UP YOUR RAZER THRESHER ULTIMATE FOR PS4® PREPARING YOUR RAZER THRESHER ULTIMATE FOR PS4® 1. Attach the headset holder to the base. 2. Attach the audio hub to the base. ™ F O R GA M E R S . B Y G AM E R S .
Page 7 3. Place the headset onto the headset stand. CONNECTING YOUR HEADSET TO YOUR PLAYSTATION®4 CONSOLE Note: Make sure to power on your Playstation®4 and log into your PSN account before connecting your Razer Thresher Ultimate For PS4®. 1. Set the PS4 / PC toggle to PS4. ™...
Page 8 2. Connect the audio hub to your Playstation®4 using a USB to Micro-USB cable. 3. Plug the optical cable from the audio hub to your Playstation®4*. *not applicable to Playstation®4 Slim models. 4. From the PS4® home Screen, go to Settings > Sound and Screen > Audio Output Settings. ™...
Page 9 5. On the Primary Output Port, select DIGITAL OUT (OPTlCAL), and then select Dolby Digital 5.1ch. Note: Please make sure that Dolby Digital 5.1ch is the only selected option on the list. 6. On the Audio Format (Priority), select Bitstream (Dolby). ™...
Page 10 7. Go to Settings > Devices > Audio Devices, and then select your Razer headset for the Input Device and Output Device options. [IMAGE PLACEHOLDER] CONNECTING YOUR RAZER THRESHER ULTIMATE FOR PS4® TO YOUR PC 1. Set the PS4 / PC toggle to PC.
Page 11 3. Open your Sound settings from Control Panel > Hardware and Sound > Manage audio devices. You can also right-click on the sound icon on the system tray, and then select Playback devices. 4. In the Playback tab, select your Razer headset from the list, and then click the Set Default button. ™...
Page 12 CONNECTING YOUR RAZER THRESHER ULTIMATE FOR PS4® TO YOUR MAC 1. Set the PS4 / PC toggle to PC. 2. Connect the audio hub to your Mac using a USB to Micro-USB cable. 3. Open your Sound settings from System Preferences > Sound.
Page 13 4. In the Output tab, select Razer Thresher Ultimate For PS4 from the list. 5. In the Input tab, select Razer Thresher Ultimate For PS4 from the list. CHARGING YOUR HEADSET When you first connect to either PC or console, the headset will automatically begin to charge.
Page 14 UNDERSTANDING THE CHARGING NOTIFICATIONS The LED indicator on the headset will send out notifications depending on its current charging status, as shown here: LED NOTIFICATION SOUND NOTIFICATION STATUS Static red Charging None Static green Full Battery None Low battery Blinking red Warning tone ™...
Page 15 USING YOUR RAZER THRESHER ULTIMATE FOR PS4® POWER ON Press and hold the headset power button until you hear the ON tone, the LED indicator is lit, or until the Razer logo starts blinking. Press the audio hub power button to turn it on. The power indicator will blink until it connects to the headset.
Page 16 POWER OFF Press and hold the headset power button until you hear the OFF tone or until the Razer logo and the LED indicator turns off. Press and hold the audio hub power button until the power indicator turns off.
Page 17 PAIRING NOTIFICATIONS The headset/audio hub will display notifications depending on its current pairing status, as shown here: NOTIFICATION HEADSET/AUDIO HUB STATUS Slow blinking blue Searching for a device Fast blinking blue Pairing mode Static blue Connected / Paired ™ F O R GA M E R S . B Y G AM E R S .
Page 18 USING THE DOLBY HEADPHONE TECHNOLOGY Press the Dolby Headphone button to turn on/off the virtual surround sound environment. USING THE AUDIO CONTROL Rotate the audio control to increase or decrease the volume. You will hear a short beep when you reach the minimum or maximum volume.
Page 19 USING THE RETRACTABLE MICROPHONE Pull the tip of the microphone until it is fully extended. Bend the microphone until it is in front of your mouth, then adjust the length as preferred. Press the microphone mute button to mute or unmute the microphone. The microphone LED will light up when muted.
Page 20 USING THE GAME/CHAT BALANCE (PS4 ONLY) Rotate the volume control to increase the in-game volume and decrease the voice chat volume or vice versa. You will hear a short beep when you reach the maximum for either the in-game or voice chat volume.
Page 21 3. From a power off status, press and hold the headset power button for at least 3 seconds. Note: The power indicator on the audio hub, and the Razer logo and the LED indicator on the headset will blink rapidly to show that they are in pairing mode. Keep the pairing devices within close proximity of each other for a faster and more stable connection.
Page 22 4. Wait until pairing is completed and the notification for either device is static green. ™ F O R GA M E R S . B Y G AM E R S .
Page 23 SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your Razer Thresher Ultimate For PS4®, we suggest that you adopt the following guidelines: Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to razersupport.com...
Page 24 Product. In no event shall Razer’s liability exceed the retail purchase price of the Product.
Page 25 COSTS OF PROCUREMENT For the avoidance of doubt, in no event will Razer be liable for any costs of procurement unless it has been advised of the possibility of such damages, and in no case shall Razer be liable for any costs of procurement liability exceeding the retail purchase price of the Product.
Page 26 Canada Statement This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
