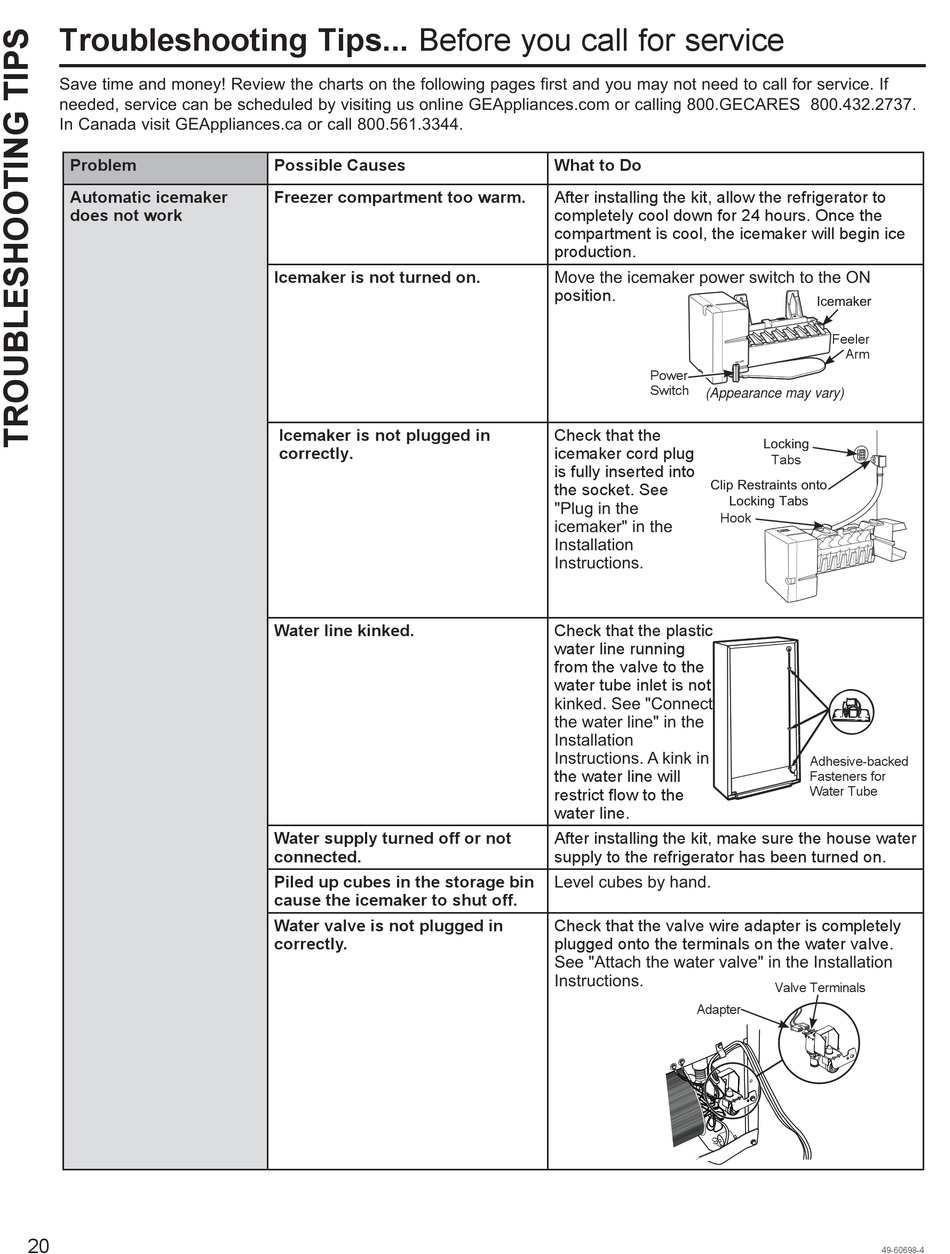

Troubleshooting Tips... Before you call for service
Problem
Automatic icemaker
does not work
20
Possible Causes
Freezer compartment too warm.
Icemaker is not turned on.
Icemaker is not plugged in
correctly.
Water line kinked.
Water supply turned off or not
connected.
Piled up cubes in the storage bin
cause the icemaker to shut off.
Water valve is not plugged in
correctly.
What to Do
After installing the kit, allow the refrigerator to
completely cool down for 24 hours. Once the
compartment is cool, the icemaker will begin ice
production.
position.
Power
Switch
(Appearance may vary)
Check that the
icemaker cord plug
is fully inserted into
the socket. See
Hook
Check that the plastic
water line running
from the valve to the
water tube inlet is not
the water line will
restrict flow to the
water line.
After installing the kit, make sure the house water
supply to the refrigerator has been turned on.
Check that the valve wire adapter is completely
plugged onto the terminals on the water valve.
Adapter
Feeler
Arm
Tabs
Adhesive-backed
Fasteners for
Water Tube
Valve Terminals
