Proficient Audio Systems CC525 Owner's Manual

Dedicated Center Channel Speaker
INTRODUCTION
Timbre-matched with Proficient's complete line of Ceiling and
Wall Series speakers, the CC525 is the perfect Dedicated
Center Channel for your home theater system.

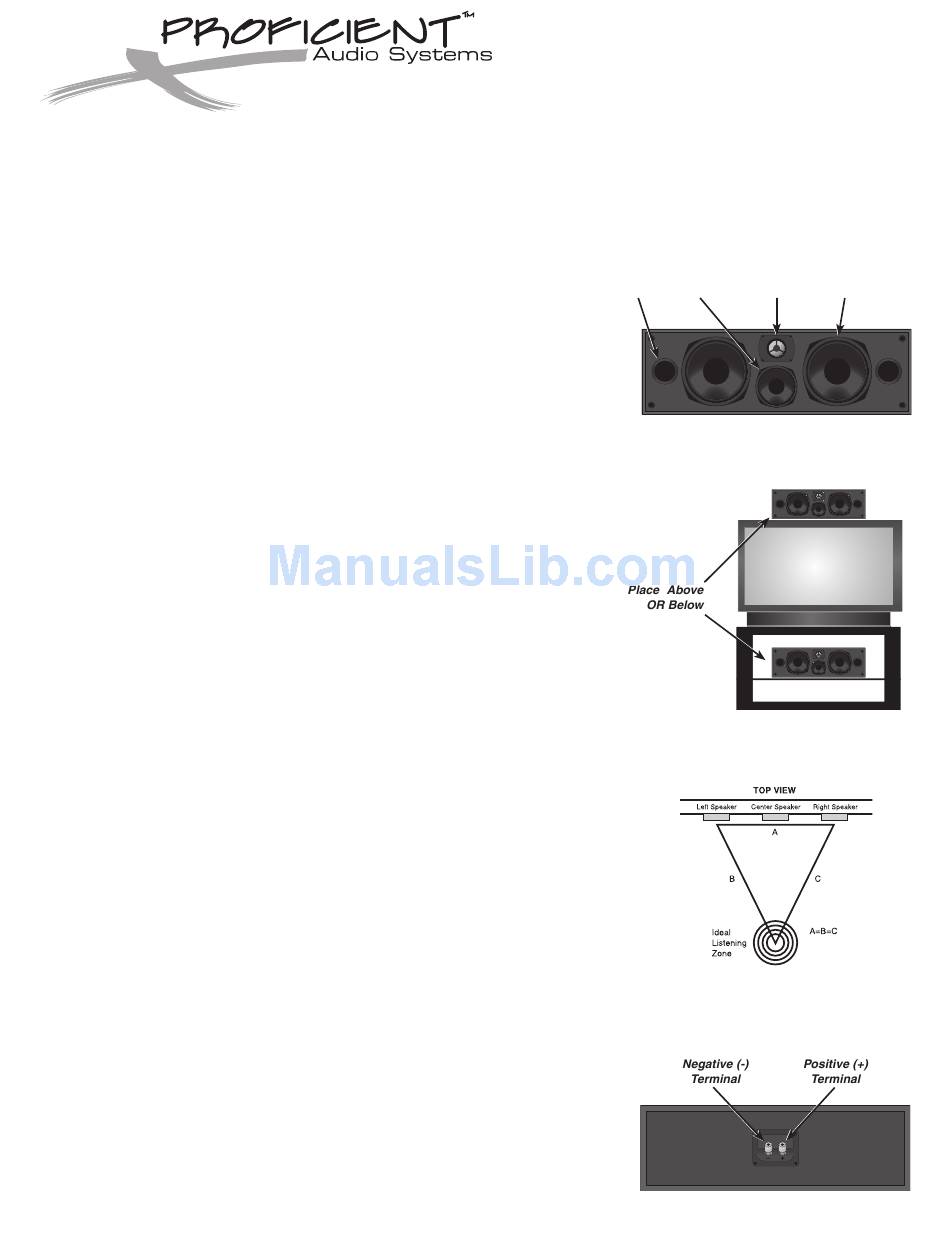

Please refer to Diagram 1 to familiarize yourself with the com-
ponents of the CC525.
PLACEMENT
With the cabinet positioned horizontally, place the CC525 as
close to the screen as possible. This most often means it will
need to be placed directly on top of or just below the television
with the front of the cabinet as far forward as possible, preferably
flush with the screen. It is perfectly safe to place the CC525 close
to the television, as it is magnetically shielded. (See Diagram 2)
Vertically lining up the cabinet with the left and right speakers,
while not necessary, will improve performance. Best results are
achieved when the left, right and center channel speakers are
all the same distance away from the listener. The front left and
right speakers should be placed so that they form an equilateral
triangle, with the listener at one point and each speaker at the
other two. (See Diagram 3)
Attaching Self-Adhesive Pads
Once placement of the CC525 is determined, attach the
enclosed pads to the underside corners of the unit.
WIRING
Attach the speaker cable to the speaker cable terminals on
the back of the CC525, observing the proper polarity with your
amplifier (+ to +, - to -). (See Diagram 4)
OWNER'S MANUAL
CC525
Midrange Tweeter
Port
Diagram 1:
CC525 Components
Diagram 2:
CC525 Placement
Diagram 3:
Ideal Listening Zone
Diagram 4:
Speaker Cable Terminals
Woofer
