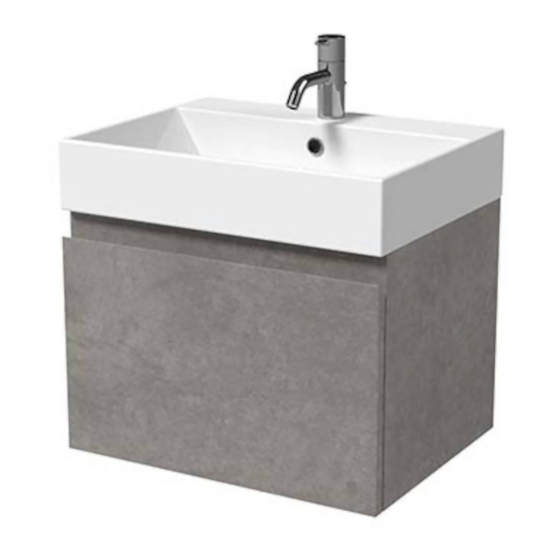

Mino 500 Basin Drawer Unit

Assembly Instructions

41405018300

380

496

350

Width 496mm

Depth 380mm

Height 350mm

Important: This wall-hung vanity unit must be securely ﬁxed to a suitably strong wall. It may

be necessary to reinforce the wall at the ﬁxing points. The ﬁxing method used to secure the

unit to the wall must be suitable for the wall construction.

Note: Height of the unit from the ﬂoor- we recommend that the unit be mounted so that the

top lip of the basin ﬁtted on top of the unit is 850mm above the ﬂoor.

Care and Maintenance: Please leave this leaﬂet with the householder. This furniture is

made of wood and has a water resistant ﬁnish. It should not be left wet and the quality of the

ﬁnish is best maintained if it is wiped with a dry cloth after use. It should only be cleaned

using a soft damp cloth followed by a dry cloth. Do not use bleach or any abrasive cleaner.

1-6

Table of Contents

Need help?

Do you have a question about the Mino 500 and is the answer not in the manual?

Page 1 Mino 500 Basin Drawer Unit Assembly Instructions 41405018300 Width 496mm Depth 380mm Height 350mm Important: This wall-hung vanity unit must be securely ﬁxed to a suitably strong wall. It may be necessary to reinforce the wall at the ﬁxing points. The ﬁxing method used to secure the unit to the wall must be suitable for the wall construction.
Page 2 Tools Required: Ø4mm Ø8mm CODE SIZE (mm) CODE DIAGRAM 350 x 360 x 18 (LH) 350 x 360 x 18 (RH) ST4 *14mm 460 x 60 x 18 460 x 360 x 18 25mm 383 x 326 x 16 129 x 84 x 16 Plastic ‘U’...
Page 4 Step 5: Step 6: s i n The wall ﬁxings supplied may not be suitable for your installation. You may need to source alternatives depending on the material and strength of the wall. Snap apart ST5 *50mm Note: Height of the unit from the ﬂoor- we recommend that the unit be mounted so that the top lip of the basin ﬁtted on top of the unit is 850mm above the ﬂoor.
