sinmag SM-500CSH Owner's Manual

Planetary mixer
Hide thumbs

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
SM-500CSH
(Planetary Mixer)

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM-500CSH and is the answer not in the manual?

Questions and answers

Roni Alvarez
February 21, 2025

I need the planetsry gear for a sm500c mixer

0
1 comments:
Mr. Anderson
February 21, 2025

The parts list in the manual does not specifically mention a planetary gear for the Sinmag SM-500CSH mixer. However, it does list several gear components such as the Internal Gear (SM500C028) and various Gear Wheels. You may check these parts for suitability or contact the manufacturer for further assistance.

This answer is automatically generated

0

Related Manuals for sinmag SM-500CSH

Summary of Contents for sinmag SM-500CSH

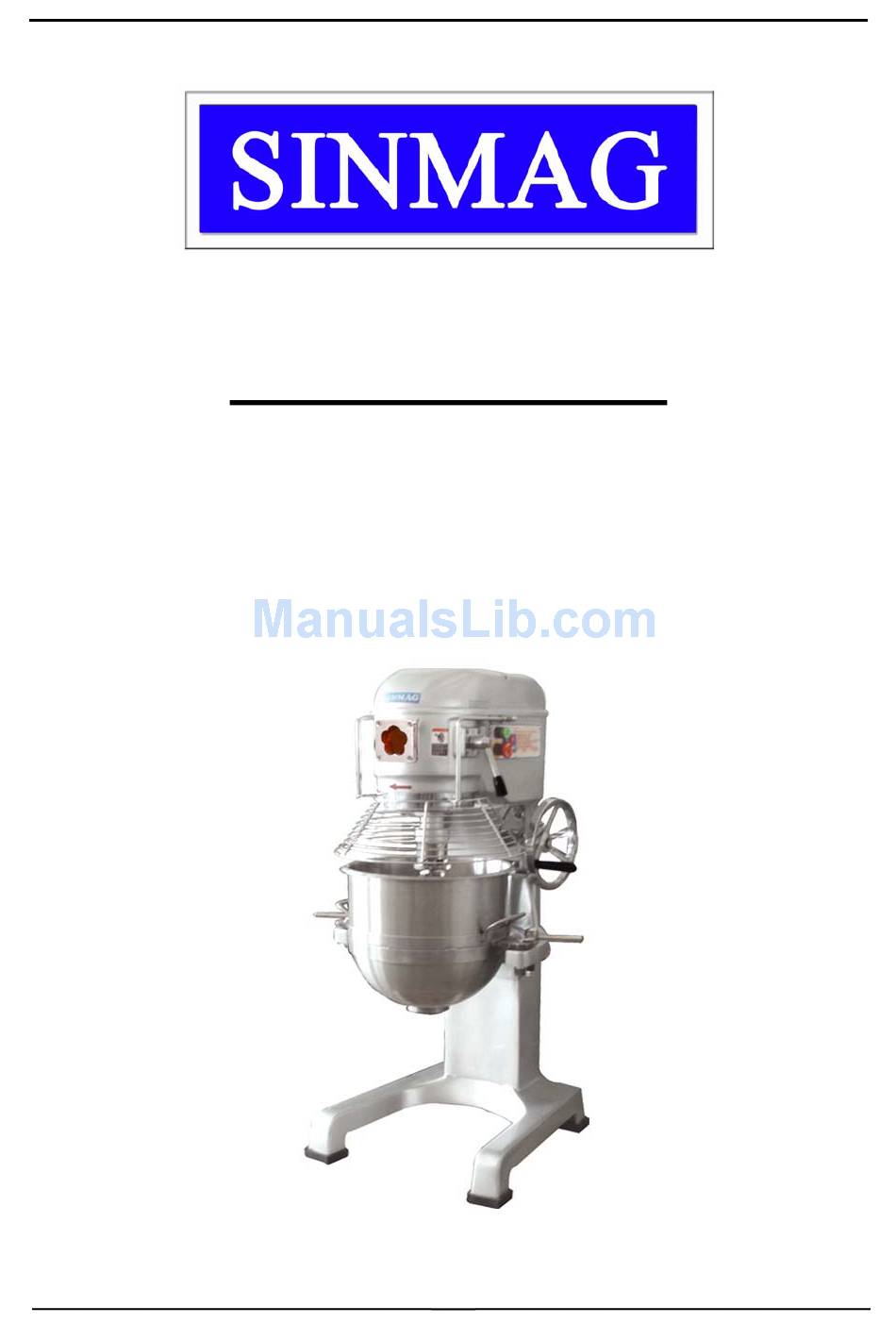

  • Page 1 OWNER’S MANUAL SM-500CSH (Planetary Mixer)
  • Page 2 CONTENTS Introduction••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••(2) Installation & Commissioning•••••••••••••••••••••••••••••••••••••••••••••••••••(3) Operation•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••(4) Attention••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••(6) Cleaning & Maintenance••••••••••••••••••••••••••••••••••••••••••••••••••••••••••(7) Parts List••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••(8) Electric Control Diagram••••••••••••••••••••••••••••••••••••••••••••••••••••••••(11)
  • Page 3 All of the information, illustrations and specifications contained in this manual are based on the latest product information available at the time of printing. SINMAG reserves the right to make changes at any time without notice. If questions arise during the operation or servicing, please contact us before proceeding.
  • Page 4 INSTALLATION AND COMMISSIONING Installation After uncrating your planetary mixer, inspect the machine for any damage that might have occurred during shipment. Report any damage to us before proceeding to operate this machine. Never attempt to operate this machine with damaged or inoperable parts. The following accessories are packed in the machine: One Dough Hook, One Beater, One Whipping Ball.

  • Page 5: Operating Instructions

    OPERATION Operating Instructions Tool Selection Whipping ball: Light mixes such as whipped cream, mayonnaise, egg white, pancakes and meringue. Beater: Firm mixed such as light pastry, cakes, biscuits, icing, fillings and mashed vegetables. Hook: Heavy mixes such as dough and pastry. Bowl Lift Crank the lift level counterclockwise to lower the bowl.
  • Page 6 OPERATION Operation Steps 1). Put the mixing materials into the bowl together with the agitator. Then fix the bowl into the bowl bracket. 2). Lift the bowl to the topnotch by lift handle. 3). Fix the agitator onto the maxing head. 4).
  • Page 7 ATTENTION Working Safety 1). Disconnect from the power source when cleaning or servicing this machine. 2). Never attempt to clean this machine while it is in motion, serious injury could result. 3). Never place your hand or any kitchen utensil in the bowl whilst the mixer is in operation.

  • Page 8: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Cleaning and Maintenance 1). Clean the surface of the machine with dishcloth after operation everyday. Use a damp cloth with a mild dish washing soap. 2). Wipe some lubricating oil on the bowl lifting gliding track. Lift the bowl up and down for several times to full lubricate the track.
  • Page 9 PARTS LIST...
  • Page 10 PARTS LIST Parts List Parts Code Parts Name Specification SM500C001 12402-320 Gear Shaft(13T) SM500C002 15ZC401-6204-2RS Bearing SM500C003 12402-340 Gear Wheel(20T) SM500C004 12402-660 Block Ring SM500C005 12402-330 Gear Wheel(30T) SM500C006 12402-350 Gear Shaft(52T) SM500C007 15ZC401-6204-2RS Bearing SM500C008 15ZC401-6207-2RS Bearing SM500C009 12420-190 Main Shaft SM500C010 15ZC401-6206-2RS Bearing...
  • Page 11 PARTS LIST SM500C037 12402-012 Motor Belt Wheel SM500C038 15PD402-800L Belt SM500C039 21402-011 Big Belt Wheel SM500C040 12402-031 Spring SM500C041 12402-101 Spring SM500C042 21402-037 Shifting Cover SM500C043 16HTLTAD-Y-636 Micro Switch SM500C044 12402-024 Plate SM500C045 12402-036 Handle SM500C046 12402-035 Shaft Of Handle SM500C047 12402-025 Cover SM500C048 16KGLK22-81R...
  • Page 12 ELECTRIC CONTROL DIAGRAM...
