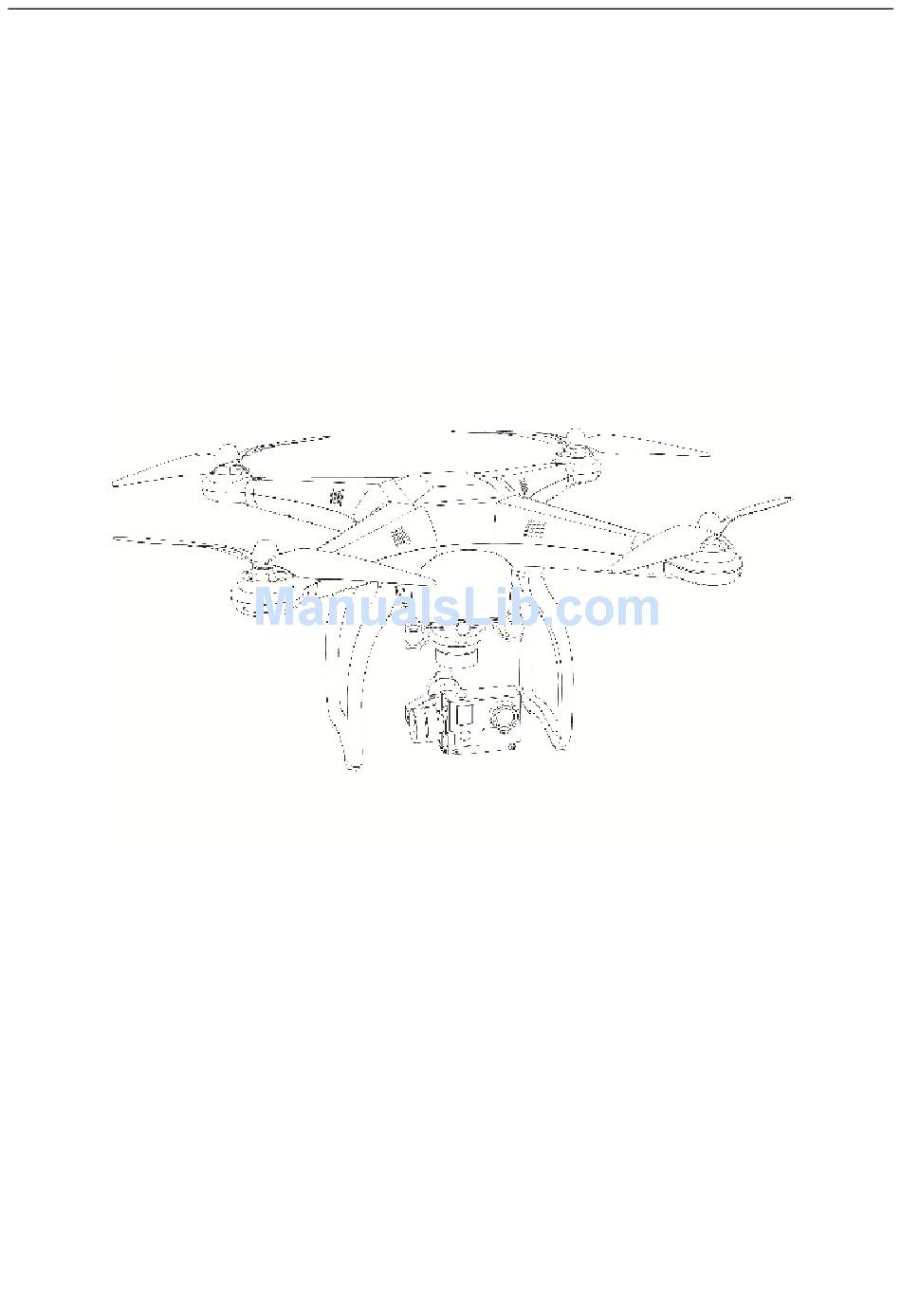

- Page 1 GLINT 2.0 Quick Start Guide...
- Page 2 GLINT 2.0 GLINT 2.0 has the function of one-key takeoff, landing, return to home, follow me, point of interest, point flying and waypoints. The GLINT 2.0’s camera records videos at up to 4K/1080P and captures 16-megapixel photos stably during flight.
-
Page 3: Remote Controller
Remote Controller This powerful Remote Controller allows you to pilot and maneuver your GLINT 2.0 at distances over 1km *away, while putting selected camera controls at your fingertips. Built-in your Remote Controller is a chargeable LiPo battery, which can work last for 8 hours*. -
Page 4: Specification
Specification Aircraft Weight 1.5~2.5kg Total Weight 1.9kg Power Battery 4S/6500 mAh/10C Max. Ascent Speed 5m/s Max. Descend Speed 2m/s Max. Level Speed 6m/s(GPS) Max. Flight Altitude 4000m Flight Time 25min Operating Temperature Range －10℃~40℃ 参考图片 GPS Module GPS+GLONASS Flight Mode Manual ATTI/GPS/customizing(headless mode/encircling mode/ manual mode) -
Page 5: Intelligent Flight Battery
Battery 2S 6000 mAh Operating Current/Voltage 500mA/7.4V Aircraft Charger Voltage/Current 17.4V /3A Power Rating Remote Controller Charger Voltage/Current 8V/ 1A Power Rating Intelligent flight battery Type Li-Po 4S Capacity 6500 mAh Voltage 15.2V Energy 98.8Wh Charging Temperature C~45 Dis-charging Temperature C~60 Charging/dis-charging Relative Humidity <80%... -
Page 6: Charge The Batteries
Use your GLINT 2.0 Before using GLINT 2.0, please visit the product page on Keyshare official website to view the whole tutorial videos and download GLINT2 User Manuals，and read the following files carefully: GLINT 2.0 Quick Start Guide, GLINT 2.0 Disclaimer Operation and Safety Manual, GLINT 2.0 Smart Battery Safety Instructions and List of Articles. -
Page 7: Prepare The Remote Controller
Remove the Intelligent Flight Battery Please use the official charger that provided by Keyshare. Remove the intelligent flight battery from aircraft before charging. Connect the intelligent flight battery charger to the AC power supply (100-240V, 50-60Hz; if required, please use the power adapter). - Page 8 GLINT2_×××××× from your Wi-Fi list. Input the default connection password: 12345678. 3. Start GLINT 2.0 APP, tap “connect” button to enter into the home page. If you can enter into the home page after connection, it means that the remote control and mobile device connect successfully. Otherwise it means the failure connection.
- Page 9 × from Wi-Fi list. Input the default connection password: 12345678 6. Turn on GLINT 2.0 APP, tap” connect” to enter into the operation page, if it display “ connect successfully” on your screen, it means that the remote controller and mobile device connect successfully.
- Page 10 One Key to Return Press and hold the Return to Home Button on remote controller or the key in GLINT 2.0 APP interface, the aircraft will automatically return. If you use the key on remote controller, you can long press the key again to stop the return action. While using APP to return, you should use S1 function mode switch to change the mode for terminating the return action.
- Page 11 FCC Caution This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
