Instruction Manual For model: JGTRV speedfitUFH.co.uk...
Page 2
Contents Box contents: Instruction manual: • Box contents • Introduction • Product compliance and Safety information • Installation JGTRV • User interface • Status/LED indication • Installer notes 2x AA Batteries Icons used in this manual: Safety Adapter Important info...
Page 3

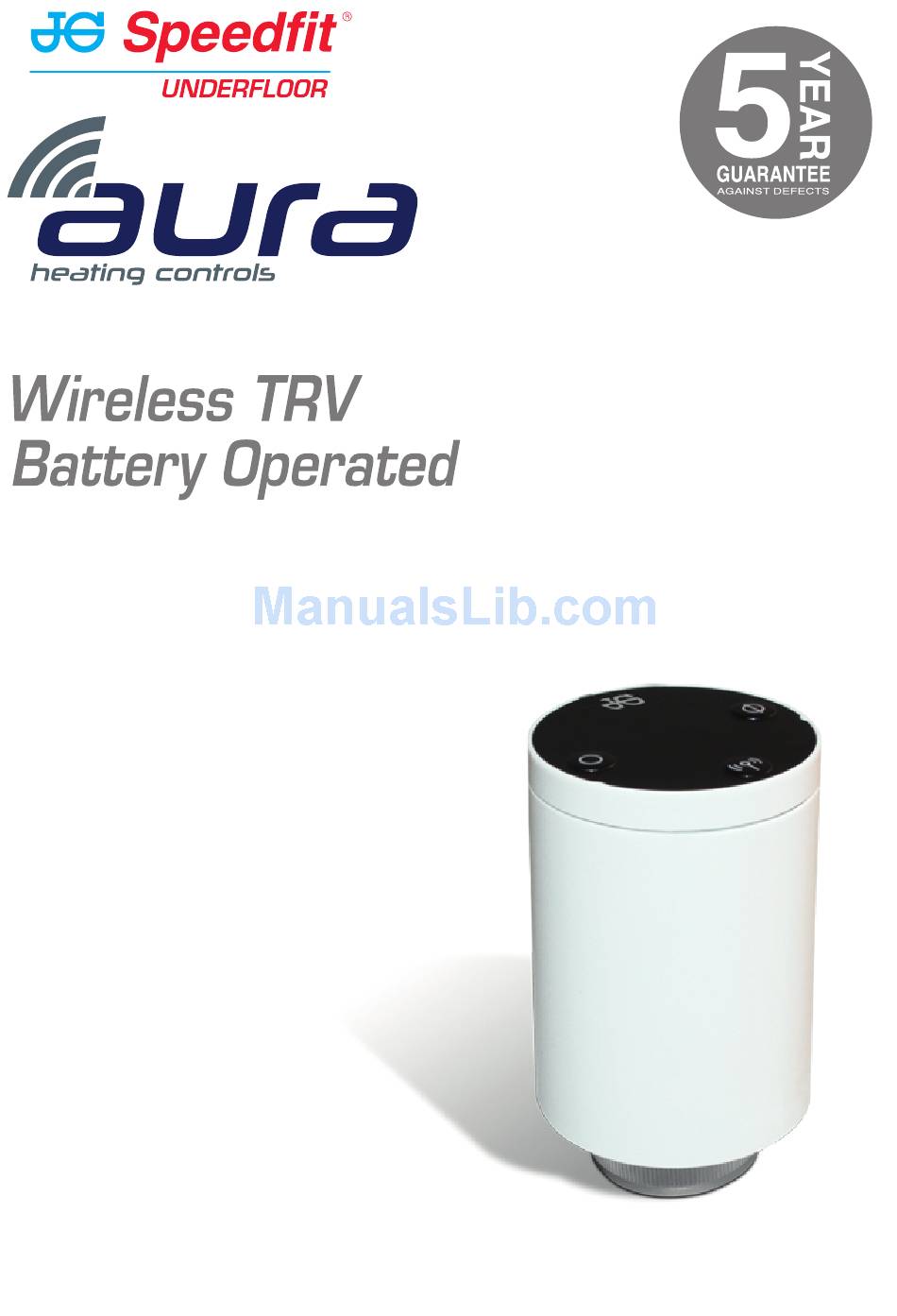

Thank you for purchasing the Speedfit Aura Wireless TRV (JGTRV). The JGTRV simply replaces the passive head supplied with a standard Thermostatic Radiator Valve (TRV). The JGTRV must be used with a JGSTATW1 or JGSTATW2 Wireless Thermostat and a JGCO Wireless coordinator (all sold separately).
System Overview To provide the best level of system control, we recommend that the JGTRV is installed with a JGBR Boiler Receiver (configured to RX1). This enables the Wireless Thermostats in the system to switch the boiler on/off whilst also opening/closing the radiator valves.
Page 5
Installation - General Detach top housing Remove the battery Insert the batteries by pressing a flat cap. and replace the screwdriver into the battery cap. slot as shown above. Please note correct battery orientation. Gently place the Ready to be fitted Optional adapter.
Page 6
Installation - General Place the TRV over Tighten the TRV Check that LED is the radiator valve. (finger tight) to the solid red. radiator valve. Press any button to Adaptation to the The unit is now ready commence adaptive valve is complete for pairing to the mode.
Page 7
Installation - Pairing System setup checklist The Wireless Coordinator must be in Pairing Mode. Before starting the pairing, make sure the light is flashing on the Coordinator by holding the button for 5 seconds. Please refer to the JGCO Wireless Coordinator Instruction Manual.
Page 8
Installation - Pairing Press and hold the pairing button for 5 seconds. Once the red LED starts flashing go to page 37 in JGSTATW1/JGSTATW2 Instruction Manual. When pairing is successful with the JGSTATW1/JGSTATW2 thermostat the LED will go out. Wireless TRV Instruction Manual...
User Interface LED Indication Manual Manual open/status close/status indication indication Pairing Button speedfitUFH.co.uk...
Page 10
Status Indication Manual Mode (See page 12) Short press on either button will show status. LED flashes red twice. The valve is manually closed. LED flashes green twice. The valve is manually open. If wireless link is lost error code **-07 will show on the connected thermostat.
LED Indication Installation Error If there is an error in the installation the TRV LED will flash Red / Green alternately. Please remove the TRV from the radiator valve and repeat the installation steps on page 6. Low Battery If the battery low, the red light will flash three times every ten seconds.
Manual Override To remove the JGTRV from auto mode, follow steps below. Long press to LED flashes green once and then goes out. manually open TRV. To check status refer to page 10. Long press to LED flashes red once and then goes out.
Page 13
Technical Detail Model JGTRV Type Hydraulic Radiator Valve DC Motor M30 x 1.5 3 push buttons. Input Auto/Open/Close/Pair LED Indicator Bi-Colour, Red/Green Valve Adaptation Automatic 2 x AA Batteries Power Source 12 Months Battery Life Control Method Modulating Communication Zigbee - 2.4GHz 0ºC to 50ºC...
Page 15
Installer Notes Disclaimer Customers that choose to operate their heating remotely using JG Aura Range technology via their personal computer, tablet or smart phone device(s) will be entering into a contract with Salus Controls plc (“Salus”), which is a third party supplier of the software.
