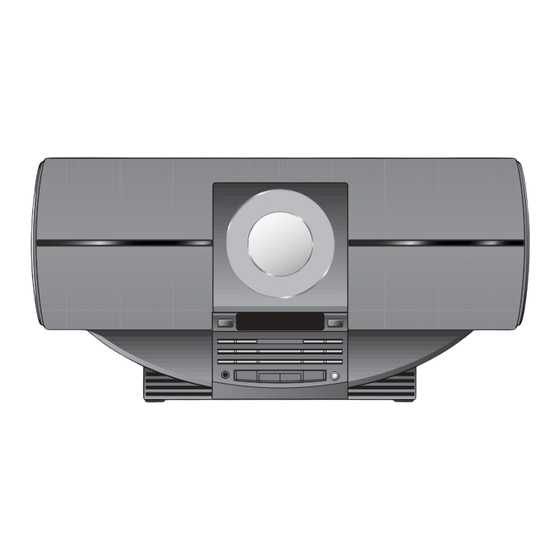

INTERIOR COMPONENT SYSTEM S2000 SERVICE Manual INTERIOR COMPONENT SYSTME CONTENTS 1. Alignment and Adjustments 2. Disassembly and Reassembly 3. Exploded Views and Parts List 4. Electrical Parts List 5. Block Diagrams 6. PCB Diagrams 7. Wiring Diagram 8. Schematic Diagrams...
Page 3
1. Remove 6 screws of B its rear part 2. Remove the connect wire of C,and remove Main-PCB ASS’Y to backward. 3. Remove 3 screws of A its rear part ,and remove CD-Mecha ASS’Y to backward. Fig 2-2 Samsung Electronics...
Page 4
2. Pull up Cabinet-Top Ass’y to frontward, and remove it. Fig 2-3 2-4 CAP Front ASS’Y 1. Remove Tersey-Frame of C 2. Remove 2 screws of A (Deco-Front). 3. Remove 6 screws of B (Cap-Front). 4. Remove Cap-Front Ass’y to frontward. Fig 2-4 Samsung Electronics...
450MHz Frequency 522MHz Adjustment AM I.F COIL point (TL2) Maximum Output(Figure 1-5) VTVM Oscilloscope AM Signal Loop Speaker Generator Test Loop Antenna Jack Terminal Antenna Fig1-2 Adjustment location of Tuner part(SW1/SW2 Band) 60 cm Figure1-5 AM I.F Adjustment Samsung Electronics...
Page 6
Adj.) ~ 6.5V( 3.5MHz 3.5MHz SW1 ANT Maximum output SW1-RF 1.0( ±0.1V : ±0.5V : Check) 9.5~26.1 MHz SW2-OSC SW2 OSC Adj.) ~ 6.5V( 10MHz SW2 ANT Maximum output 10MHz SW2-RF TUNER Input DC Voltmeter Figure 1-6 MW(AM)/LW/SW Adjustment Samsung Electronics...
