Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision PLANET 8-Port 10/100TX 802.3at PoE + 1-Port 10/100/1000T + 1-Port 100/1000X SFP Desktop Switch User's Manual For Model: FGSD-1011HP Revision: 1.0 (October 2017)

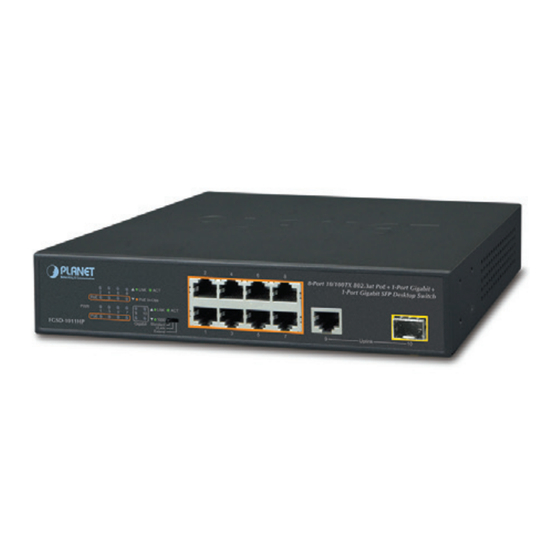

1.2 Product Description The FGSD-1011HP, a new member in the PLANET 802.3at PoE Fast Ethernet Switch family, provides 8-port 10/100Mbps 802.3af/at Power over Ethernet, 1 Gigabit port and 1 Gigabit SFP port with a total of 120 watts of PoE budget. Its PoE power...
It comes with a 9-inch metal compact housing, suitable for desktop deployment in SOHO office or department network application. The mini-GBIC slot built in the FGSD-1011HP supports SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-...
LED indicators for PoE ready/activity and LINK/ACT z Fanless design z Internal AC power supply z Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az) 1.4 Specifications Model FGSD-1011HP Hardware Specifications 10/100Mbps Ports 8 10/100BASE-TX MDI/MDI-X RJ45 ports Gigabit Ports 1 10/100/1000BASE-T MDI/MDI-X RJ45 port...
Page 8
Power Consumption 135 watts, 463.2 BTU Dimensions (W x D x H) 220 x 150 x 44 mm Weight 1220 g Contact discharge of ±6KV DC ESD Protection Air discharge of ±8KV DC Surge Immunity ±4KV Power over Ethernet IEEE 802.3af Power over Ethernet/PSE PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE PoE Power Supply Type...
Before connecting any network device to the FGSD-1011HP, please read this chapter carefully. 2.1 Front Panel The front panel of the FGSD-1011HP PoE+ Ethernet Switch consists of 8 auto- sensing 10/100Mbps Ethernet RJ45 ports, 1 auto-sensing 10/100/1000Mbps Ethernet RJ45 port and 1 auto-sensing 10/100/1000 Mbps SFP port. The LED indicators are also located on the front panel of the FGSD-1011HP.
Page 10
2. Port 1 to port 8 can only communicate with port 9 and port Extend 10 (uplink port). 3. 30-watt PoE transmit distance of 250m at speed of 10Mbps. Please reboot the FGSD-1011HP after adjusting the DIP switch to take effect. Note Standard Mode (default)
Gigabit Green successfully established at 1000Mbps 2.2 Rear Panel The rear panel of the FGSD-1011HP has an AC inlet power socket, which accepts input power of 100 to 240V AC, 50-60Hz. 100-240V AC 50/60Hz Figure 2-2: FSD-1011HP Switch Rear Panel 1.
Cat.5, 5e UTP, 4-pair RJ45 1000BASE-T Cat.5/5e/6 UTP, 4-pair RJ45 Any Ethernet devices like hubs/PCs can be connected to the FGSD-1011HP by using straight-through wires. The whole 10/100/1000 Mbps ports are auto-MDI/ MDI-X that can be used on straight-through or crossover cable.
Ex ten d Up lin k Figure 3-1: Attaching the Rubber Feet to the FGSD-1011HP Step 2: Place the FGSD-1011HP on desktop near an AC power source. Step 3: Keep enough ventilation space between the FGSD-1011HP and the surrounding objects.
To install the FGSD-1011HP in a 19-inch standard rack, follow the instructions described below. Step 1: Place your FGSD-1011HP on a hard flat surface, with the front panel positioned towards your front side. Step 2: Attach a rack-mount bracket to each side of the FGSD-1011HP with supplied screws attached to the package.
Step 5: After the brackets are attached to the FGSD-1011HP, use suitable screws to securely attach the brackets to the rack, as shown in Figure 3-3. PoE In-Us 8-P ort 10/ 100 TX FG SD -10 11H P 802 .3a t...
Page 16
150mm FGSD-1011HP Switch Bottom Side RJ45 UTP Cable...
Solution: Please check the cable type of the connection from the FGSD-1011HP to the other end. The cable should be an 8-wire UTP, Category 5 or above and EIA568 cable within 100 meters. A cable with only 4-wire, short loop or over 100 meters will affect the power supply.
Appendix A - 10/100Mbps, 10/100BASE-TX When connecting the Switch to another Fast Ethernet switch, a straight-through or crossover cable might be necessary. Each port of the Switch supports auto-MDI/ MDI-X detection, meaning you can directly connect the Switch to any Ethernet devices without making a crossover cable.
There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight-through cable and crossover cable connection: Straight Cable SIDE 1 SIDE 2 SIDE 1 1 2 3 4 5 6 7 8 1 = White/Orange 1 = White/Orange 2 = Orange...
