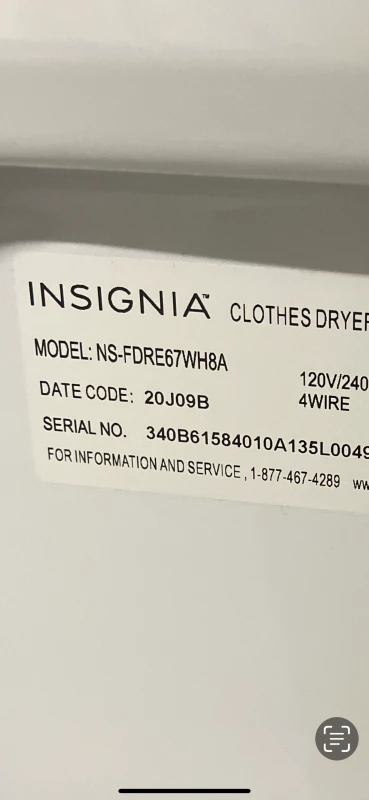

- Page 1 USER GUIDE 6.7 Cu. Ft. Front-Load Electric and Gas Dryers NS-FDRE67WH8A-C/NS-FDRE67WH8A/NS-FDRG67WH8A Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
ONE-YEAR LIMITED WARRANTY ................29 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-FDRE67WH8A-C (electric dryer), NS-FDRE67WH8A (electric dryer), or NS-FDRG67WH8A (gas dryer) represents the state of the art in gas or electric dryer design and is designed for reliable and trouble-free performance. -
Page 3: Important Safety Instructions
SAFETY and PRECAUTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers IMPORTANT SAFETY State of California Proposition 65 Warnings INSTRUCTIONS The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of SAVE THESE California to publish a list of substances known to the State of California to cause cancer, birth INSTRUCTIONS... - Page 4 SAFETY and PRECAUTIONS • There are many highly flammable items used in 16 Always check the inside of the dryer for foreign homes, such as acetone, denatured alcohol, objects before loading laundry. Keep the door gasoline, kerosene, some liquid household closed when not in use.
-
Page 5: Features
SAFETY and PRECAUTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers Risk of Fire 3 Do not install a clothes dryer with flexible plastic venting materials. 4 If flexible metal (foil type) duct is installed, it WARNING must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryer. -
Page 6: Back Components
INSTALLATION INSTRUCTIONS Back components Power cord (gas Electric Dryer Gas Dryer dryer only) Wiring box Back venting hole Gas inlet www.insigniaproducts.com... -
Page 7: Control Panel
INSTALLATION INSTRUCTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers Control panel ITEM DESCRIPTION Press to turn your dryer on or off. If your dryer is on for more than 10 minutes without any /POWER button buttons being pressed, it automatically turns off. Turn to select the cycle for the type of load. -
Page 8: Unpacking Your Dryer
INSTALLATION INSTRUCTIONS Unpacking your dryer Warning • Packing materials can be dangerous to children. Keep all packing materials (such as plastic bags and polystyrene) well out of the reach of children. • Do not operate your dryer on the foam base cushion. Doing so will result in serious vibration, which could cause equipment damage or result in physical injury. - Page 9 INSTALLATION INSTRUCTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers Do not install or store your dryer in an area where it will be exposed to water or weather. Keep the dryer area clear of combustible materials, gasoline, and other flammable vapors and liquids. Your dryer produces combustible lint. Keep the area around the dryer lint-free.
- Page 10 INSTALLATION INSTRUCTIONS Installing your dryer and washer side-by-side Leave at least one inch between your appliances and from any surrounding walls. If your washer is a top-loading washer, make sure that you have enough room to open the washer lid. 24 in.
- Page 11 INSTALLATION INSTRUCTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers Installing in an alcove, closet, or wall insert/recessed Warning • You must exhaust your dryer to the outside to reduce the risk of fire when installed any place inside the house. •...
-
Page 12: Exhausting Requirements
INSTALLATION INSTRUCTIONS Exhausting requirements Warning Do not exhaust your dryer into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed space in a building. Your dryer must be exhausted to the outside to reduce the risk of fire when installed in an alcove or closet. - Page 13 INSTALLATION INSTRUCTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers Measuring and verifying system back pressure A Dryer B 10 in. (25.4 cm) minimum of straight pipe-measure back pressure from the center C To vent system D Location on back pressure measurement E Inclined manometer To measure the system back pressure:...
-
Page 14: Electric Requirements-Canada Only
INSTALLATION INSTRUCTIONS Exhaust hood types If you install your dryer into an existing exhaust system you must make sure that: • The exhaust system meets all local, state, and national codes. • You do not use a flexible plastic duct. •... -
Page 15: Electric Requirements-U.s. Only
INSTALLATION INSTRUCTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers Electric requirements—U.S. only Note For products sold in the U.S., your dryer has an optional cord with an equipment grounding conductor and a grounding plug, which is sold separately. Warning •... -
Page 16: Grounding Requirements
INSTALLATION INSTRUCTIONS Grounding requirements Your dryer must be grounded. If a malfunction or breakdown occurs, the grounding reduces the risk of electrical shock by providing a path of least resistance for the electrical current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. -
Page 17: Installing Your Dryer
INSTALLATION INSTRUCTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers Installing your dryer Important We recommend that you use a qualified installer to install your dryer. Tools you will need Phillips Flat-head Cutting knife Adjustable Level screwdriver Pliers screwdriver Duct tape wrench that opens to 1"... - Page 18 INSTALLATION INSTRUCTIONS Step 3: Connect the exhaust ducting Important Before you connect the exhaust ducting, review ducting requirements in Ducting requirements on page 12. Warning • Make sure that your dryer is installed properly so it exhausts air easily. Dryer Wall Duct exhaust •...
- Page 19 INSTALLATION INSTRUCTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers 2 Connect one end of the exhaust ducting to your dryer, then use duct tape to secure the ducting to your dryer. The crimped ends of the duct sections must point away from your dryer. Use a 4 in. (10.2 cm) diameter rigid metal duct.
- Page 20 INSTALLATION INSTRUCTIONS 3 Connect the neutral wire (white or center wire) of the power cord and the appliance ground wire (white) under the center screw of the terminal block. 4 Connect the other wires to the outer terminal block screws. Be sure to cross the screw through the terminal ring and tighten the screw.
-
Page 21: Reversing The Dryer Door
INSTALLATION INSTRUCTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers Reversing the dryer door 1 Make sure that the power cord is unplugged. 2 While supporting the door, remove the four hinge screws from the door, then lift the door to remove it and set the door aside. - Page 22 INSTALLATION INSTRUCTIONS 6 Pull the inside door board from the outside door board. Screws Outside door board Inside door board 7 Rotate the inside door board 180°, then reassemble it with the outside door board with the screws you removed previously.
-
Page 23: Using Your Dryer
OPERATING INSTRUCTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers Using your dryer Drying a load of clothes Step 1: Turn on your dryer • Press the /POWER button to turn on your dryer. Step 2: Load your dryer • Place only one wash load in your dryer at a time. •... -
Page 24: Setting The Child Lock
OPERATING INSTRUCTIONS 2 Open the door and remove the items. Note You should clean the lint filter after every load to avoid lint buildup and to make sure that your dryer is running efficiently. See Cleaning the lint filter on page 24. -
Page 25: Dryer Options And Settings
OPERATING INSTRUCTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers Dryer options and settings • • Settings in bold are initial settings. The (dot) indicates optional functions you can select. • For best results, follow the wet load size recommendations noted for each cycle. •... -
Page 26: Special Laundry Tips
USER MAINTENANCE INSTRUCTIONS Special laundry tips ITEMS DRYING GUIDE •Follow the care label instructions or dry using the Bulky cycle. Bedspreads and •Make sure that the item is thoroughly dry before using or storing. comforters •During the drying cycle, you may need to reposition the item to make sure that it is completely dried. -
Page 27: Cleaning And Inspecting The Exhaust System
USER MAINTENANCE INSTRUCTIONS 6.7 Cu. Ft. Front-Load Electric and Gas Dryers Cleaning and inspecting the exhaust system Inspect and clean the exhaust yearly to maintain optimum performance. 1 Disconnect the exhaust duct from the dryer and from the exhaust hood (at the exhaust outlet) outside of the building. -
Page 28: Understanding The Error Codes
The temperature sensor failed. Contact authorized service personnel for help. DO NOT use your dryer. Specifications NS-FDRE67WH8A-C/NS-FDRE67WH8A Dimensions 42.9 x 27 x 30.1 in. (109 x 68.6 x 76.5 cm) (H × W × D) Weight Gross: 143.3 Ibs (65 kg) Net:127.8 lbs (57.9 kg) -
Page 29: One-Year Limited Warranty
Products and parts replaced under this warranty become the property of 1-877-467-4289 Insignia and are not returned to you. If service of Products or www.insigniaproducts.com parts are required after the Warranty Period expires, you must INSIGNIA is a trademark of Best Buy and its affiliated companies. - Page 30 1-877-467-4289 (U.S. and Canada) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2017 Best Buy. All rights reserved. V5 ENGLISH Made in China...
