Summary of Contents for Tibo Vogue 3

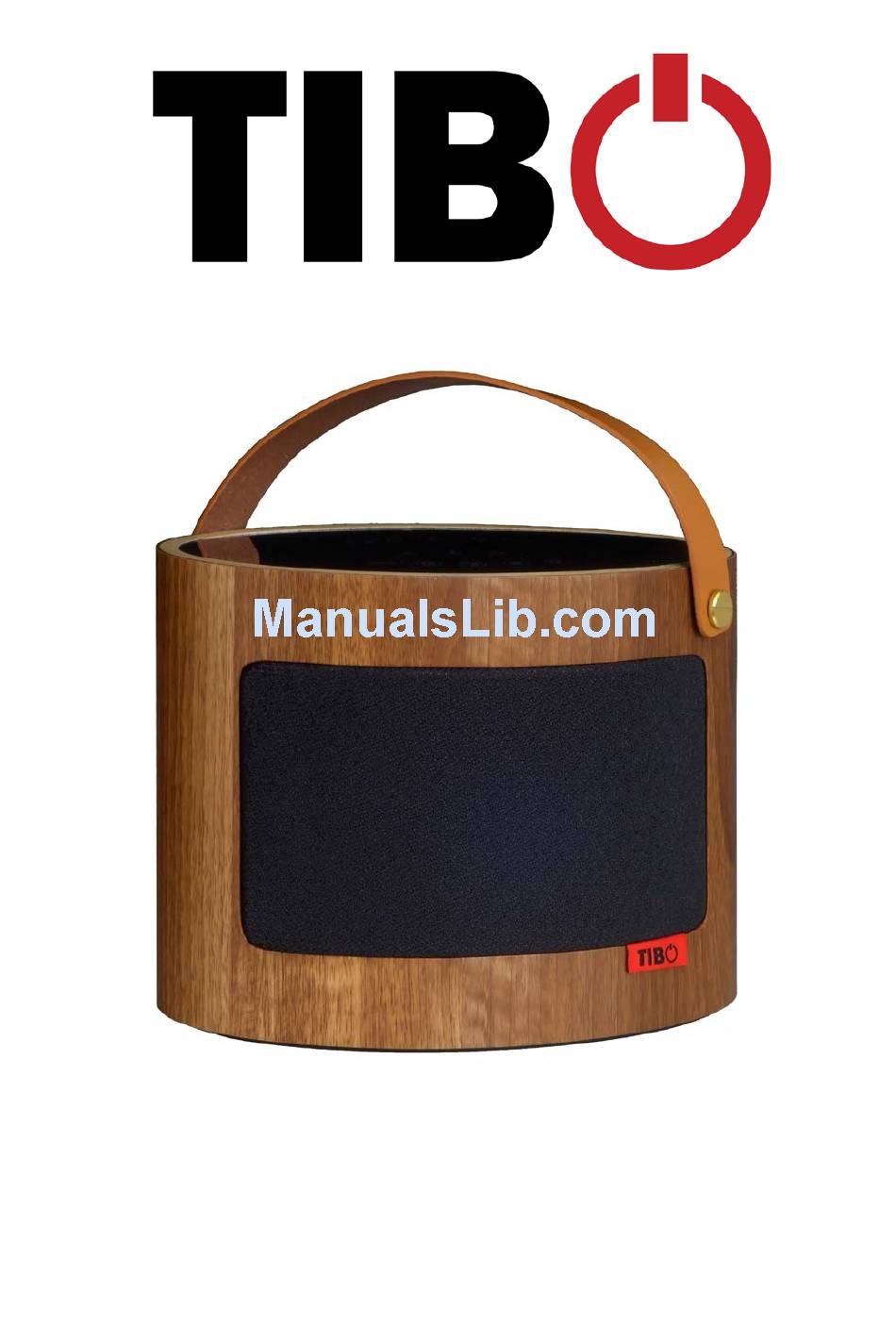

- Page 1 Vogue 3 – User Manual...
-
Page 2: Table Of Contents
Contents • Safety Information • Introduction • First time speaker setup • Wi-Fi mode • Solo mode and group mode • Using the pre-set functions • Bluetooth mode • Line In mode • Additional Information • Troubleshooting • Specifications... -
Page 3: Safety Information
• Safety Information Do not share the power socket with another appliance. Do not disassemble or attempt to repair the appliance on your own. lf you are not using the appliance, pull the power cord out of the mains socket. Be careful of the power cord and maintain it as appropriate. - Page 4 Do not wash the appliance or use it in the bathroom, or it may cause potential injuries and other problems. Installation location Leave sufficient space around the appliance of at least 5 cm from any wall/obstacle to ensure proper ventilation and prevent the appliance from overheating.
- Page 5 Before moving the appliance Before moving the appliance to a different location, please take the disc out of the appliance so that the disc and appliance will not be damaged. Storm lf the appliance is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute.
-
Page 6: Introduction
Thank you for purchasing the TIBO Vogue 3 speaker. We hope that your experience with the Vogue 3 will be enjoyable for many years to come. The Vogue range is a family of wireless smart speaker systems. They are able to connect to one another utilising the latest in exclusive Smart Audio software to deliver a high quality, crisp sound. -
Page 7: First Time Speaker Setup
• First time speaker setup In the box - Vogue 3 speaker - USB charge cable (Note – Charge port is compatible with Android devices.) - Grey drawstring bag to contain portable speaker - Quick start guide - Setup warning... - Page 8 Top panel layout Group indicator Play/Pause/Pair Power/Mode indicator Volume down/Skip track backwards Volume up/Skip track forwards Group light: (White light in multi speaker group mode) Battery light: (Red light when charging) Mode light: (Red light in Wi-Fi mode) (Blue light in Bluetooth mode) (Green light in Line In mode) Pre-sets 1-5...
- Page 9 3) The Vogue 3 will respond by saying “Power on, powering up for the first time, please wait.” 4) Do not do anything until the Vogue 3 has finished booting up. The Vogue 3 will say “Ready for app setup” when boot up is complete.
- Page 10 App download The TIBO app helps you get setup for the first time, and helps get the most out of your speaker’s functions. The app is compatible with iOS and Android smartphones, and can be downloaded for free on Google Play or in the App Store.
-
Page 11: Wi-Fi Mode
Wi-Fi mode • Wi-Fi mode setup 1) Turn on the Vogue 3 by pressing and holding the power button until the mode light turns on. Then short press the mode button until the speaker replies with “Wi-Fi mode.” (The mode... - Page 12 5) Find your Wi-Fi network, type in your password and then press ‘Next’. 6) Press the WPS button on the rear of the Vogue 3. The speaker will respond by saying “Searching for Wi-Fi connection.” Then press ‘Next’...
- Page 13 7) Then wait for the Vogue 3 to connect to your Wi-Fi. When connected, the Vogue 3 will respond by saying “Wi-Fi connected. Then press ‘Next.’ 8) You can now name your Vogue 3 speaker within the app. Either select from the list of pre- set options or click on custom to set your own name.
- Page 14 9) Your Vogue 3 will now appear on your ‘Device List’ within the app. To add more devices, press the ‘cross’ icon in the top right of the screen. Playing music via Spotify 1) Play some music in Spotify. 2) Click on ‘Devices Available’ at the bottom of the screen on Spotify.
- Page 15 1) In order to use this setting, you will need a minimum of 2 TIBO Smart Audio products. These can be any TIBO Smart Audio products. Press the cross icon in the top right corner to add more devices to your Wi-Fi.
- Page 16 ‘Device List’ and drag it on top of another speaker. 3) When grouped together, the Vogue 3 will respond by saying “group mode.” There will also be a white line on the app to show the connection of grouped speakers.
-
Page 17: Using The Pre-Set Functions
• Using the pre-set functions 1) On the main menu of the TIBO app, click on TuneIn and search for the radio station that you’d like to save as a pre-set. 2) Next to all the radio stations you will see a... -
Page 18: Bluetooth Mode
The Vogue 3 will respond by saying “pre-set saved.” 4) Press the corresponding number button on the Vogue 3 to recall the pre-set. Bluetooth mode • 1) Hold the power/mode button to turn on. If performed correctly, speaker will respond by saying “Power on.”... -
Page 19: Line In Mode
Vogue 3. When connected, the speaker will respond saying “Bluetooth connected.” 5) You can now play music to the Vogue 3 via your source, Spotify etc. • Line In mode 1) Whilst the Vogue 3 is turned off, connect a 3.5mm jack cable to the ‘Line in’... -
Page 20: Additional Information
However if you HOLD the WPS for 5 seconds, the Vogue 3 will restore itself to factory settings. 3) Battery life: The Vogue 3 will last up to 8 hours when fully charged. When the battery percentage is 10% or lower, the Vogue 3 will... -
Page 21: Troubleshooting
Wi-Fi - Product too far away from router Cannot connect to router - Ensure router is dual band, as TIBO products only connect with 2.4GHz and NOT 5GHz Product dropping in and out - Source is too far away... -
Page 22: Specifications
• Specifications Product name Vogue 3 Power supply Battery – 2000mAh x 3pcs Max output power Frequency response 120Hz – 20kHz Impedance 4ohms Bluetooth range 10 meters Dimensions 240 x 183 x 130mm Weight 2.26kg Sound resolution 24 bit/192kHz The Bluetooth® word mark and logos are registered trademarks owed by Bluetooth SIG Inc.
