Summary of Contents for Brav Electronic Technologies Co. IT-121

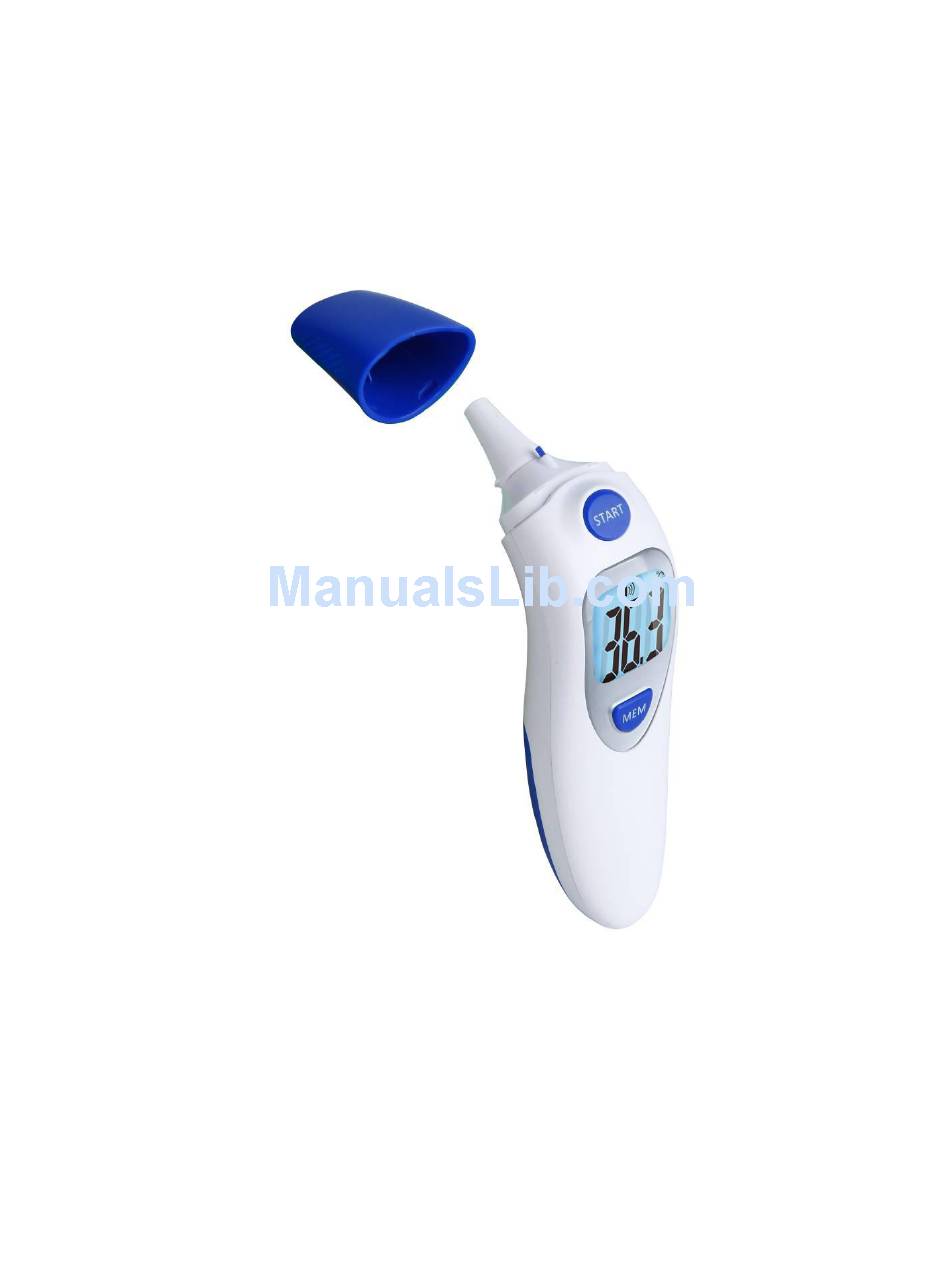

- Page 1 Operating Manual Infrared thermometer Model:IT-121 Professional Fast Accurate...
-
Page 2: Table Of Contents
CONTENTS 1 I n t r o d u c t i o n ....… … … … … … … … … … … … … … … … 3 1.1Product intended use……………………………………………………………3 2 Ba s i c pr i nc i pl e …………... -
Page 3: N T R O D U C T I O N
1. Introduction IT-121 measures the body temperature through receiving the infrared energy radiation from the surface of objects. It is with forehead temperature mode,and ear temperature mode. The measurement result directly shows on the LCD screen It is easy, hygiene and accurate. -
Page 4: E C H N I C A L P A R A M E T E R S
4. Technical parameters Measurement method Contact-Type Body Mode 32.0°C～42.9°C（89.6°F~109.2°F) Measurement Mode Surface Mode 0°C～100°C(32°F~212°F) ±0.3°C(0.54°F) Body Mode Measurement accuracy Surface Mode ±1.0°C(1.8°F) Display resolution 0.1°C/°F Operating environment 16° C ~ 35 ° C (60.8° F to 95 ° F) ≦ 85% moisture condensation Storage condition - 25 °... -
Page 5: Display Icon Definition
6. Display icon definition Table 2 Icon definition icon Definition Measuring Forehead and Object temperature mode1 Measuring Ear temperature measurement mode2 Temperature unit °F or °C Celsius degree; Fahrenheit degree The icon means can convert between °F and °C Ambient temperature measurement Ambient Mode. -
Page 6: U N C T I O N K E Y S
Fragile, handle with care IS LOVE 7. Function keys Table 3 Function key functional description Press to measure Measuring key Memories key Press to get the latest 20 sets memories temp. Conversion key Keeping press in 5s to adjust ° C / ° F, when setup 8. -
Page 7: Measuring Method
Open the battery cover and install the batteries, then the screen display all symbols. press the Memory key to check the lastest 20 sets measurement value. Note: a. The record order is 20,19,18...1 and so on. b. The record will be deleted when uninstall the batteries. B: Temperature unit setting：... -
Page 8: Object Temperature Measurement
Prompt Don’t push hard into the ear to avoid hurting the eardrum 9.3 The object temperature measurement. ● Take off the Cover of mode conversion, point the thermometer to the object, keep the probe 3~5mm to the object. Press the measuring key to measure directly,when the buzzer beeps, the temperature will display on the screen. -
Page 9: Ambient Temperature Measurement
2.point the prove to the air and press the start key. 10. Replacement of batteries ●The battery life is approx. 3000 readings one year and 90 minutes when in constant use. ●Open the battery cover, and remove the old battery. ●... -
Page 10: Troubleshooting
● Don't measure body temperature after measuring extremely high or low temperature. Put the device for 10 minutes before measuring. ●Try to avoid using the thermometer when drying the hair, drenching water, sweating, and putting on skin cosmetics. Don’t measure the temperature after doing sports, washing and 30 minutes before dinner. - Page 11 Table 5 Guidance and manufacturer ’s declaration-electromagnetic emissions The IT-121 is intended for using in the electromagnetic environment specified below. The customer or the user of theIT-121 should assure that it is used in such an environment. Emissions test Compliance...
- Page 12 Table 7 Guidance and manufacturer ’s declaration-electromagnetic immunity The IT-121 is intended for use in the electromagnetic environment specified below. The customer or the user of the IT-901 should assure that it is used in such an environment. Compliance...
- Page 13 Table 8 Recommended separation distances between portable and mobile RF communications equipment and the IT-121 TheIT-121 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of theIT-121 can help prevent electromagnetic interference by...
-
Page 14: Commitment To Quality And After-Sales Service
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE 1 At 80MHz and 800MHz, the separation distance for the higher frequency range applies.
Need help?
Do you have a question about the IT-121 and is the answer not in the manual?
Questions and answers

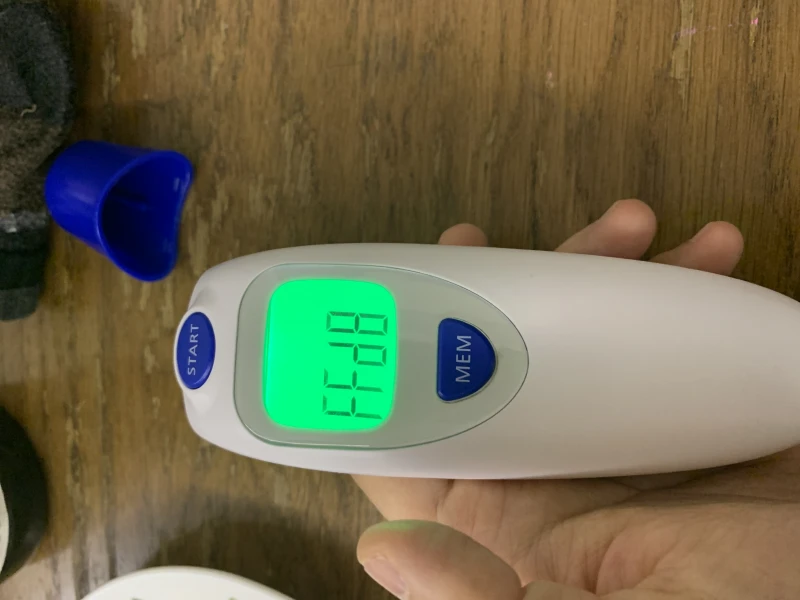

What’s mean by FFd8?
