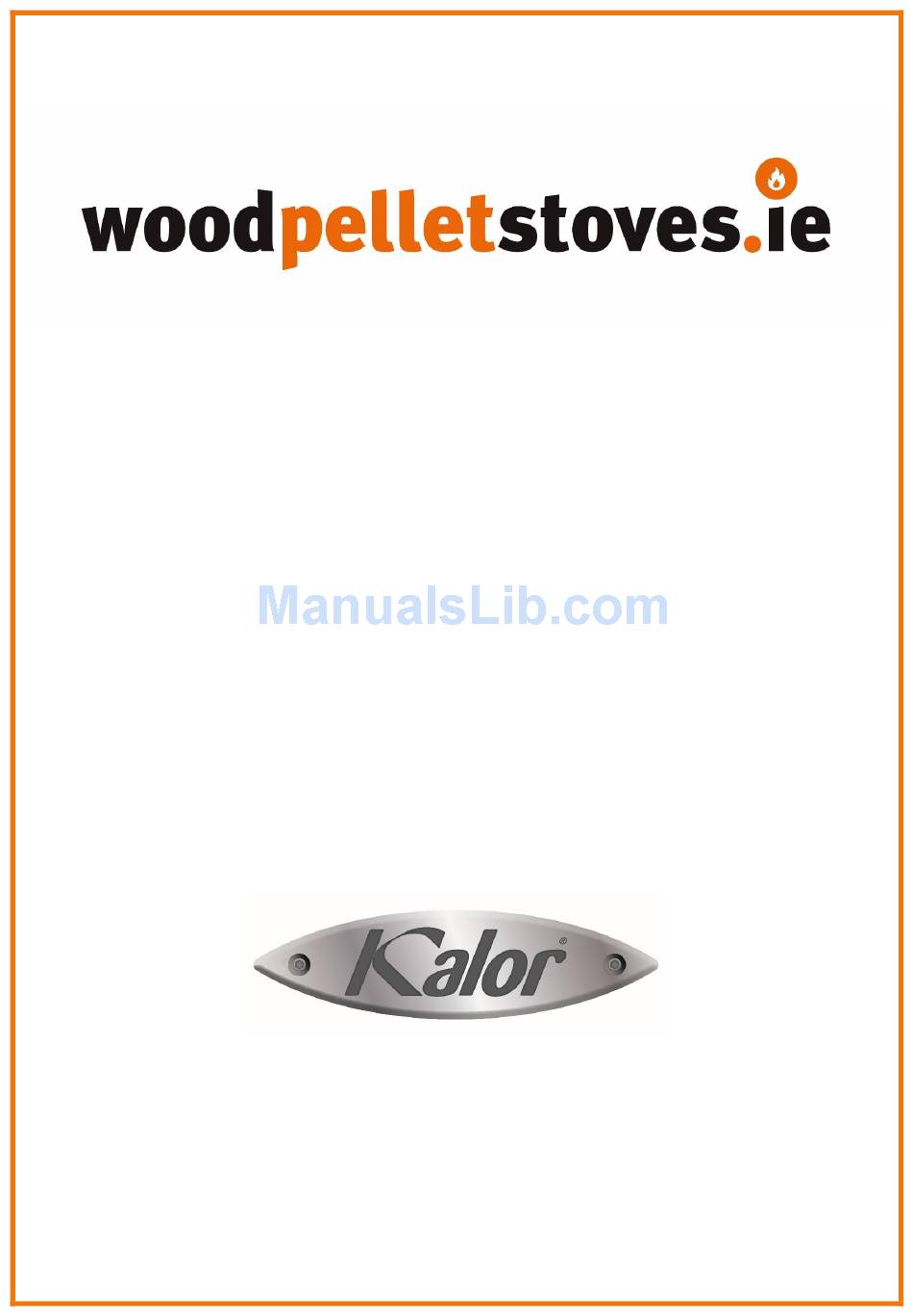

- Page 1 INSTALLER & USER MANUAL Petite 6 Air Stove...
- Page 2 Mignon/Petite Stove Dear Customer, Cod. 001124 We thank you for having chosen one of our products, the fruit of technological experience and of continual research for a superior quality product in terms of safety, dependability, and service. In this manual you will find all the information and useful suggestions to use your product with the maximum safety and efficiency.
- Page 3 Norms and declarations of conformity Our company declares that the stove conforms to the fol- • Installation in non-conformity with the norms in force in lowing norms for the EC European Directive labelling: the country; • 2014/30 (regulation EMCD) following •...
- Page 4 Charge pellet Fuel is loaded from the upper part of the stove by opening Never remove the protection grille in the a door. hopper. When filling, do not let the sack Pour the pellets in the hopper; vacuum contains about 11 of pellets touch any hot surfaces.
-
Page 5: Operating Area
Operating area For proper functioning and a good temperature distribution, the stove shoul be positioned in a location where it is able to take in the air necessary for combustion of the pellet (about 40 m /h must be available), as laid down in the standard governing the installation and in accordance with local national standards. - Page 6 Connection to the flue pipe The flue pipe must have internal dimensions not larger than 20x20 cm, or diameter 20 cm. In the event of larger dimensions, or of the flue pipe being in poor condition ( for example cracks, poor insulation, etc.), it is advisable to fit a stainless steel pipe of suitable diameter inside the flue pipe throughout its length, right up to the top.
- Page 7 Fireplace flue gas Distance to objects Avoid contact with combustible materials (example: It is also recommended to keep the pellets and all wooden beams) and in any case provide for their insulation flammable materials at a suitable distance from the stove. with flame retardant material.
-
Page 8: Control Board
Control board 10. This led is on only while the stove is lighting up in order to indicate that the resistance is warming the air which will AL C AL F fire the pellets. 11. On the display you can read the different working functions of the stove, the room temperature and the set working power. - Page 9 Remote control (if any) Keys and main functions TURBO This key activates or deactivates the function The remote control can be used TURBO. Keep the key pressed for at least two to check the stove. The remote seconds to activate or deactivate this function. control offers some functions which are not available from CLOCK FUNCTION...
- Page 10 Function TURBO Change the temperature You can change the temperature This function has been developed using the keys (1) and in the event you need to heat your room quickly, for example when you (2). The temperature range goes have just switched the stove on. from a min.
- Page 11 Function chrono-thermostat (available only through the remote control) AL C AL F With the function chrono-thermostat, you can schedule up to two automatic switching on and off of the stove per day. If you want to repeat the switching on and off every day, then you need to use the function AUTO too (as explained in the paragraph “Daily repeat AUTO”).
-
Page 12: Display Information
Daily repeat AUTO Always clean the brazier before starting an automatic switching on in order to avoid Using the function AUTO, you any possible missed starts up which would can repeat the single automatic damage your stove and the environment. switching selected every day. -
Page 13: Technical Specification
technical Specification Uscita Fumi Uscita Fumi Aspirazione Aria Aspirazione Aria TOLLERANZE GENERALI DI LAVORAZIONE TOLLERANZE GENERALI DI LAVORAZIONE Materiale Materiale 4705001 4705001 DIMENSIONI LINEARI DIMENSIONI LINEARI GRADO DI GRADO DI Peso Peso PRECISIONE FINO A PRECISIONE 1000 DA FINO A 2000 OLTRE 1000 DA... - Page 14 PARAMETER UNIT OF M. MIGNON6 / PETITE6 Heat input 6,15 Nominal heat output 5,53 Reduced heat output CO concentration at nominal reference (13% O mg/m 185,6 CO concentration at reduced reference (13% O mg/m 633,2 Nominal efficiency Reduced efficiency 93,34 Pellet consumption (min-max) Kg/h 1,28 - 0,54...
- Page 15 Stove start up Remove any components which might Before lighting a small amount of smoke burn from the firebox and from the glass may fill the combustion chamber. (various instructions and adhesive labels). We highly recommend to turn to our Charge pellet Authorized Service...
-
Page 16: Alarm Signals
Alarm signals In the event of a working defect, the system informs the user about the type of failure occurred. The following table summarises the alarms, kind of problem and possible solution: "COOL FIRE": in the event of an even "ALARM SOND FUMI": this alarm very short lack of current, the stove occurs in the event the sensor for smokes... - Page 17 Maintenance and cleaning of the stove Before effecting any maintenance operation or cleaning Ash box on the stove, take the following precautions: Open the door and use a • be sure that all parts of the stove are cold. vacuum to remove all the •...
- Page 18 • remove the electrical feed cable; It is necessary to daily clean the brazier • remove the cap from the T-joint and proceed with the and often clean the ash box. The lack of cleaning of the ducts. If necessary, at least for the first few cleanliness can prevent the starting of the times, call in qualified personnel;...
-
Page 19: Maintenance And Cleaning
Maintenance and cleaning All cleaning of all parts must be carried out with the stove completely cold and unplugged to avoid burns and thermal shock. The stove does not need much maintenance if used with certified quality pellet. The need for maintenance varies depending on the conditions of use (switching on and off repeatedly) and depending on the performance required. -
Page 20: Safety Devices
Safety devices Pressure switch: monitors Reduction motor: Flue gas temperature sensor: depression in the smoke duct. motor stops, the thermostove thermocouple that measures It is designed to shut down continues to function until the the temperature of the fumes the pellet feed screw in the flame goes out for lack of fuel, while keeping the operation or event of an obstructed flue or... -
Page 21: Problems And Solutions
Problems and solutions All repairs must be carried out exclusively by a specialised technician, with the stove completely cold and the electric plug pulled out. Is prohibited from any unauthorized modification to the device and the replacement of parts with other non-original. The operations marked in bold type must be carried out by specialised personnel. - Page 22 1. Fill the tank with pellets 2. Check the electrical wiring and fuses, replace if 1. The tank is empty. the resistance is broken 2. The resistance does not reach 3. Replace the resistance the temperature 4. It is recommended to unplug the power supply 3.
- Page 23 1. Perform periodic cleaning. See paragraph stove installation in the user manual. Check chimney cleaning 2. Decrease in the parameters the charge level of the pellets 3. Clean the brazier after waiting for the total shut- 1. Flue with presence of stretch- down of the stove.
- Page 24 1. Fill the tank with pellets 2. Check plug and presence electricity 3. Fill the tank with pellets 1. The pellet tank is empty 4. Clean the brazier 2. No power 5. Let the stove cool down completely, reset the 3.
- Page 25 NOTES...
