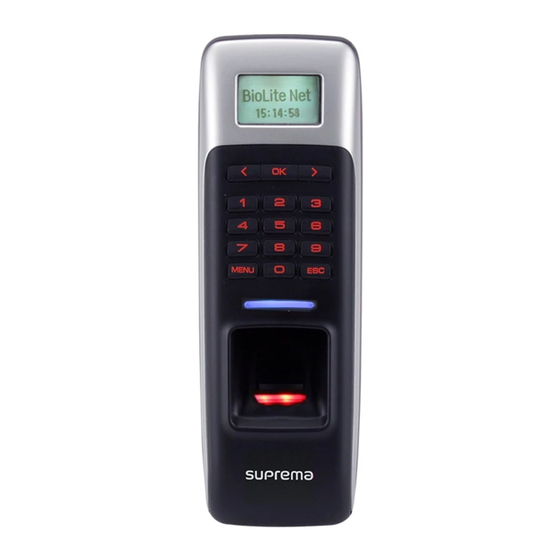

suprema BioLite NET User Manual
Innovative fingerprint terminal
Hide thumbs
Also See for BioLite NET:
- User manual (74 pages) ,
- User manual (23 pages) ,
- Installation manual (19 pages)
Related Manuals for suprema BioLite NET
Summary of Contents for suprema BioLite NET
- Page 1 BioLite NET Innovative Fingerprint Terminal User Guide (ver 1.0) User guide( ver 1.0 )
-
Page 2: Product Contents
12V ±10%, at least 2500mA for BioLite-NET alone installation. Comply with standard IEC/EN 60950-1 (CE Certification). To share the power with other devices, use a power supply with higher current ratings. Shrinking Tube Shrinking Tube 12V power adaptor (optional) ⒸCopyright 2008 Suprema Inc. Before Start... - Page 3 ERX - YELLOW ERX + BLUE Ethernet ETX - ORANGE ETX + PINK SWITCH&WIEGAND WIRE WGND BLACK WDATA 1 WHITE WDATA 0 GREEN Switch & Wiegand GRAY SWIN 1 BROWN GRAY SWIN 0 PURPLE ⒸCopyright 2008 Suprema Inc. Before Start...
-
Page 4: Power Connection
Power Connection Recommended power supply 12V ± 10%, at least 1000mA. To share the power with other devices, use a power supply with higher current ratings. ⒸCopyright 2008 Suprema Inc. -
Page 5: Relay Connection - Fail Safe Lock
Relay Connection – Fail safe lock ⒸCopyright 2008 Suprema Inc. -
Page 6: Relay Connection - Fail Secure Lock
Relay Connection – Fail secure lock ⒸCopyright 2008 Suprema Inc. -
Page 7: Relay Connection - Automatic Door
Relay Connection - Automatic door ⒸCopyright 2008 Suprema Inc. -
Page 8: Door Switch Connection
Door switch connection BioLite NET (1) SW0 Input (PURPLE) (1) SW0 Input (PURPLE) (2) SW0 GND (GRAY) (3) SW1 Input (BROWN) Door Status (4) SW1 GND (GRAY) Request To Exit ⒸCopyright 2008 Suprema Inc. - Page 9 Switch connection (Alarm, Emergency switches) ⒸCopyright 2008 Suprema Inc.
- Page 10 RS485 connection for host communication ⒸCopyright 2008 Suprema Inc. Before Start...
- Page 11 (2) Power GND (Black) (3) Signal GND (White) (3) Signal GND (White) (4) TRX+ (Blue) (4) TRX+ (Blue) (5) TRX- (Yellow) (5) TRX- (Yellow) BioLite NET (Master) BioLite NET (Slave) *Enable termination *Enable termination bl t (optional, see Note1) N t 1)
- Page 12 Installation Reference - Stand alone ⒸCopyright 2008 Suprema Inc.
- Page 13 Installation Reference – Using Secure I/O, 2 door Switch 0 Switch 0 switch switch Internal Secure RS485 Relay 0 Relay Door 1 Door 0 Door 0 Door Door Switch 1 Switch 1 Status Status ⒸCopyright 2008 Suprema Inc.
- Page 14 ⒸCopyright 2008 Suprema Inc.
- Page 15 Using RFID card (13.56MHz = Mifare model only) In case 1:1 mode is set as RF Card If the 1:1 mode is set as Card Only, user can access just by placing the card to BioLite-NET without any additional procedure. ⒸCopyright 2008 Suprema Inc.
- Page 16 Max number of clients that can access the device at the same time. Setting : Use/not use. It sets Use or Not Use of SSL between the TEST UI and BioLite NET It sets Use or Not Use of SSL between the TEST_UI and BioLite-NET.
-
Page 17: Electrical Specification
The input ports are pulled up with 4.7k resistors TTL/Wiegand Output The outputs ports are open drain type, pulled up with 4.7k resistors Pull-up resistance (Ω) 4.7k internally Relay 30V DC Switching capacity (A) 125V AC Switching power (resistive) 37.5VA Switching voltage (V) ⒸCopyright 2008 Suprema Inc. - Page 18 ⒸCopyright 2008 Suprema Inc.
-
Page 19: Troubleshooting
Check whether a device and a bracket is well connected to each other. If not, a tamper switch is activated and the device doesn’t work activated and the device doesn t work. RTC Battery caution. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. ⒸCopyright 2008 Suprema Inc. -
Page 20: Fcc Rules
FCC Rules ⒸCopyright 2008 Suprema Inc. - Page 21 Tel : 82-31-710-2400 Fax : 82-31-783-4506 ⒸCopyright 2008 Suprema Inc.
