Siemens 3VA1 100 A Manual page 230

Accessories
4.4 Plug-in and draw-out technology
Communications interface for draw-out unit
The pre-assembled cable set which functions as the communications interface for the draw-
out unit consists of a pre-assembled cable with a mini USB port at one end and three special
position signaling switches at the other. It is also supplied with another cable with mini USB
connector and tab connector.
Attaching the cable set

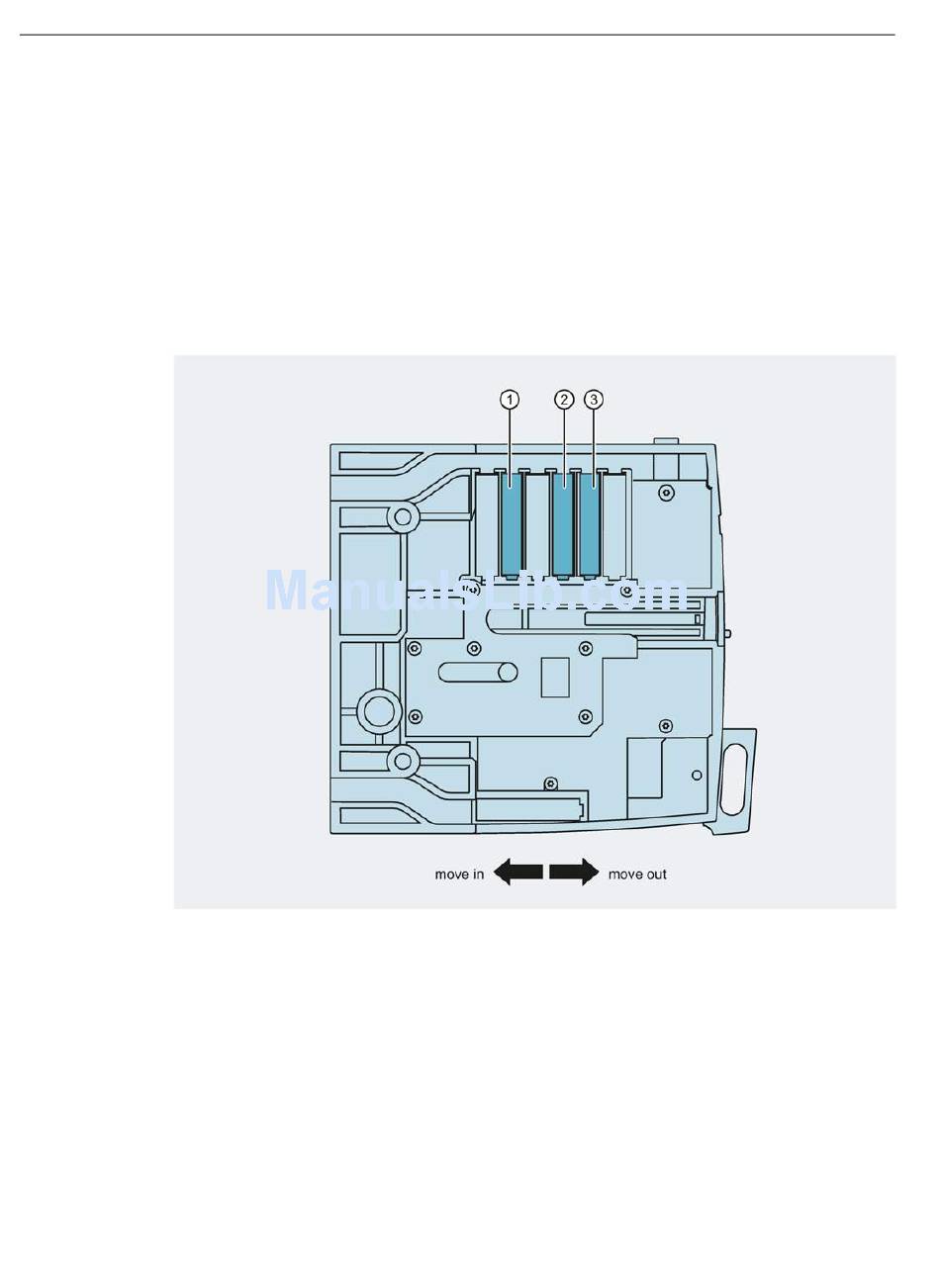

1. Insert the 3 position signaling switches of the cable set in the right-hand side wall
according to the color coding of the cables, see diagram below.
It is irrelevant whether the switches are inserted in slots a or b.
①
②
③
The remaining slots are normally used to install standard position signaling switches.
2. Remove the seal over the opening for the micro USB port on the right-hand side wall.
3. Insert the USB connector attached to the cable set into the micro USB port in the right-
hand side wall.
230
CONNECT: Position signaling switch with green cables
TEST: Position signaling switch with blue cables
DISCON: Position signaling switch with red cables
3VA molded case circuit breakers
Manual, 04/2015, A5E03603177010-02
