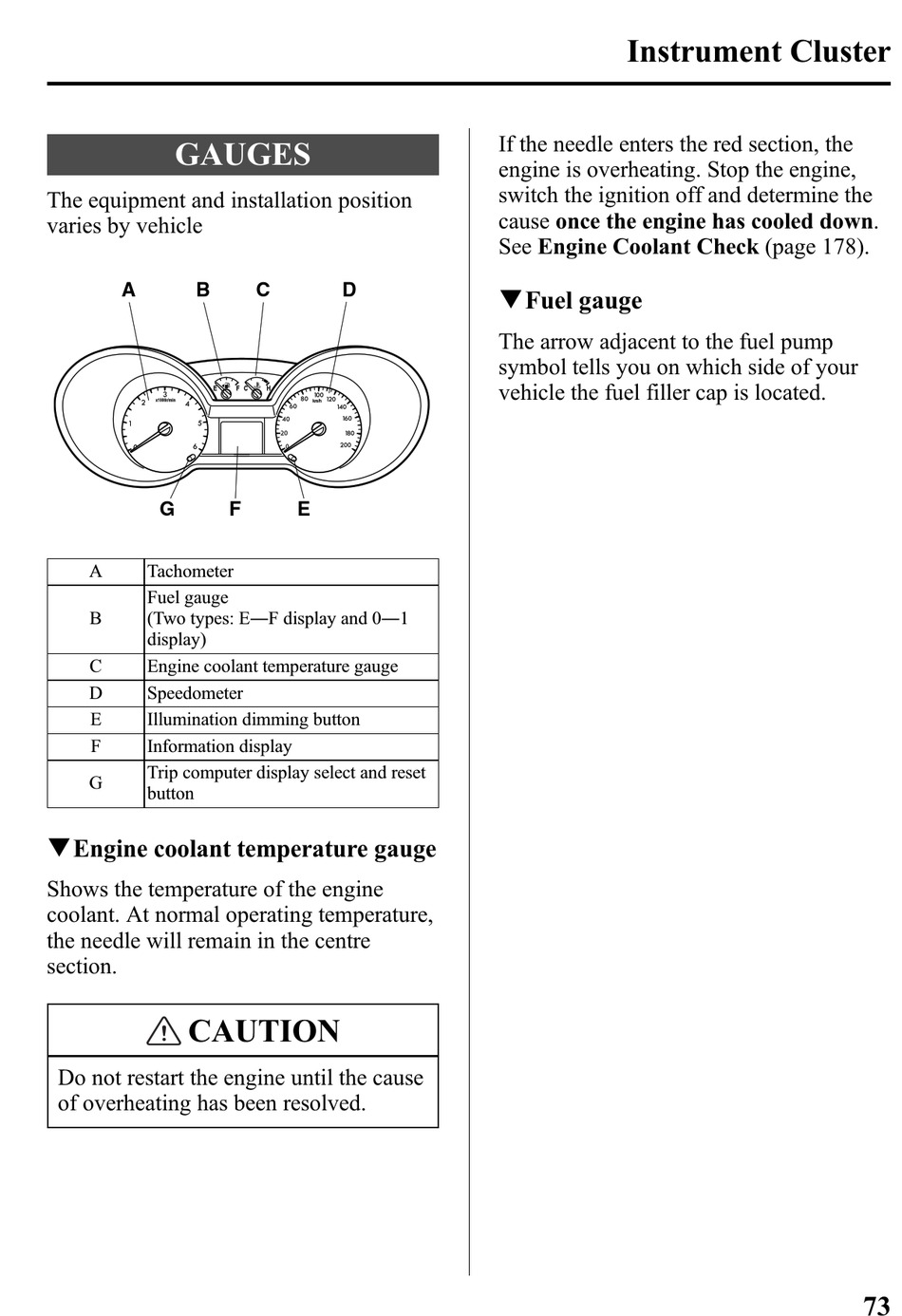

GAUGES

The equipment and installation position
varies by vehicle
A B
G
A Tachometer
Fuel gauge
B (Two types: E F display and 0 1
display)
C Engine coolant temperature gauge
D Speedometer
E Illumination dimming button
F Information display
Trip computer display select and reset
G
button
qEngine coolant temperature gauge
Shows the temperature of the engine
coolant. At normal operating temperature,
the needle will remain in the centre
section.
CAUTION
Do not restart the engine until the cause
of overheating has been resolved.
C D
F E

Instrument Cluster

If the needle enters the red section, the
engine is overheating. Stop the engine,
switch the ignition off and determine the
cause once the engine has cooled down.
See Engine Coolant Check (page 178).
qFuel gauge
The arrow adjacent to the fuel pump
symbol tells you on which side of your
vehicle the fuel filler cap is located.
