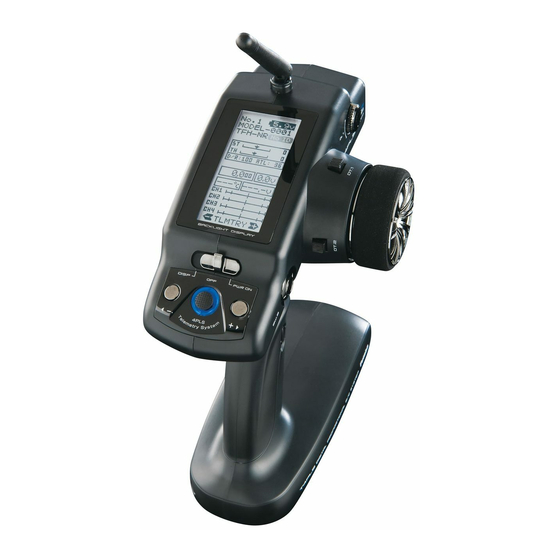

FUTABA 4PLS Manual
FUTABA 4PLS Manual

FUTABA 4PLS Manual

2.4ghz t-fhss radio system
Hide thumbs Also See for 4PLS:

Advertisement

4
(Cycle speed adjustment)
Select setting item "CYCL" by
the (JOG) button up or down
operation. Use the (+) or (-)
bu t t o n t o a d j u s t t h e p u l s e
speed (cycle).
- The smaller the set value, the faster the pulse speed.
5
(Trigger point setup)
Select setting item "TG.P" by
the (JOG) button up or down
operation. Use the (+) or (-) but-
ton to adjust the operation point.
- Sets the throttle trigger position at which the A.B.S. function is performed.
The number is the % display with the full brake position made 100.
6
(Cycle duty ratio setup)
Select setting item "DUTY" bby
the (JOG) button up or down
operation. Use the (+) or (-)
button to adjust the duty ratio.
"LOW" :Brake application time becomes shortest. (Brakes lock with difficulty)
"HIGH" :Brake application time becomes longest (Brakes lock easily)
(Remark) For low grip, set at the LOW side and for high grip, set at the
HIGH side.
7
When ending, return to the MENU1 screen by pressing the
(JOG) button.
Dial / Trim Setting
The brake return amount (AB.P), delay amount (DELY) and cycle (CYCL) can be con-
trolled with digital dial or digital trim, with the function switch dial function. (See
page 65)
Switch setting
Use SW1or SW2 to switch the A.B.S. function ON/OFF.
See the function select switch dial function (See page 65).
4PLS-Eng-08-1-Function-P39-64.indd
61
CYCL
CYCL (Cycle)
TG.P
TG.P
(Trigger point)
Brake side
TGP
Neutral
DUTY
Y: (Brake return time)
X: (Brake
application time)
DUTY (duty): X and Y ratio
A.B.S. Function "TH A.B.S"
Cycle speed (CYCL)
1 ~ 30
Initial value: 10
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).
Trigger point (TG.P)
10 ~ 100
Initial value: 30
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).
Duty ratio (DUTY)
LOW - MID - HIGH
Initial value: MID
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) but-
tons simultaneously (approx.
1 sec).
2013/04/07
61
12:41:03
