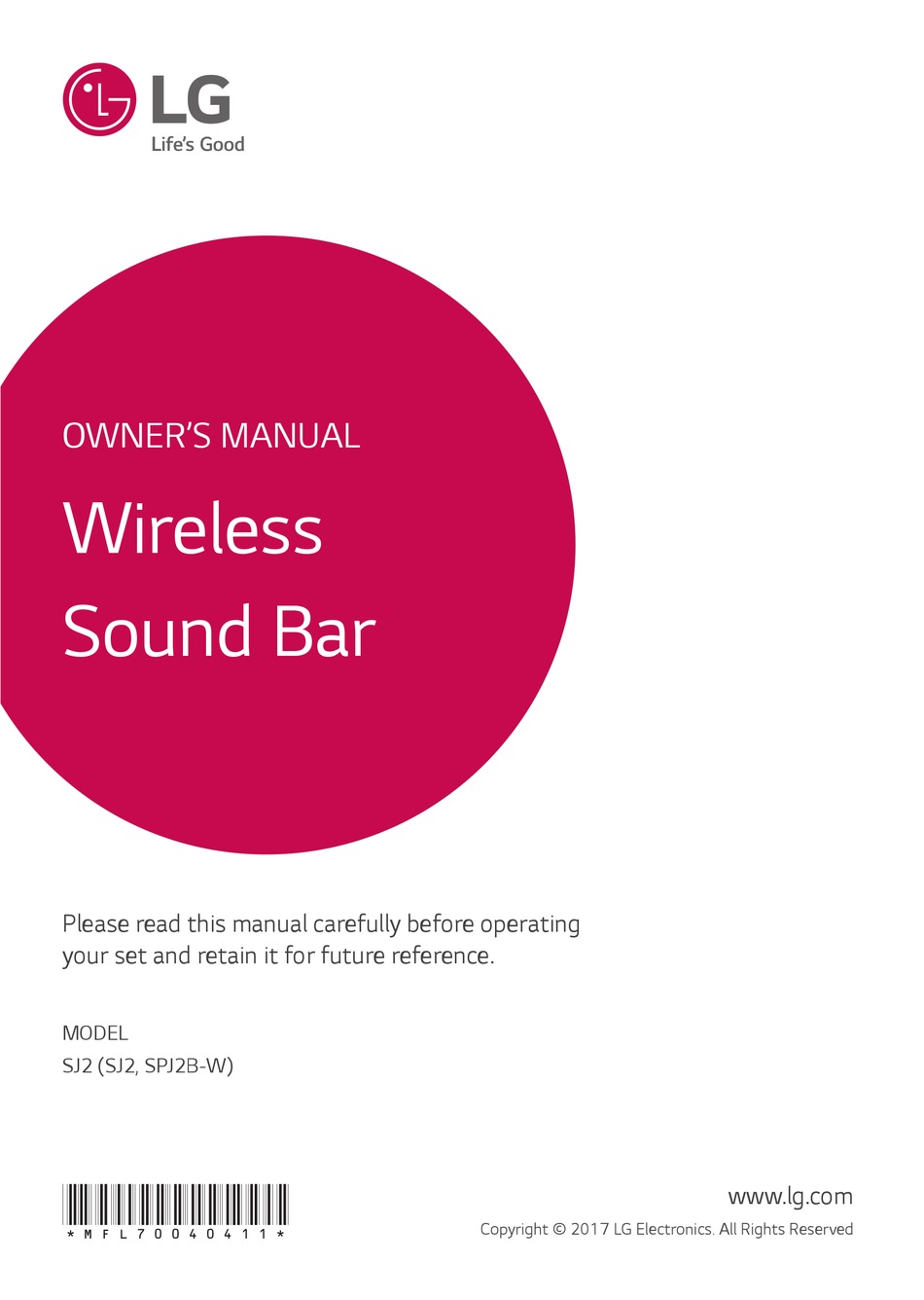

- Page 1 OWNER’S MANUAL Wireless Sound Bar Please read this manual carefully before operating your set and retain it for future reference. MODEL SJ2 (SJ2, SPJ2B-W) www.lg.com *MFL70040411* Copyright © 2017 LG Electronics. All Rights Reserved...
- Page 2 Getting Started Safety Information WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled RISK OF ELECTRIC SHOCK with liquids, such as vases, should be placed on the DO NOT OPEN apparatus.
- Page 3 Getting Started CAUTION concerning the Power Cord This device is equipped with a portable battery or accumulator. The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily Safety way to remove the battery from the accessible.
- Page 4 Getting Started Symbols Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to stand-by. Refers to “ON” (power). Refers to dangerous voltage.
-
Page 5: Table Of Contents
Table of Contents Table of Contents Getting Started Operating Safety Information Basic operations Unique features – USB operation Introduction Other operations – Symbols used in this manual – DRC (Dynamic Range Control) Remote control – Turn off the sound temporarily –... -
Page 6: Getting Started
Getting Started Unique features Introduction Symbols used in this manual Auto power down This unit supports to turn off by itself for saving Note energy consumption. Indicates special notes and operating features. Portable In > Caution Listen to music from your portable device. (MP3 player, Notebook, Smart phone, etc..) Indicates cautions for preventing possible damages from abuse. -
Page 7: Remote Control
Getting Started Remote control • • • • • • • • • • • • • • a • • • • • • • • • • • • • 1 (Power) : Switches the unit ON or OFF F : Selects the function. -
Page 8: Front Panel
Getting Started Front panel A Standby LED (Red) D The buttons are located on the rear. B Function LED (White) C Remote sensor Rear panel A o/p (Volume) : Adjusts volume level (USB) : Connect to a USB device. F (Function) : Selects the function. C PORT.IN (Portable) : Connect to a Portable device. -
Page 9: About Led Condition
Getting Started About LED condition Condition Description OPTICAL LED turns on. OPTICAL function is selected. USB LED turns on. USB function is selected. USB LED blinks. Paused USB playback. Bluetooth LED turns on. Paired with Bluetooth device. Bluetooth LED blinks. Waiting for Bluetooth connection. -
Page 10: Installing The Sound Bar
Getting Started Installing the sound bar You can hear the sound by connecting the unit to the other device : TV, Blu-ray disc player, DVD player, etc. Place the unit in front of the TV and connect it to the device you want. -
Page 11: Mounting The Main Unit On A Wall
Getting Started Mounting the main unit 1. Match the TV’ s BOTTOM EDGE of Wall bracket install guide with the bottom of TV and attach to on a wall the position. You can mount the main unit on a wall. 2. - Page 12 Getting Started 4. Fix the brackets with screws (A) as shown in the 6. Fix the unit with the screws firmly. illustration below. Note Screws (A) and Wall Plugs are not supplied for Note mounting the unit. We recommend the Hilti To detach the unit, perform it in reverse order.
-
Page 13: Connecting
Connecting Wireless subwoofer 1. Press Pairing button on the rear of the wireless subwoofer. connection LED indicator of wireless subwoofer LED Color Status Green Attempting to make (Blink) connection. - The green LED on the rear of the wireless Green The connection is completed. -
Page 14: Connecting To Your Tv
Connecting Connecting to your TV Using an OPTICAL cable 1. Connect the OPT. IN jack on the back of the unit to OPTICAL OUT jack on the TV using an OPTICAL cable. Optical cable 2. Select the input source to Optical by pressing OPTICAL button on the remote control or F button on the unit repeatedly. -
Page 15: Optional Equipment Connection
Connecting Optional equipment PORT. IN connection connection OPT. IN connection Connect an optical output jack of external devices to the OPT. IN jack. Portable cable Optical cable To the digital Listening to music from your portable optical output jack of player external device The unit can be used to play the music from many... -
Page 16: Usb Connection
Connecting USB connection USB device requirement Connect USB memory device to the USB port on the y Devices which require additional program back of the unit. installation connected to a computer, are not supported. y Do not extract the USB device while in operation. y For a large capacity USB, it may take longer than a few minutes to be searched. -
Page 17: Playable File
Connecting Note Playable file y Folders and files on the USB are recognized Sampling Frequency as below. MP3 : within 32 to 48 kHz : Folder WMA : within 32 to 48 kHz : File Bitrate MP3 : within 80 to 320 kbps WMA : within 56 to 128 kbps y Maximum files : Under 999 y Maximum directories : Under 99... -
Page 18: Operating
Depending on the remote control, this USB function is selected. function may not work well. y When you pause the USB playback, USB LED y This function does not operate on LG TV's on the main unit blinks. magic remote control. -
Page 19: Auto Power Down
Operating Note Auto power down y After the unit is turned on by AUTO POWER This unit will turn itself off to save electric function, it will be automatically turned off if consumption if the main unit is not connected to there is no signal for a certain period of time an external device and has not been used for 15 from the external device. -
Page 20: Auto Function Change
Operating Auto function change This unit recognizes input signals such as Optical, Bluetooth and Portable and then changes suitable function automatically. When optical signal comes in When you turn on the external device connected to this unit by an optical cable, this unit change the function to optical. -
Page 21: Using Bluetooth® Technology
Bluetooth device display y Available Devices : Smart phone, MP3 player, depending on the type of Bluetooth device. Notebook, etc.. Your unit appears as “LG SJ2 (XX)” . y Version : 4.0 Note y Codec : SBC... - Page 22 Operating Note BLUETOOTH connection lock (BT lock) y When using Bluetooth technology, you have You can limit Bluetooth connection to only to make a connection between the unit and Bluetooth function to prevent unintended the Bluetooth device as close as possible and Bluetooth connection.
-
Page 23: Sound Adjustment
Operating Sound adjustment Adjust the woofer level settings You can adjust the sound level of woofer by pressing WOOFER LEVEL o / p button. Setting the surround mode Note When the woofer level reaches maximum This system has two pre-set surround sound fields. or minimum, standby LED (Red) on the main You can select a desired sound mode by using each unit turns on for 2 seconds. -
Page 24: Troubleshooting
Troubleshooting Troubleshooting General PROBLEM CAUSE & CORRECTION y Turn off the power of this unit and the connected external device (TV, Woofer, DVD-player, Amplifier, etc.) and turn them on again. The unit does not y Disconnect the power cord of this unit and the connected external device work properly. -
Page 25: Notes To Use Wireless
Troubleshooting PROBLEM CAUSE & CORRECTION Check the details below and adjust the unit according to them. y Switch [ON] state of DRC function to [OFF] by using remote controller. y With the sound bar connected with TV, change the AUDIO DIGITAL OUT setting on When you feel the TV Setup Menu from [PCM] to [AUTO] or [BITSTREAM]. -
Page 26: Trademarks And Licenses
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. -
Page 27: Specifications
Appendix Specifications General Power requirements Refer to the main label. Power consumption Refer to the main label. Approx. 660 mm x 56 mm x 99 mm Dimensions (W x H x D) (26 inch x 2.2 inch x 3.9 inch) with foot Operating temperature 5 °C to 35 °C Operating humidity... -
Page 28: Maintenance
Appendix Maintenance Handling the unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean y Do not use volatile liquids such as insecticide spray near the unit.
