Page 1: User Guide
FINAL FOR PRINT NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 1 Friday, August 4, 2017 8:10 PM USER GUIDE 4.1 Cu. Ft. Top-Load Washer NS-TWM41WH8A Before using your new product, please read these instructions to prevent any damage. -
Page 2: Table Of Contents
ONE-YEAR LIMITED WARRANTY ................31 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-TWM41WH8A represents the state of the art in top-load washing machine technology and is designed for reliable and trouble-free performance. -
Page 3: 4.1 Cu. Ft. Top-Load Washer
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 3 Friday, August 4, 2017 8:10 PM SAFETY and PRECAUTIONS 4.1 Cu. Ft. Top-Load Washer Important Safety State of California Proposition 65 Warnings Instructions The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of SAVE THESE California to publish a list of substances known to the State of California to cause cancer, birth... -
Page 4: Safety And Precautions
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 4 Friday, August 4, 2017 8:10 PM SAFETY and PRECAUTIONS 12 Hydrogen gas is explosive. If the hot water 4 Plug the power plug into the wall socket firmly. system has not been used for two weeks or Do not use a damaged power plug, or loose wall more, before using a washer, turn on all hot socket, because this may result in electric shock... - Page 5 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 5 Friday, August 4, 2017 8:10 PM SAFETY and PRECAUTIONS 4.1 Cu. Ft. Top-Load Washer 5 Make sure to remove the packaging (sponge, 19 Disconnect this appliance from the power styrofoam) attached to the bottom of the supply before attempting any user washer before using it.
- Page 6 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 6 Friday, August 4, 2017 8:10 PM SAFETY and PRECAUTIONS 35 Do not spray volatile material such as insecticide 47 Do not use hot water from water onto the surface of the appliance. As well as cooling/heating devices. This may result in being harmful to humans, it may also result in problems with the washer.
-
Page 7: Features
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 7 Friday, August 4, 2017 8:10 PM 4.1 Cu. Ft. Top-Load Washer Features Package contents Make sure that the following items came with your washer: Clamp Hose Drain hose holder User Guide www.insigniaproducts.com... -
Page 8: Main Components
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 8 Friday, August 4, 2017 8:10 PM NS-TWM41WH8A Main components Faucets and water inlet hoses (not included) Drain hose and holder Power cord Control panel Water inlet Top lid valves (on the back) Attach hose clamps to predrilled holes... -
Page 9: Control Panel
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 9 Friday, August 4, 2017 8:10 PM 4.1 Cu. Ft. Top-Load Washer Control panel ITEM DESCRIPTION Press to turn on your washer. Press again to turn off your washer. If you leave your washer on and do not press the /Start Pause button within 10 minutes, your washer automatically /Power button turns off. -
Page 10: Unpacking Your Washer
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 10 Friday, August 4, 2017 8:10 PM NS-TWM41WH8A Unpacking your washer Warning • Packing materials can be dangerous to children. Keep all packing materials (plastic bags, polystyrene, and so on) well out of the reach of children. • Do not operate your washer on the foam base cushion. Doing so will result in serious vibration, which could cause equipment damage or result in physical injury. -
Page 11: Choosing A Location
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 11 Friday, August 4, 2017 8:10 PM 4.1 Cu. Ft. Top-Load Washer Choosing a location Warning • Do not install your washer in areas where water may freeze, because your washer always retains some water in its water valve, pump, and hose areas. -
Page 12: Washer Dimensions And Installation Measurements
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 12 Friday, August 4, 2017 8:10 PM NS-TWM41WH8A Washer dimensions and installation measurements 27 in. 68.6 cm 28.9 in. 73.5 cm www.insigniaproducts.com... - Page 13 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 13 Friday, August 4, 2017 8:10 PM 4.1 Cu. Ft. Top-Load Washer If you install your washer in an alcove or closet, the front of the closet must have two unobstructed air openings for a combined minimum total area of 72 sq.in. (465 sq.cm) with a minimum clearance of 3 in. (7.6 mm) at the top and bottom.
-
Page 14: Electrical Requirements
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 14 Friday, August 4, 2017 8:10 PM NS-TWM41WH8A Installing in an alcove or closet Minimum clearances between your washer and adjacent walls or other surfaces are: • Either side: 1 in. (2.5 cm) • Rear: 6 in. (15.2 cm) •... -
Page 15: Water Requirements
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 15 Friday, August 4, 2017 8:10 PM 4.1 Cu. Ft. Top-Load Washer The outlet must be correctly installed and grounded in accordance with all local codes and ordinances. Warning • You are responsible for providing adequate electrical services for your washer. -
Page 16: Installing Your Washer
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 16 Friday, August 4, 2017 8:10 PM NS-TWM41WH8A INSTALLATION INSTRUCTIONS Installing your washer Tools you will need Phillips Flat-head Level screwdriver Wrench Pliers screwdriver Washer inlet hoses Step-by-Step instructions Step 1: Select a location Before you install your washer, make sure that the location: •... - Page 17 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 17 Friday, August 4, 2017 8:10 PM INSTALLATION INSTRUCTIONS 4.1 Cu. Ft. Top-Load Washer 2 Tighten the hose and faucet fittings by hand until they are snug, then tighten them an additional two-thirds of a turn with pliers or a wrench. Pull the water supply hoses downwards to make sure that they are connected securely.
- Page 18 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 18 Friday, August 4, 2017 8:10 PM NS-TWM41WH8A INSTALLATION INSTRUCTIONS 4 Connect the ends of the water supply hoses to the water supply intake connections at the top of the washer. Make sure that the rubber washers are in place. The water supply hose connected to the hot faucet must be connected to the hot water supply intake and the water hose connected to the cold faucet must be connected to the cold water supply intake.
- Page 19 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 19 Friday, August 4, 2017 8:10 PM INSTALLATION INSTRUCTIONS 4.1 Cu. Ft. Top-Load Washer Step 3: Connect the drain hose Caution • Failure to slide the drain hose completely over the washer’s drain pipe may result in water leakage. •...
- Page 20 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 20 Friday, August 4, 2017 8:10 PM NS-TWM41WH8A INSTALLATION INSTRUCTIONS 4 Fasten the drain hose to the washer frame with the hose clamps (2) provided, using a Phillips screwdriver. 5 Position the other end of the drain hose (the loose end) in one of the following ways:...
- Page 21 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 21 Friday, August 4, 2017 8:10 PM INSTALLATION INSTRUCTIONS 4.1 Cu. Ft. Top-Load Washer • In a laundry tub - The laundry tub must be no shorter than 39-in. (100 cm) and no higher than 96-in (245 cm) maximum.
- Page 22 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 22 Friday, August 4, 2017 8:10 PM NS-TWM41WH8A INSTALLATION INSTRUCTIONS 3 If your washer is not level, carefully tilt your washer just enough to adjust the leveling feet on the bottom front of your washer. Extend the feet only as much as is necessary. If the feet are extended too much, your washer may vibrate.
-
Page 23: Using Your Washer
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 23 Friday, August 4, 2017 8:10 PM 4.1 Cu. Ft. Top-Load Washer OPERATING INSTRUCTIONS Using your washer Washing a load of laundry WARNING – To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. - Page 24 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 24 Friday, August 4, 2017 8:10 PM OPERATING INSTRUCTIONS NS-TWM41WH8A Loading the liquid or powder detergent compartment 1 Pour the recommended amount of laundry detergent directly into the detergent compartment before starting your washer. 2 If you are using color-safe bleach, add it with the detergent to the detergent compartment.
- Page 25 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 25 Friday, August 4, 2017 8:10 PM 4.1 Cu. Ft. Top-Load Washer OPERATING INSTRUCTIONS Step 5: (Optional) Set a delayed start time You can program a wash cycle, then set a time when you want a wash cycle to begin. 1 Press the Delay button to turn on the delay start time function.
-
Page 26: Setting The Child Lock
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 26 Friday, August 4, 2017 8:10 PM OPERATING INSTRUCTIONS NS-TWM41WH8A 2 If you need to pause the cycle (for example to add or remove items or adjust the load), press the /Start Pause button, then open the lid. Your washer stops. When you are ready to resume washing, close the door, then press /Start Pause button. - Page 27 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 27 Friday, August 4, 2017 8:10 PM 4.1 Cu. Ft. Top-Load Washer OPERATING INSTRUCTIONS Extra Fabric Water Cycle Fabric type Soil level Temp Delay Soak rinse softener Plus Extra Heavy Heavy Warm • • • • • Whites White fabrics Medium Eco Warm...
-
Page 28: Maintaining Your Washer
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 28 Friday, August 4, 2017 8:10 PM NS-TWM41WH8A USER MAINTENANCE INSTRUCTIONS Extra Fabric Water Cycle Fabric type Soil level Temp Delay Soak rinse softener Plus Extra Heavy Heavy Warm • • • • • Lightly soiled and Quick Wash... -
Page 29: Troubleshooting
NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 29 Friday, August 4, 2017 8:10 PM 4.1 Cu. Ft. Top-Load Washer USER MAINTENANCE INSTRUCTIONS Troubleshooting Caution Do not try to repair your washer yourself. Doing so invalidates the warranty. PROBLEM SOLUTION Washer does not • Make sure that your washer is plugged in. start •... -
Page 30: Understanding The Error Codes
ERROR POSSIBLE CAUSE SOLUTIONS CODE Your washer is equipped with an automatic error-monitoring system to detect and diagnose The PCB failed. • Contact Insignia problems at an early stage. Customer Care. ERROR The lid has been POSSIBLE CAUSE SOLUTIONS • Press the... -
Page 31: One-Year Limited Warranty
Insignia and are not returned to you. If service of Products or INSIGNIA is a trademark of Best Buy and its affiliated companies. parts are required after the Warranty Period expires, you must pay all labor and parts charges. - Page 32 NS-TWM41WH8A_17-0655_MAN_V2_EN.fm Page 32 Friday, August 4, 2017 8:10 PM www.insigniaproducts.com 1-877-467-4289 (U.S. and Canada) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V2 ENGLISH 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
Need help?
Do you have a question about the NS-TWM41WH8A and is the answer not in the manual?
Questions and answers
I'm trying to fine a drain hose isignia washing machine model #NS- TWM41WH8A
How do you use soak cycles
How do you use cycling
To use the soak cycle on the Insignia NS-TWM41WH8A washing machine, select a cycle that includes the "Soak" option. The available cycles for different fabric types, soil levels, and temperatures indicate that the soak function can be enabled as an optional setting. You can choose the desired fabric type, soil level, and temperature, then enable the soak option if needed.
This answer is automatically generated
How do use soak cycles
To use the soak cycle on the Insignia NS-TWM41WH8A washing machine, select a wash cycle that supports the soak option. The available cycles and fabric types include Extra Heavy, Heavy, Medium, Light, and Extra Light soil levels with corresponding temperature settings. If the cycle allows, you can enable the soak option along with other settings like delay, extra rinse, fabric softener, and water plus.
This answer is automatically generated

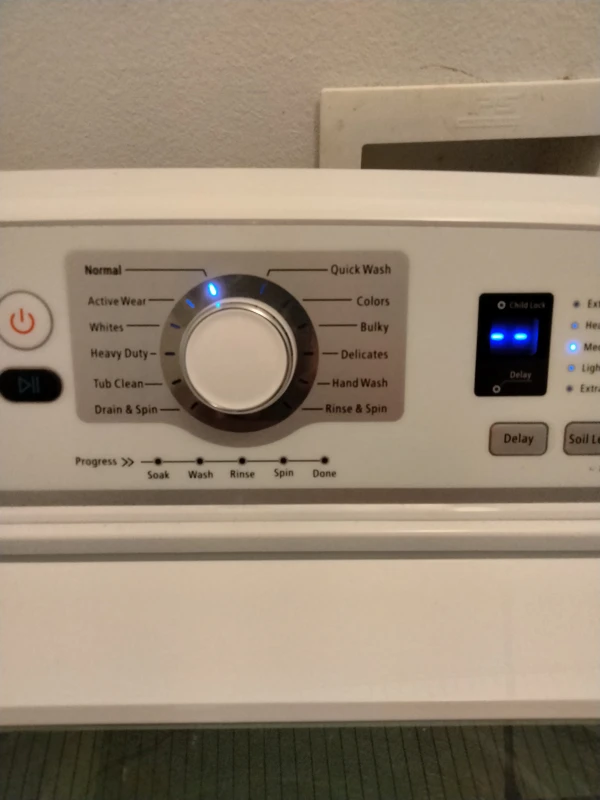

Washer will only fill on QUICK WASH setting
Does this machine have any type of filter on the water being pumped out after a wash cycle?
Yes, the Insignia NS-TWM41WH8A washing machine has a drain pump filter that should be checked and cleaned to ensure proper drainage.
This answer is automatically generated
How much detergent can I place in the washer? For several wash loads? How much?
